Repairing Side Member Reinforcement

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Position repair boot -1-  centrally over the damaged area and secure.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

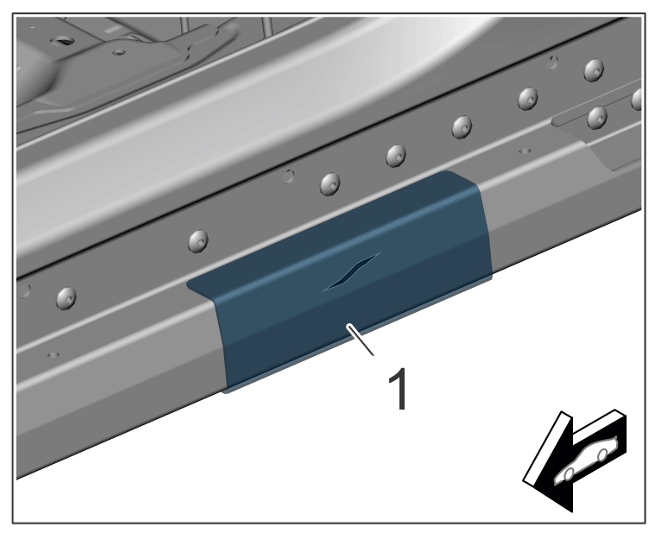

   Repair boot

2. Drill holes for blind rivets through both components using a > diameter 6.6 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

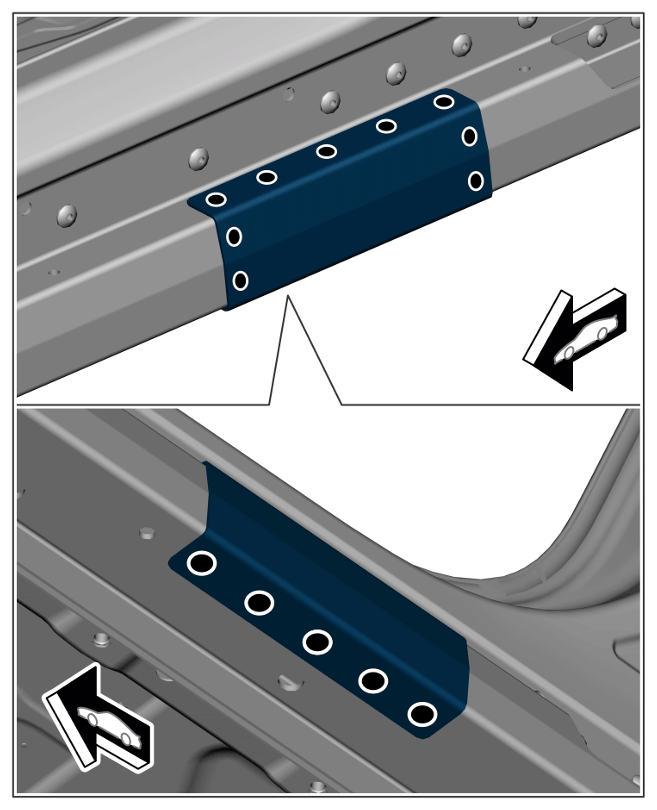

   Holes

3. Remove repair boot.
4. Prepare marked area for the side member reinforcement for bonding and riveting.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

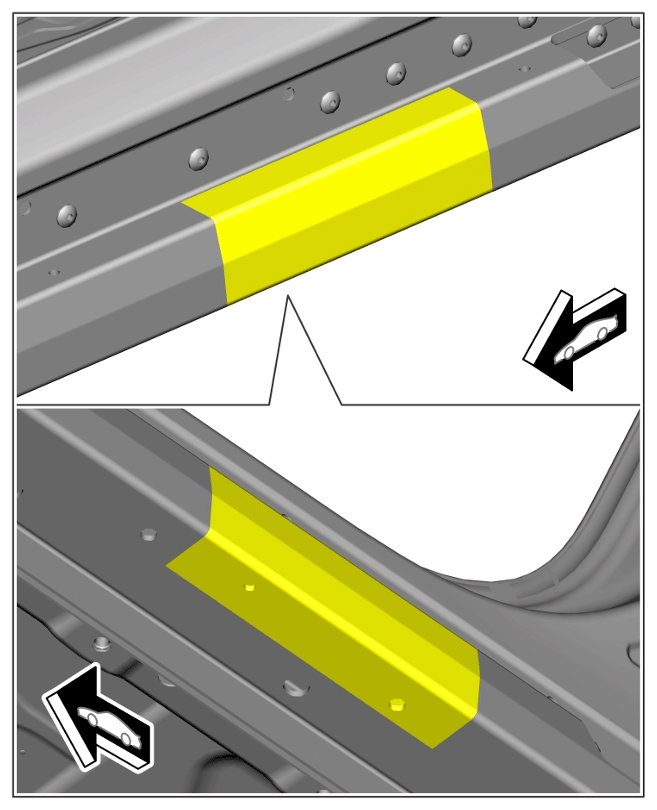

   Bonding area

5. Prepare marked area for the repair boot for bonding and riveting.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

   Information

   • Apply adhesive evenly over the entire bonding surface.
6. Apply adhesive to marked area for the side member reinforcement.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

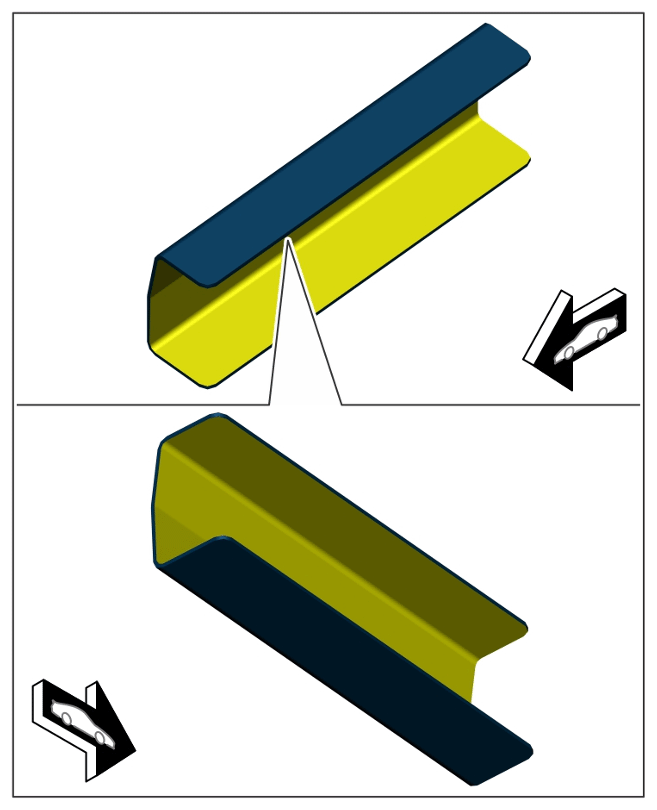

   Bonding area

   Information

   • Apply adhesive evenly over the entire bonding surface.
7. Apply adhesive on the marked area for the repair boot.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

   1. 7.1  Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

8. Rivet in repair boot.

   > BLIND RIVET 999.190.227.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivets.
