Removing Inner Side Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

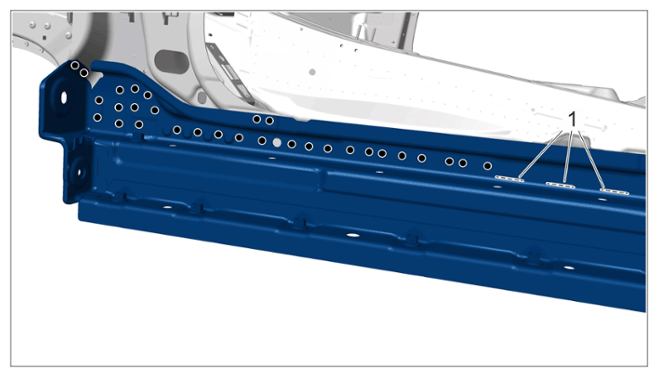

  1. Loosen inner side member.
    G15561634Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds

    1. 1.1  Drill out spotwelds using > VAS 882 001 - Spot-weld remover  .
    2. 1.2  Grind down welded seams -1-  .

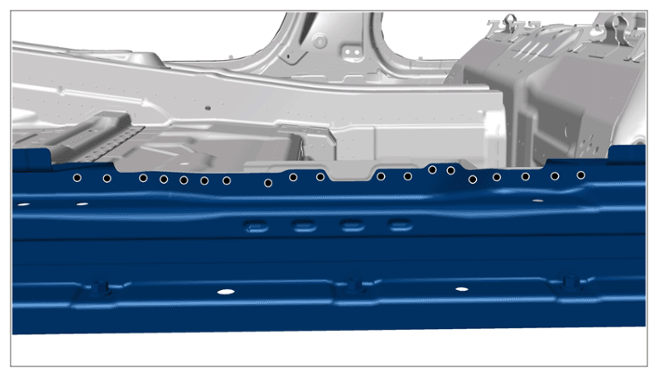

  2. Drill out spotwelds using > VAS 882 001 - Spot-weld remover  .
    G15561635Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds

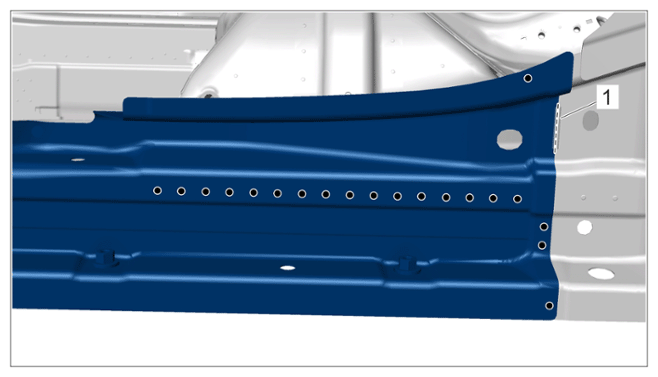

  3. Loosen inner side member.
    G15561636Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds

    1. 3.1  Drill out spotwelds using > VAS 882 001 - Spot-weld remover  .
    2. 3.2  Grind down welded seam -1-  .

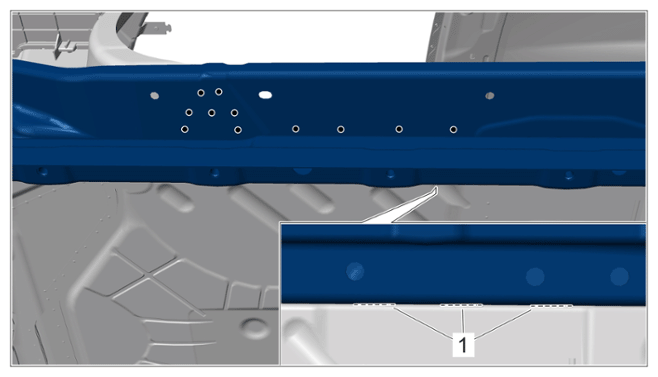

  4. Loosen inner side member.
    G15561637Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds

    1. 4.1  Drill out spotwelds using > VAS 882 001 - Spot-weld remover  .
    2. 4.2  Grind down welded seams -1-  .

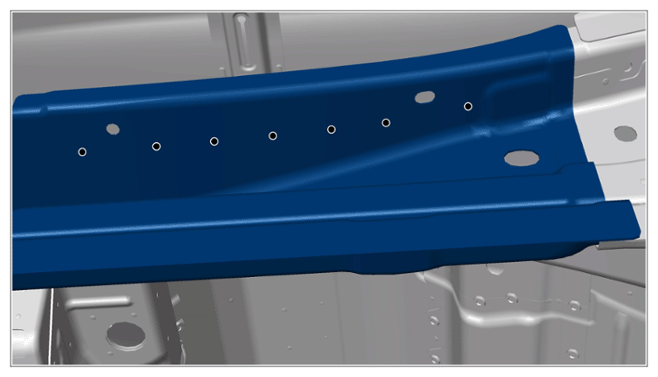

  5. Drill out spotwelds using > VAS 882 001 - Spot-weld remover  .
    G15561638Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds

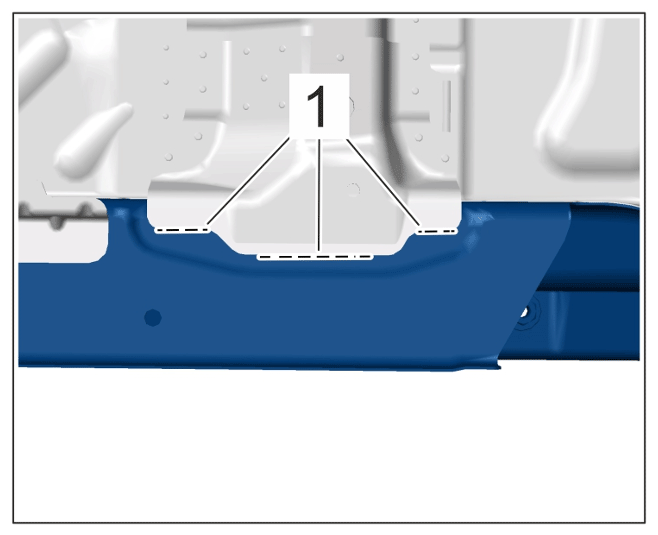

  6. Grind down welded seams -1-  .
    G15561639Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Welded seams

  7. Remove inner side member.
