Preparing Inner Side Member For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Fit in inner side member and secure it to the body.
Drill bore holes for blind rivets -B- through both sheet metal plates using > diameter 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

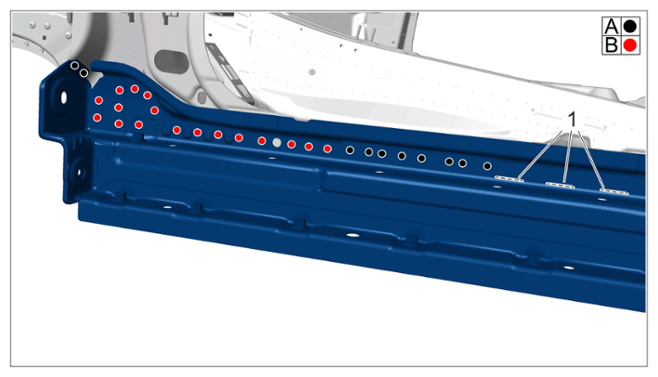

Blind rivets
Remove inner side member.
Prepare inner side member for joining.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

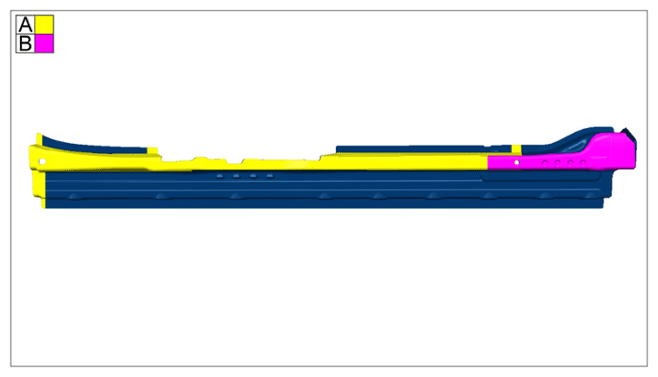

Joint areas
1. 4.1 Prepare inner side member in areas -A- for resistance spot-welding.
2. 4.2 Prepare inner side member in area -B- for bonding and riveting.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
