Installing Inner Side Member
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
- Fit inner side member and check that it fits perfectly.
Information
- Apply adhesive evenly over the entire bonding surface.

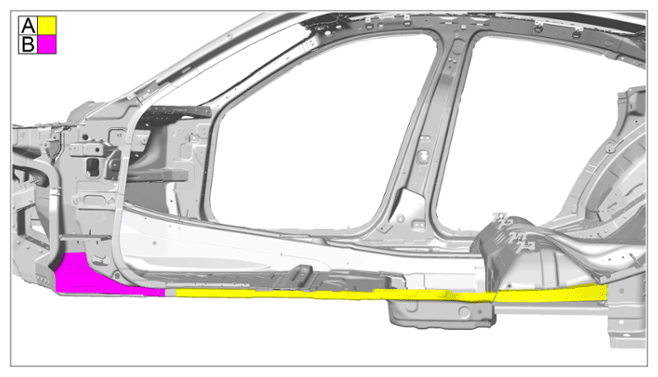

- Apply adhesive on bonding areas -B-
of the body.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
> Application depth 3 mm
Joint areas
Information
- Apply adhesive evenly over the entire bonding surface.

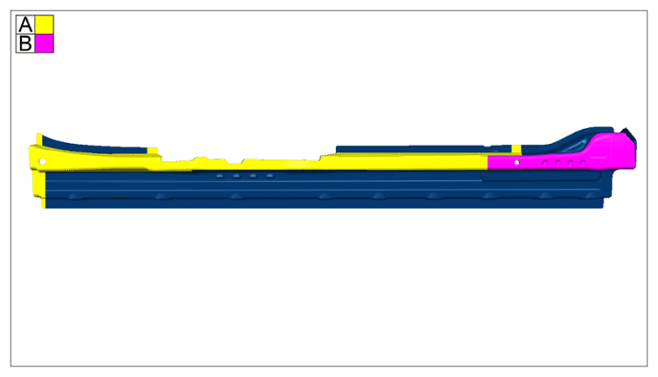

- Apply adhesive in areas -B-
on the inner side member.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
> Application depth 0.5 mm
Joint areas
- 3.1
Also apply a bead of adhesive all around the bonding surface -B-
.
> Application depth 3 mm
- 3.1
Also apply a bead of adhesive all around the bonding surface -B-
.
- Secure inner side member.

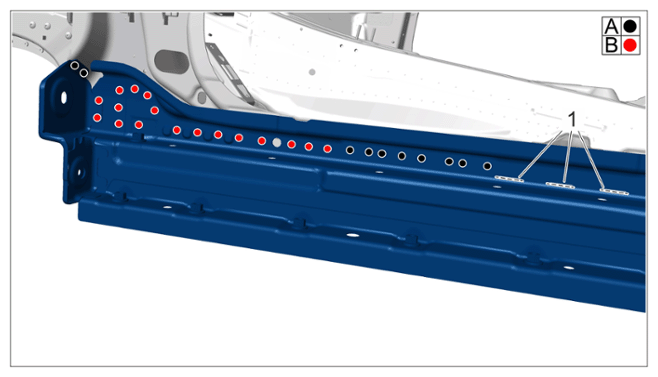

Blind rivets
- 4.1 Resistance spot-weld the inner side member in areas -A- .
- 4.2
Rivet in inner side member in areas -B-
.
> BLIND RIVET 999.190.229.01
- 4.3 Apply a full steel weld in areas -1- .
- Secure inner side member.

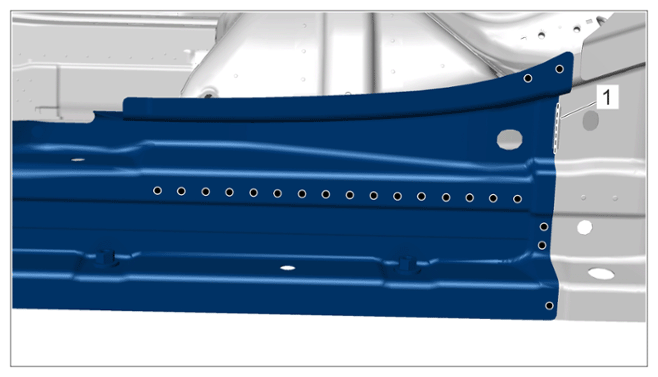

Steel welding
- 5.1 Resistance spot-weld the inner side member.
- 5.2 Apply a full steel weld in areas -1- .
- Secure inner side member.

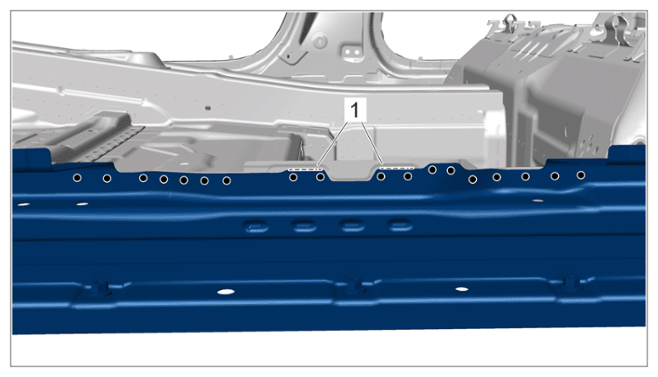

Spotwelds
- 6.1 Resistance spot-weld the inner side member.
- 6.2 Apply a full steel weld in areas -1- .
- Secure inner side member.

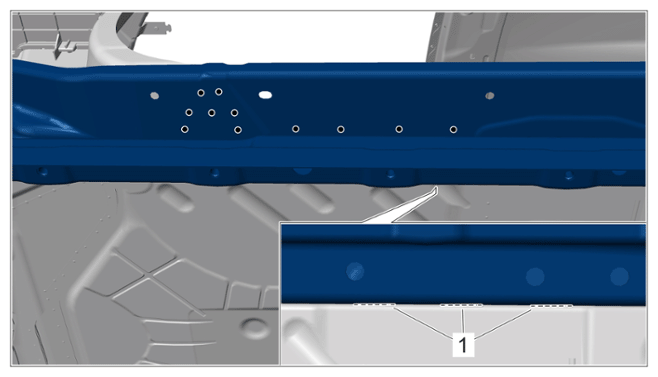

Steel welding
- 7.1 Resistance spot-weld the inner side member.
- 7.2 Apply a full steel weld in area -1- .

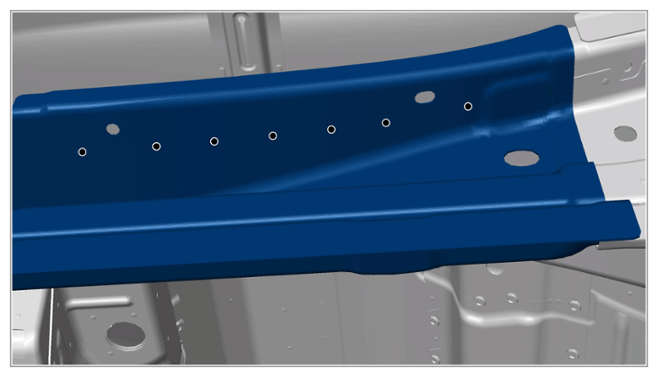

- Resistance spot-weld the inner side member.
Spotwelds
