Removing Outer Side Member

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

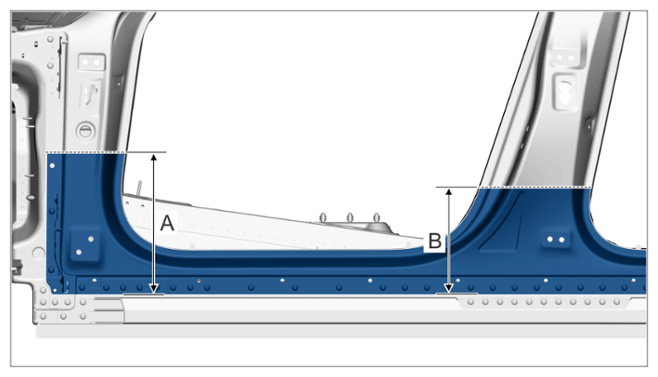

Mark separation points A, B, C  in accordance with the new part. Make sure to leave an overlap of approx. 30 mm with respect to the body.

1. Mark and make cuts -A -  and -B -  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Separation points

   A	> distance 320 mm
   B	> distance 250 mm

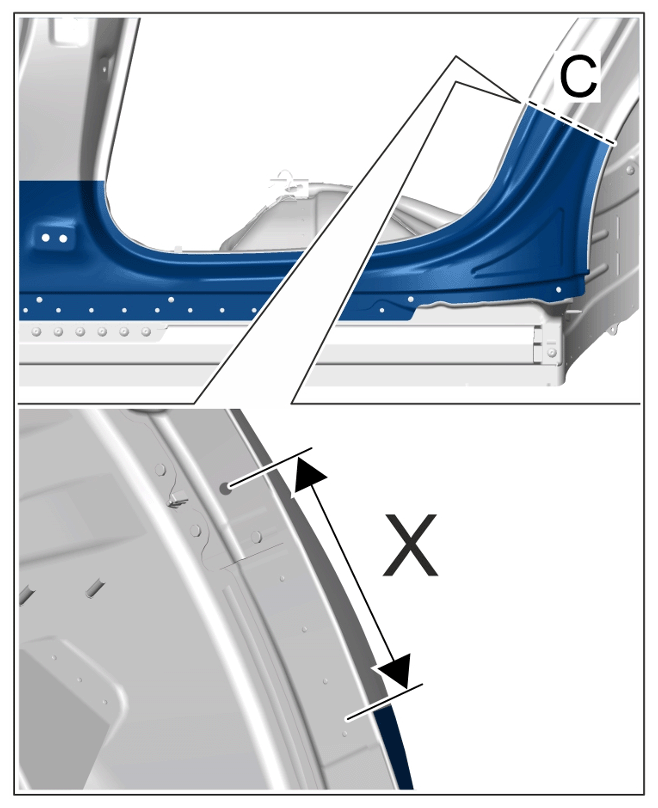

2. Mark and make cut -C -  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cut

   X	> Distance 175 mm

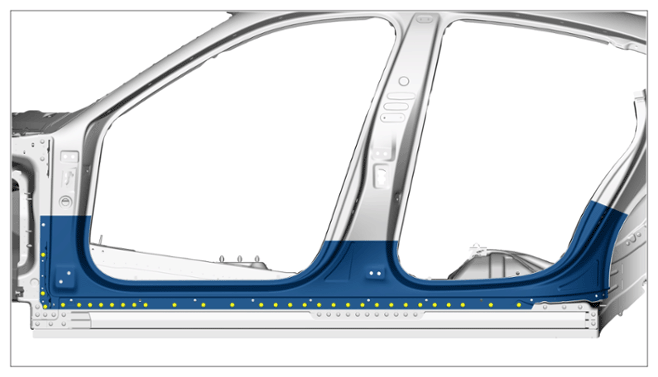

3. Unscrew self-tapping screws.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Self-tapping screws

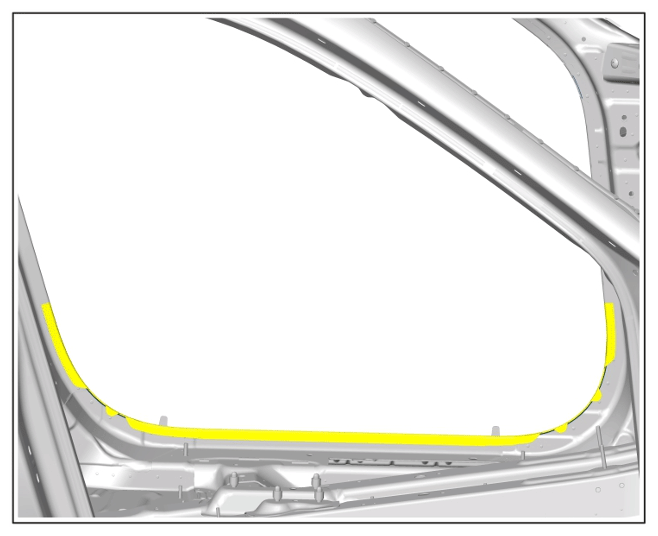

4. Loosen folded edges.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Folded edges in front door aperture

   1. 4.1  Heat bonding areas using > V.A.G 1416 - hot-air blower  .
   2. 4.2  Bend up folded edges in the front door aperture using > VAS 6635 - crimping pliers set, 4-piece  .

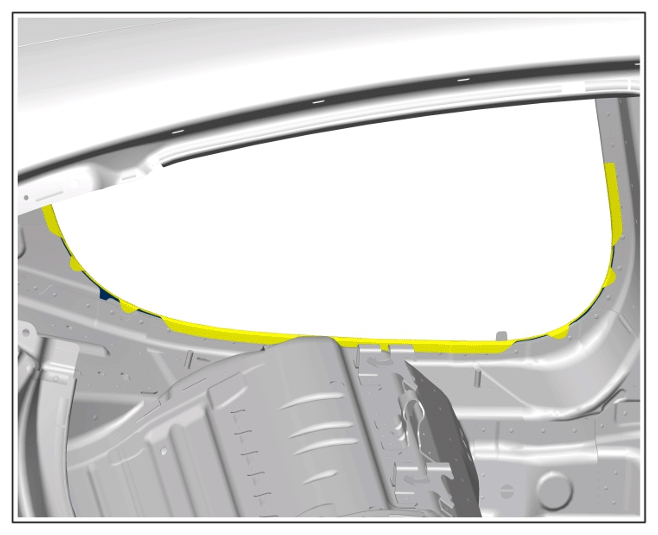

5. Loosen folded edges.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Folded edges in rear door aperture

   1. 5.1  Heat bonding areas using > V.A.G 1416 - hot-air blower  .
   2. 5.2  Bend up folded edges in the rear door aperture using > VAS 6635 - crimping pliers set, 4-piece  .

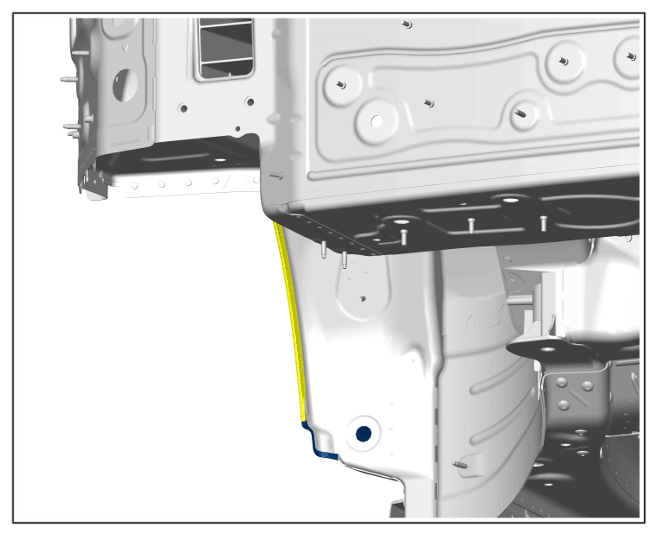

6. Loosen folded edge.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Folded edge in wheel housing

   1. 6.1  Heat bonding areas using > V.A.G 1416 - hot-air blower  .
   2. 6.2  Bend up folded edge on rear wheel housing using > VAS 6635 - crimping pliers set, 4-piece  .

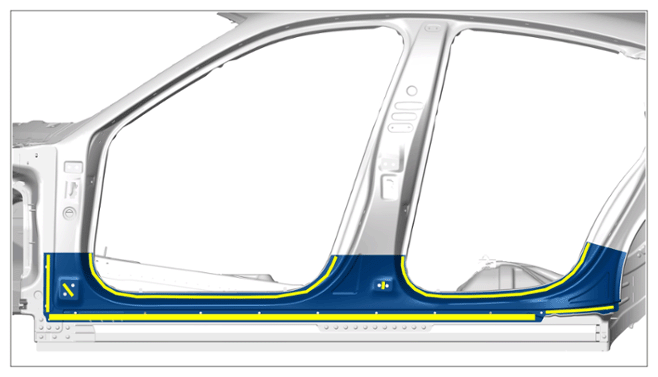

7. Heat bonding areas using > V.A.G 1416 - hot-air blower  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

8. Remove outer side member.
