Preparing Connection Areas Of Body For Installing Outer Side Member

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Align the sealing surfaces and connections of the body.
De-burr connection areas and prepare for joining.

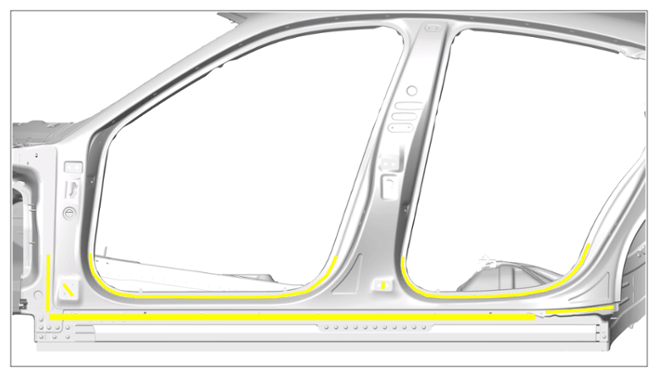

Prepare marked areas for bonding.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas

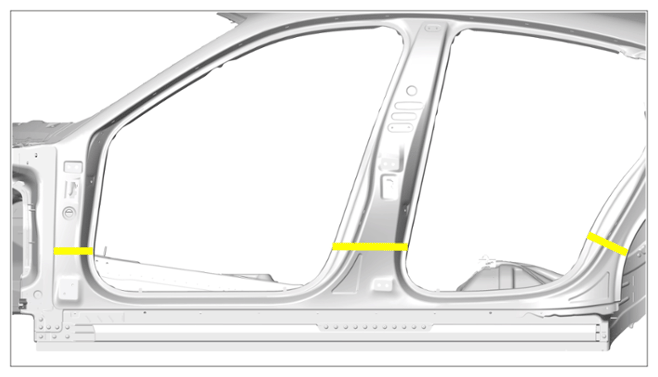

Prepare connection areas for applying a full aluminium weld.
> 5X00IN10 WELDING ALUMINIUM

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas of body
