Installing Outer Side Member

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

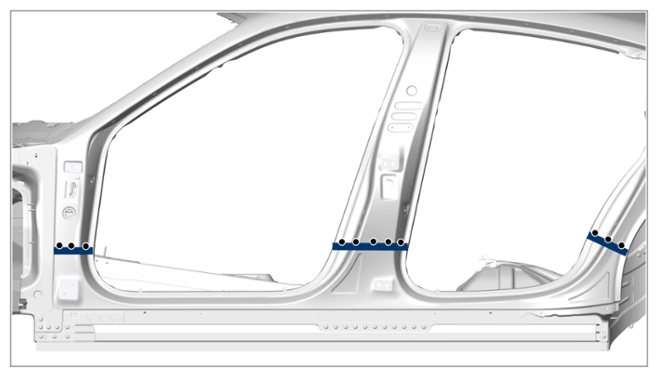

1. Tack on sheetmetal insert used as a welding backing strip on the body.

   > 5X00IN10 WELDING ALUMINIUM

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sheetmetal insert

   Information

   • Apply adhesive evenly over the entire bonding surface.

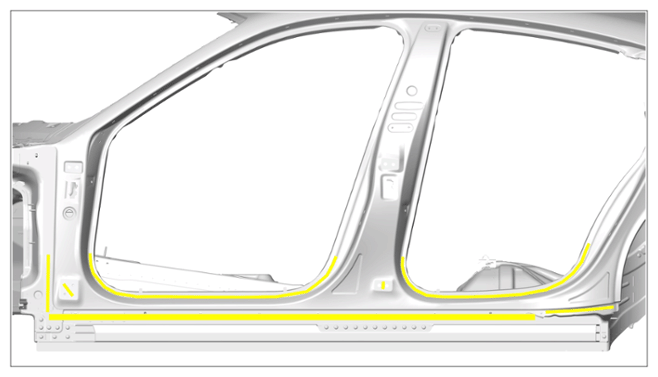

2. Apply adhesive on bonding areas of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   Information

   • Apply adhesive evenly over the entire bonding surface.

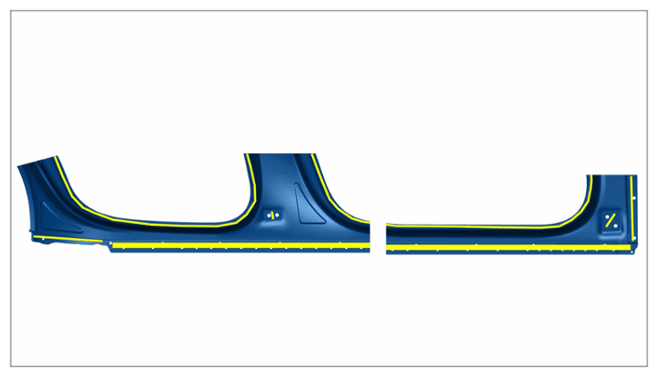

3. Apply adhesive to marked areas -LHD vehicle -  .

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas on outer side member

   1. 3.1  Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

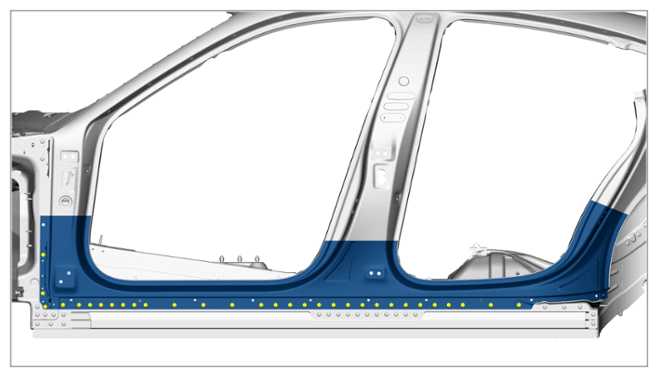

4. Install outer side member.
5. Screw in self-tapping screws.

   > 5X00IN24 SETTING SELF-TAPPING SCREWS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Self-tapping screws

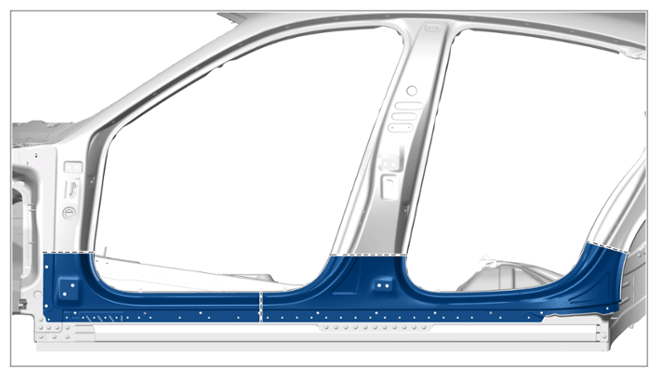

6. Apply full aluminium weld to outer side member.

   > 5X00IN10 WELDING ALUMINIUM

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Separation points

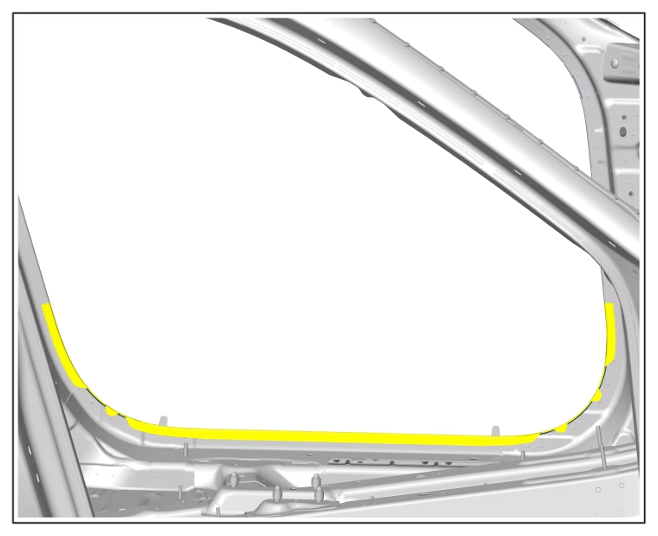

7. Bend over folded edges in the front door aperture using > VAS 6635 - crimping pliers set, 4-piece  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Folded edges in front door aperture

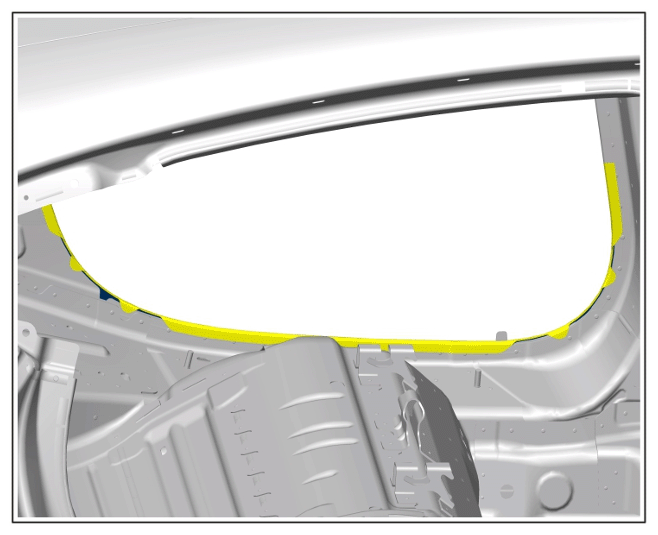

8. Bend over folded edges in the rear door aperture using > VAS 6635 - crimping pliers set, 4-piece  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Folded edges in rear door aperture

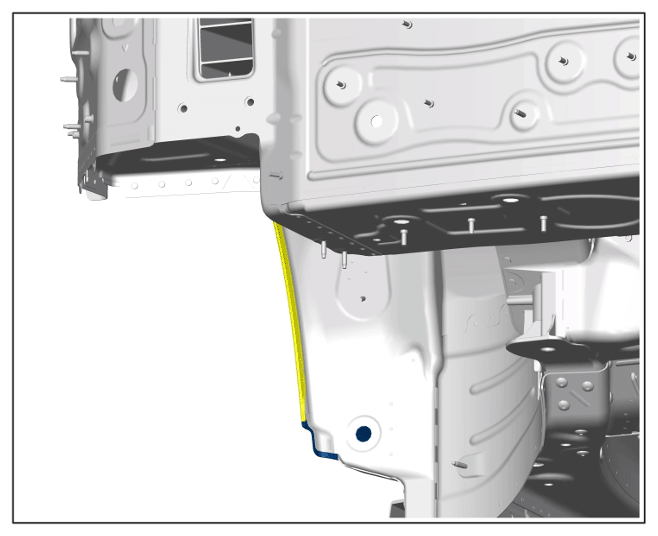

9. Bend over folded edge in rear wheel housing using > VAS 6635 - crimping pliers set, 4-piece  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Folded edge in wheel housing
