Installing Outer Side Member (When Replacing Side Member Reinforcement)

Information

If the side member reinforcement was replaced (> 514955 REPLACING SIDE MEMBER REINFORCEMENT ), the outer side member must be prepared and installed differently.

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Tack on sheetmetal insert used as welding backing strip on the body.

   > 5X00IN10 WELDING ALUMINIUM

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sheetmetal insert

   Information

   • Apply adhesive evenly over the entire bonding surface.

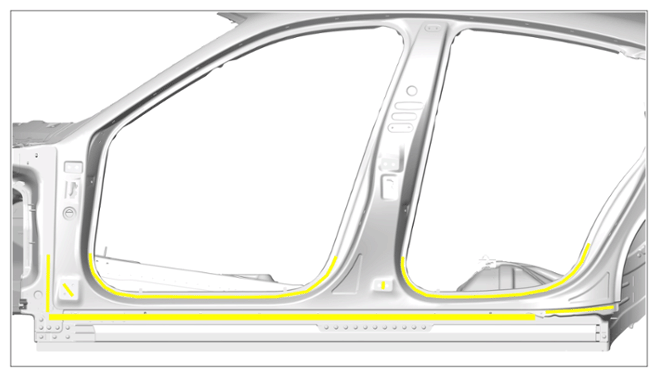

2. Apply adhesive on bonding areas of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   Information

   • Apply adhesive evenly over the entire bonding surface.

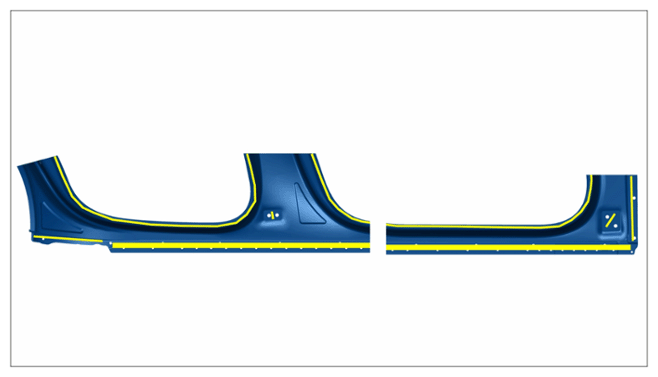

3. Apply adhesive on marked areas -A-  .

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   1. 3.1  Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

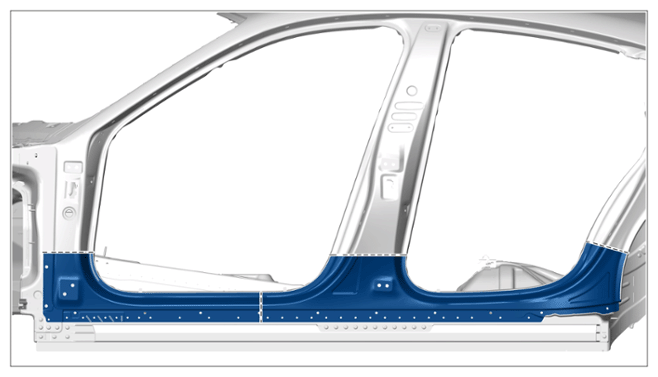

4. Secure outer side member.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Outer side member

   1. 4.1  Screw in self-tapping screws.

      > 5X00IN24 SETTING SELF-TAPPING SCREWS

   2. 4.2  Rivet in outer side member. > BLIND RIVET 999.190.227.01

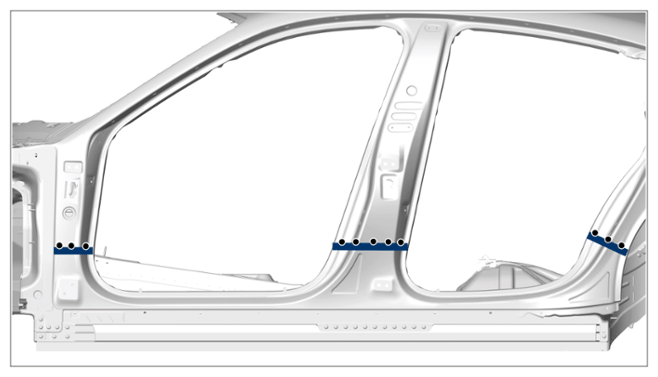

5. Apply full aluminium weld to outer side member.

   > 5X00IN10 WELDING ALUMINIUM

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Separation points

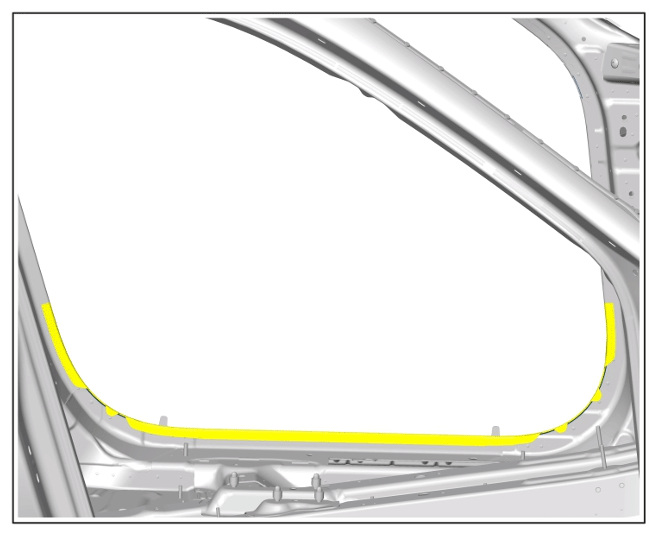

6. Bend over folded edges in the front door aperture using > VAS 6635 - crimping pliers set, 4-piece  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front door aperture folded edges

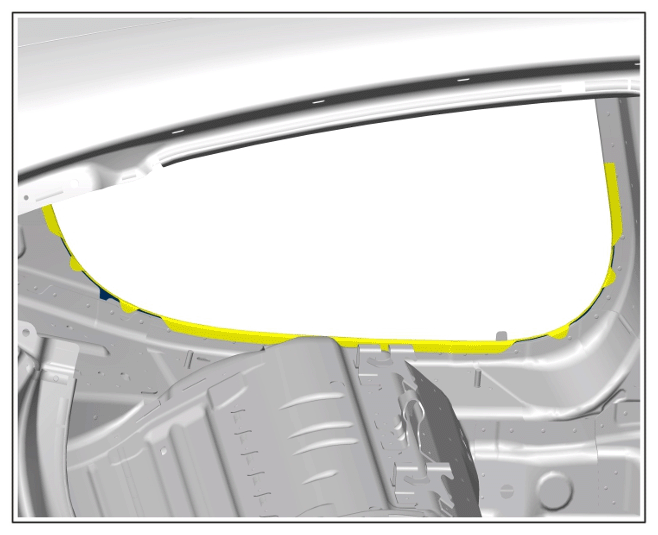

7. Bend over folded edges in the rear door aperture using > VAS 6635 - crimping pliers set, 4-piece  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear door aperture folded edges

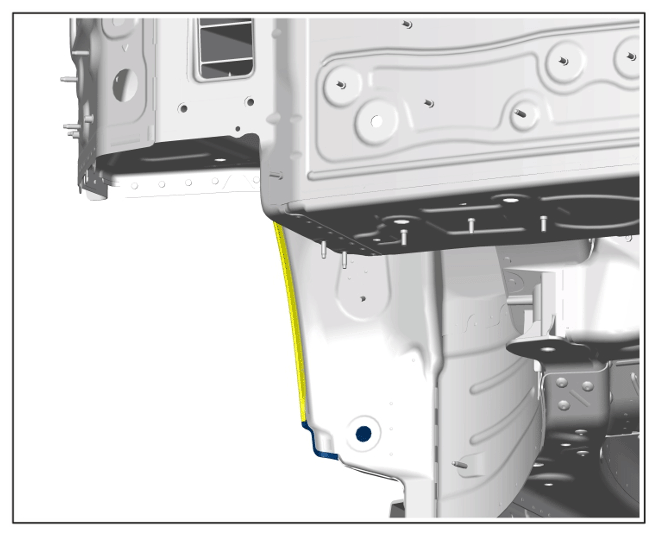

8. Bend over folded edge in rear wheel housing using > VAS 6635 - crimping pliers set, 4-piece  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Folded edge in wheel housing
