Component Information

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Cuts can be made in defined areas in the outer side member due to the parts dimensions. The purpose of the different cuts is to keep the repair area as small as possible in the event of damage.

The diagram should help you to determine the correct position of cuts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

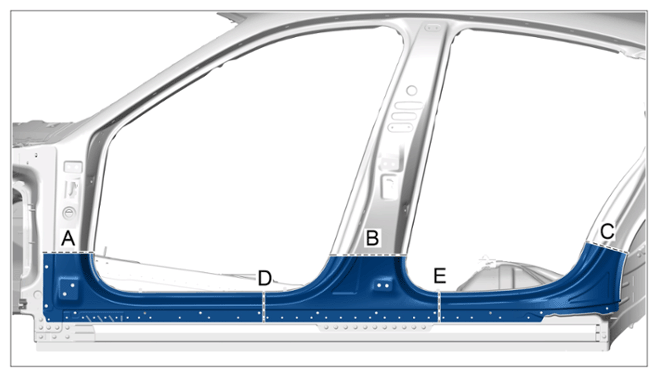

Cuts on outer side member

A-B-C	Replace outer side member.
A-D	Replace outer side member (front section).
D-B-E	Replace outer side member (centre section).
C-E	Replace outer side member (rear section).
