Removing The B-Pillar (Inner) Reinforcement

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen (inner) B-pillar reinforcement.

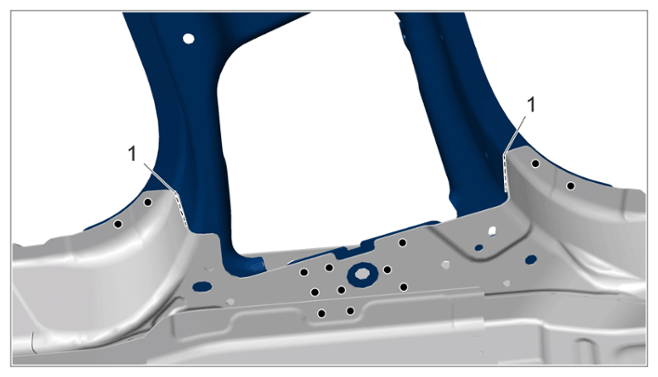

    G15561468Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds

    1. 1.1  Grind down welded seams -1-  .
    2. 1.2  Drill out spotwelds using > VAS 882 001 - spot-weld breaker  .
  2. Loosen (inner) B-pillar reinforcement.

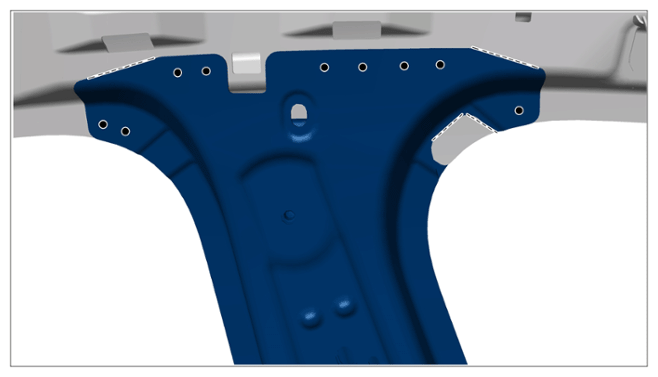

    G15561469Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds

    1. 2.1  Grind down welded seams.
    2. 2.2  Drill out spotwelds using > VAS 882 001 - spot-weld breaker  .
  3. Remove (inner) B-pillar reinforcement.
