Removing Side Member Reinforcement (Section)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

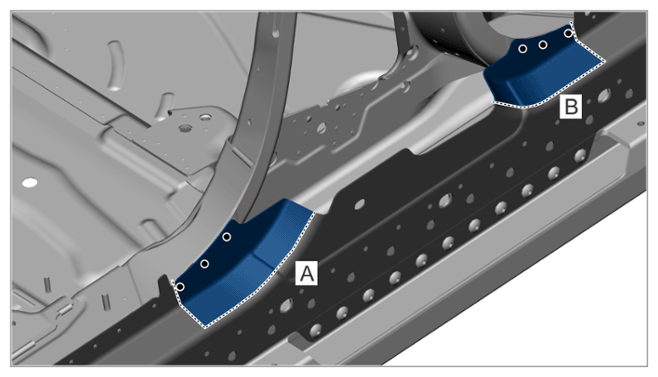

  1. Guide out unions on the side member (section).
    G15561467Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Deflection

    Information

    Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

    1. 1.1  Mark and make cuts -A-  and -B-  .
    2. 1.2  Drill out spotwelds using > VAS 882 001 - spot-weld breaker  .
  2. Remove side member reinforcement (section).
