Removing (Outer) B-Pillar Reinforcement

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen (outer) B-pillar reinforcement.

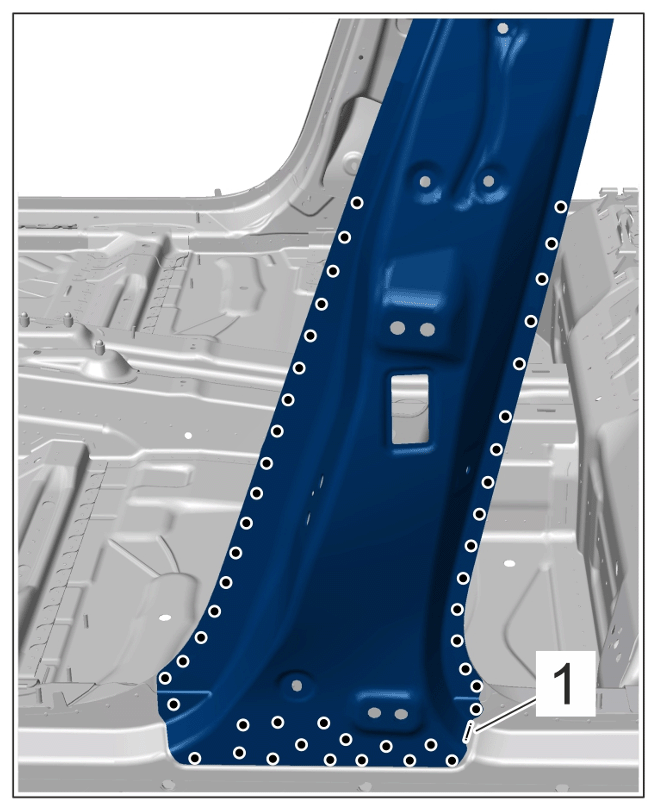

    G15561464Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds

    1. 1.1  Grind down welded seam -1-  .
    2. 1.2  Drill out spotwelds using > VAS 882 001 - spot-weld breaker  .
  2. Drill out spotwelds using > VAS 882 001 - spot-weld breaker  .

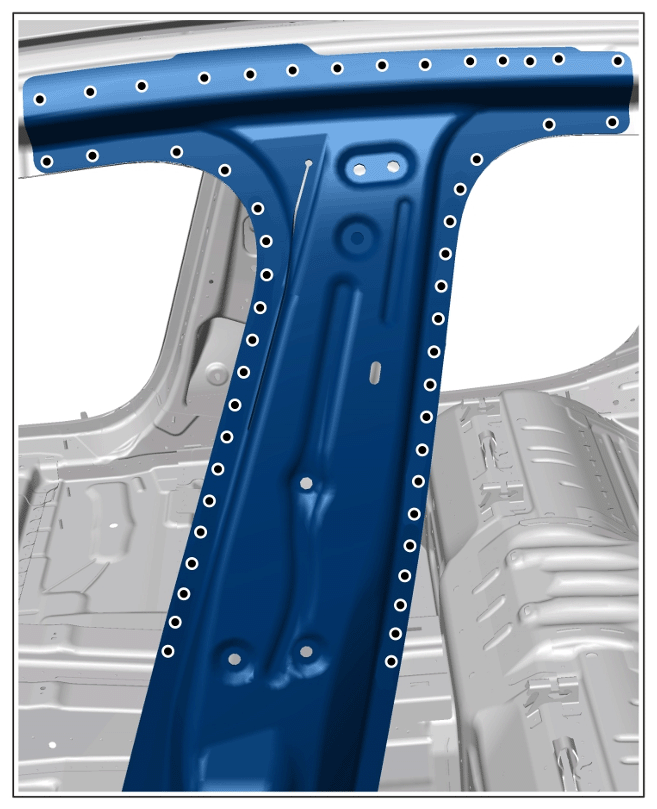

    G15561465Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds

  3. Heat bonding area using > V.A.G 1416 - hot-air blower  .

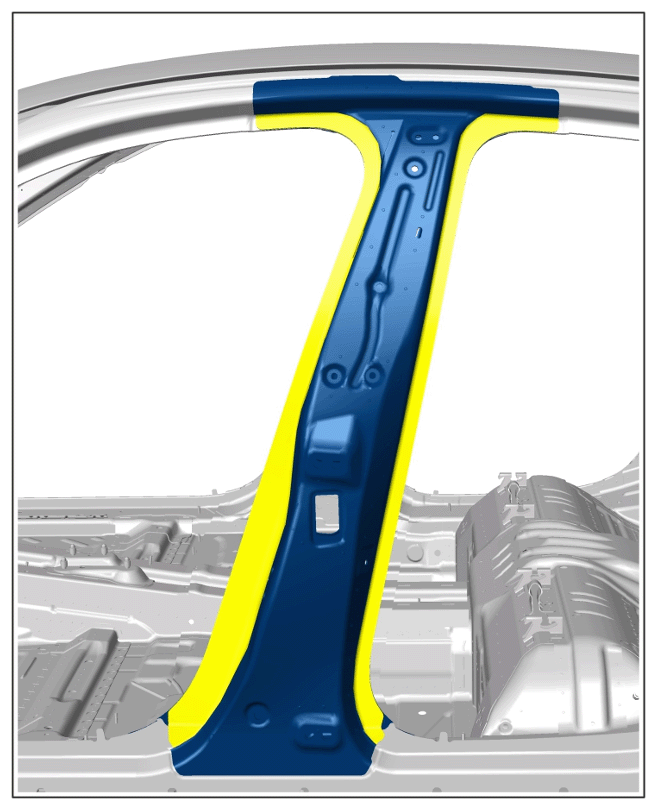

    G15561466Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding areas

  4. Remove (outer) B-pillar reinforcement.
