Preparing Side Member Reinforcement (Section)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit in side member reinforcement (section) and secure it to the body.
  2. Remove side member reinforcement (section).
  3. Prepare side member reinforcement (section) for joining.

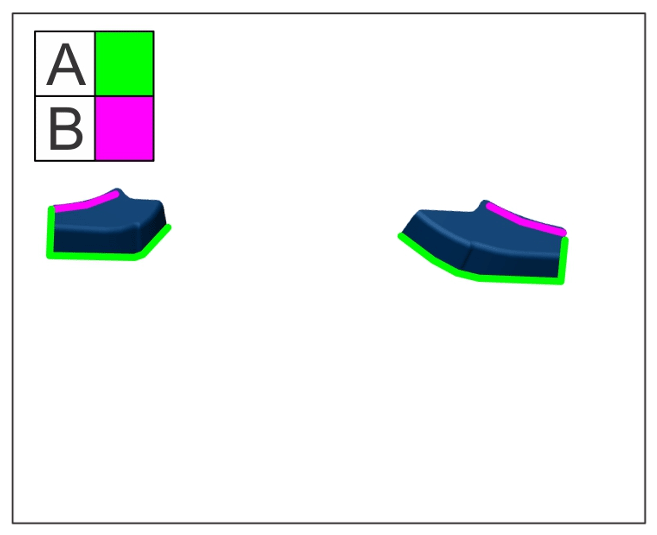

    G15561481Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Joint areas

    1. 3.1  Prepare marked areas -LHD vehicle -  for full steel welding.
    2. 3.2  Prepare marked area -RHD vehicle -  for steel plug-welding.
