Preparing (Outer) B-Pillar Reinforcement

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Fit in (outer) B-pillar reinforcement and secure it to the body.

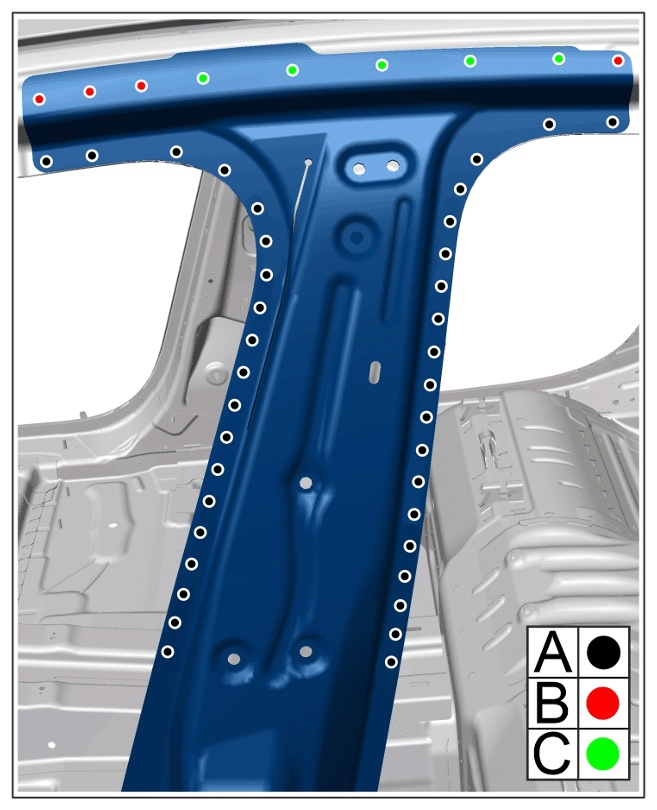

Drill bore holes for blind rivets -B- and -C- through both sheetmetal plates using > Diameter 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joints

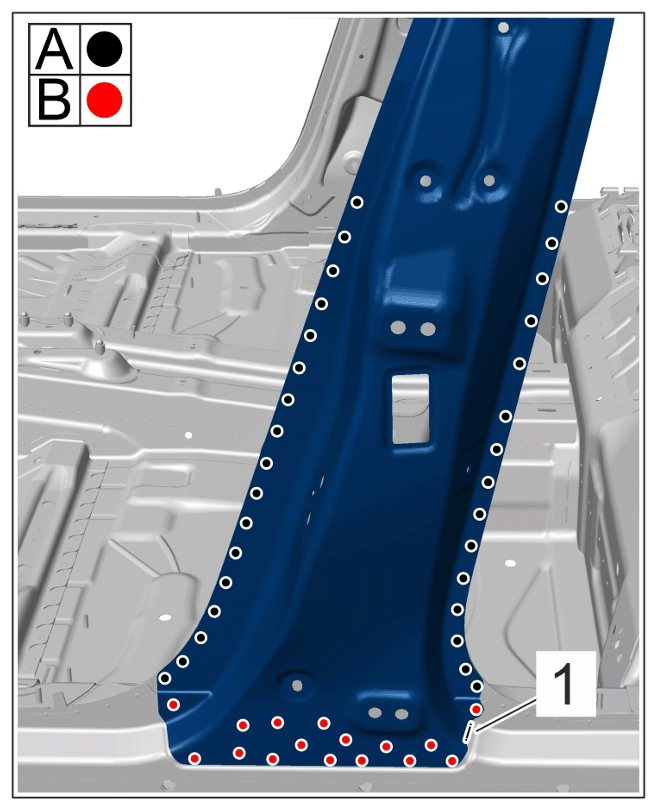

Drill bore holes for blind rivets -B- through both sheet metal plates using > diameter 6.6 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivets
Remove (outer) B-pillar reinforcement.
Prepare (outer) B-pillar reinforcement for joining.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

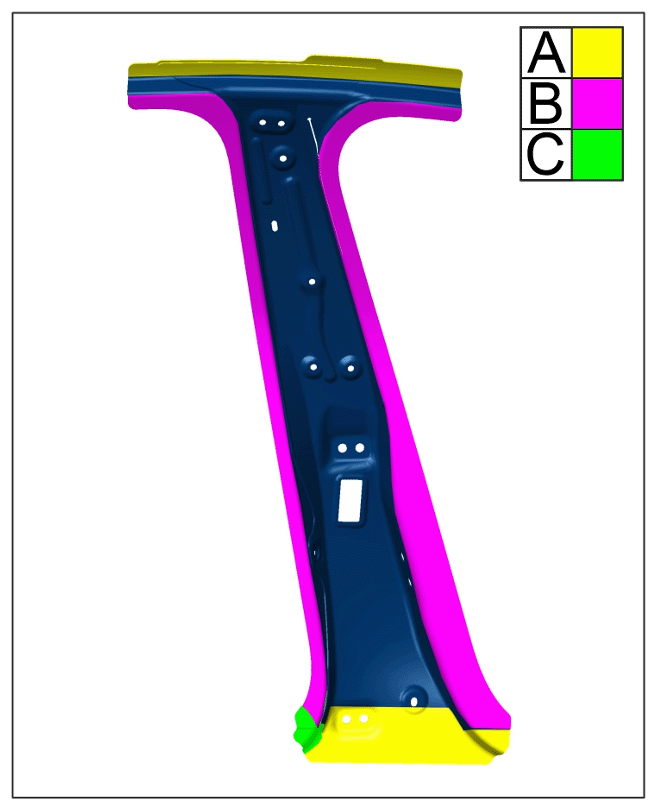

Joint areas
1. 5.1 Prepare marked areas -A- for bonding and riveting.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 5.2 Prepare marked areas -B- for bonding and steel resistance spot-welding.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
3. 5.3 Prepare marked area -C- for applying a full steel weld.
