Installing Side Member Reinforcement (Section)
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

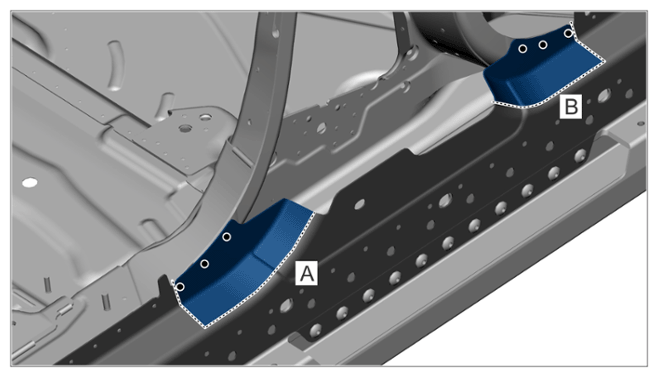

- Secure side member reinforcement (section).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Deflection
- 1.1
Join markings by applying a steel plug-weld.
- 1.2
Apply a full steel weld to side member reinforcement (section) in areas -A-
and -B-
.
