Removing B-Pillar

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

Information

Mark cuts A, B, C, D and E  in accordance with the new part. Make sure to leave an overlap of approx. 30 mm with respect to the body.

1. Mark and make cuts. Note different dimensions in Saloon and Cross Turismo  .

   Dimension A only Saloon  > Distance 275 mm

   Dimension A only for Cross Turismo  > Distance 265 mm

   Dimension B only Saloon  > Distance 525 mm

   Dimension B only Cross Turismo  > Distance 670 mm

   Dimension C applies to all vehicles.  > Distance 30 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

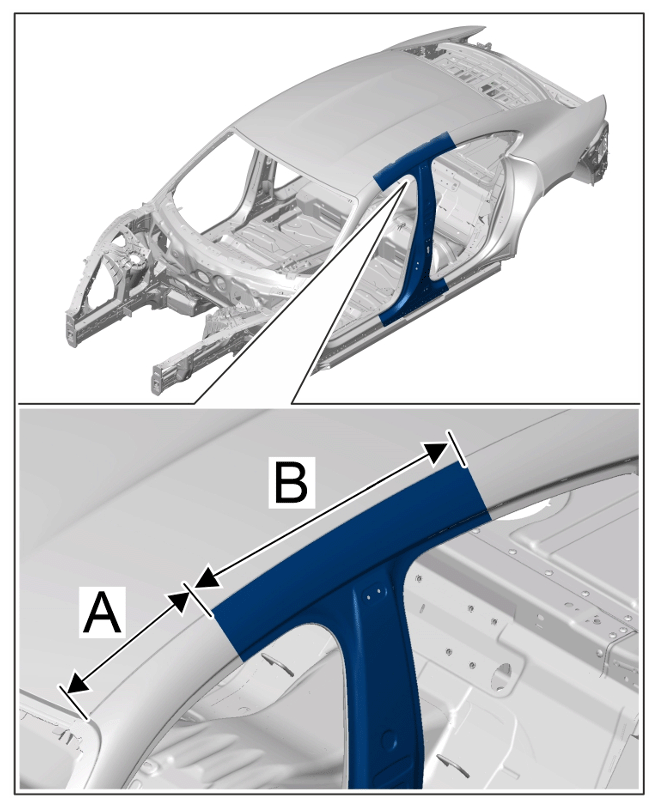

   Top of B-pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

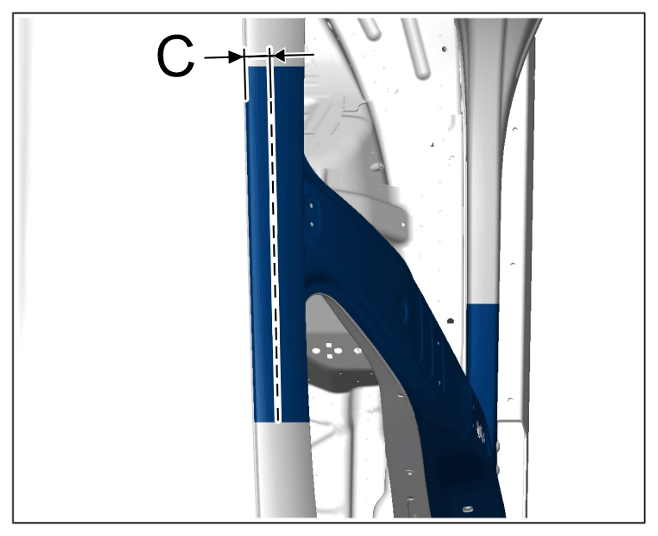

   Dimension of B-pillar

   Dimension D applies to all vehicles.  > Distance 73 mm

   Dimension E applies to all vehicles.  > Distance 40 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

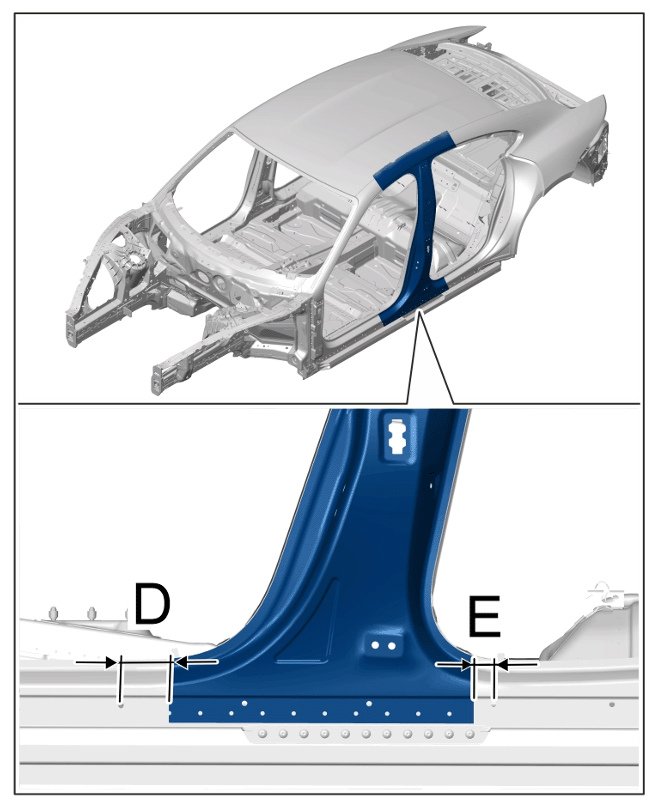

   Bottom of B-pillar

2. Unscrew self-tapping screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

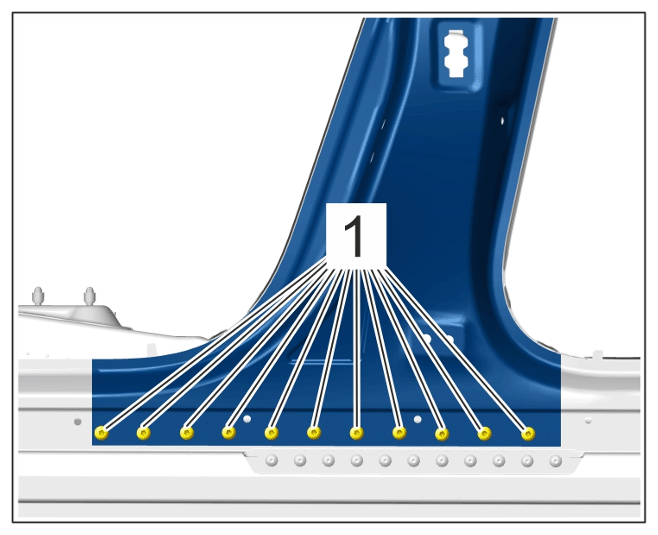

   Self-tapping screws

3. Loosen folded edges in the marked areas in the door apertures.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

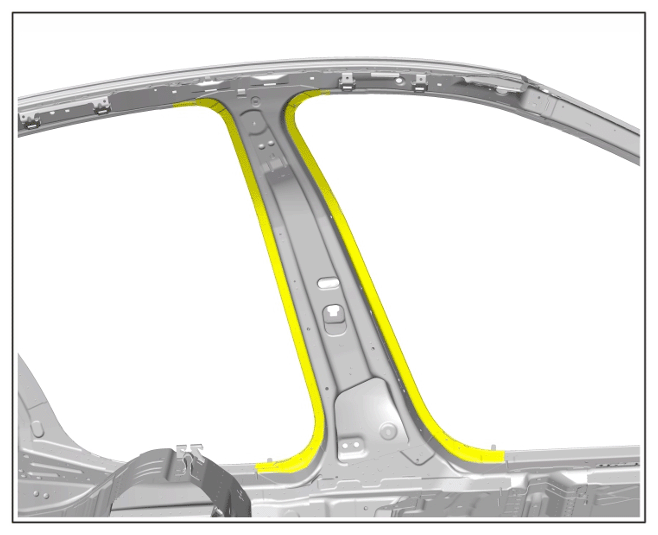

   Folded edges

   1. 3.1  Heat bonding areas using > V.A.G 1416 - hot-air blower  .
   2. 3.2  Bend up folded edges in the front and rear door aperture using > VAS 6635 - crimping pliers set, 4-piece  .
4. Heat bonding areas in the marked areas using > V.A.G 1416 - hot-air blower  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

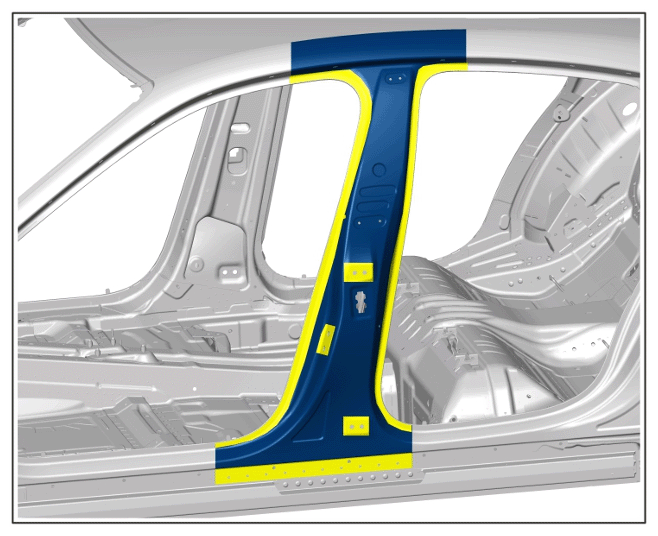

   Bonding areas

5. Remove B-pillar.
