Preparing B-Pillar For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Fit the B-pillar.

1.1 Cut the B-pillar at the transitions to the roof leaving an overlap of 30 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

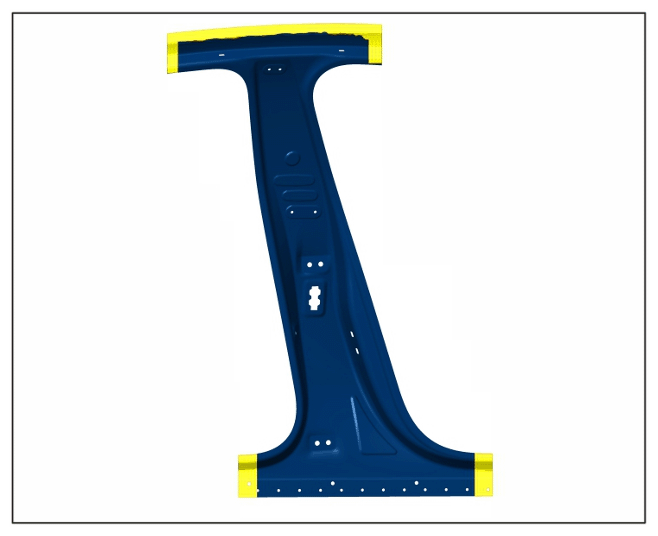

B-pillar trimming area

1.2 Fit and secure the B-pillar.
1.3 Make cuts through the B-pillar and body in the overlap areas.
Check gap dimensions.

> 5X00IN GAP DIMENSIONS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

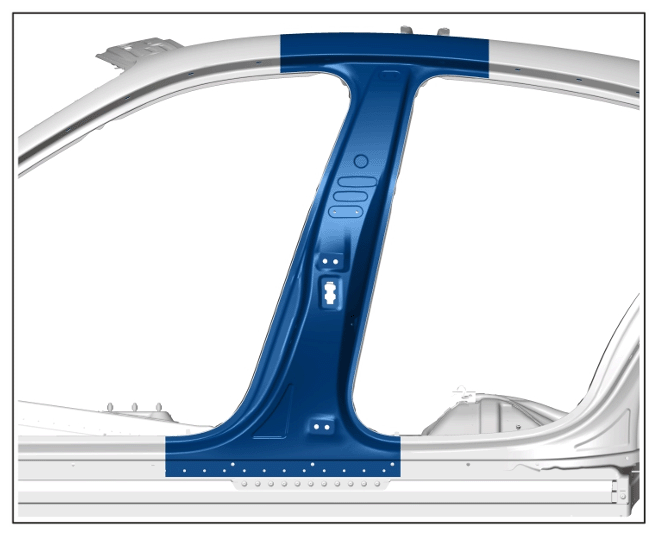

B-pillar

Remove B-pillar.
Cut sheetmetal insert used as a welding backing strip for the weld areas from the old B-pillar.
Prepare marked areas for bonding.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

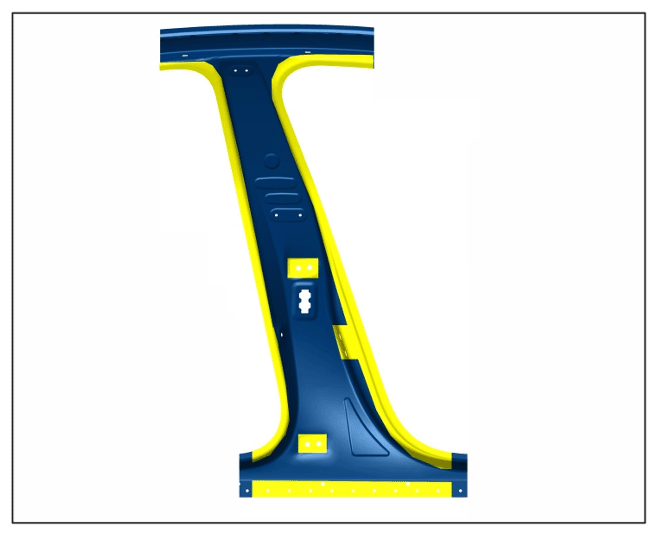

Bonding areas
