Removing Cowl Panel

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

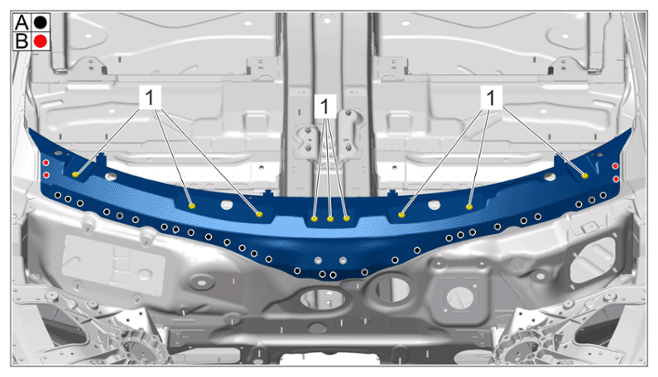

Loosen cowl panel at the front.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cowl panel, front
1. 1.1 Unscrew self-tapping screws -1- .
  > 5X00IN24 SETTING SELF-TAPPING SCREWS
2. 1.2 Drill out penetrated joints -A- using > Diameter 6.7 mm .
3. 1.3 Remove punch rivets -B- using > VAS 6790 - Compact Booster .
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

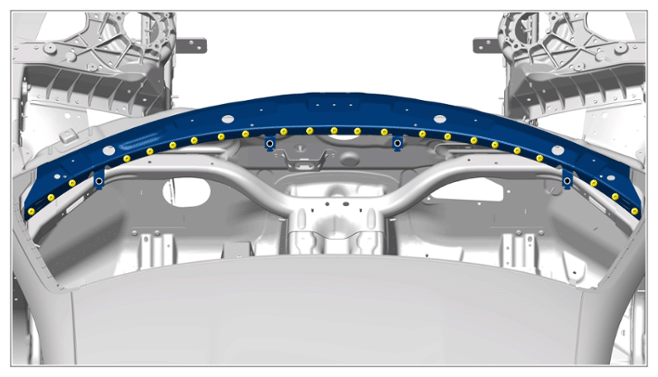

Loosen cowl panel at the rear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cowl panel, rear
1. 2.1 Unscrew self-tapping screws.
  > 5X00IN24 SETTING SELF-TAPPING SCREWS
2. 2.2 Drill out penetrated joints using > Diameter 6.7 mm .

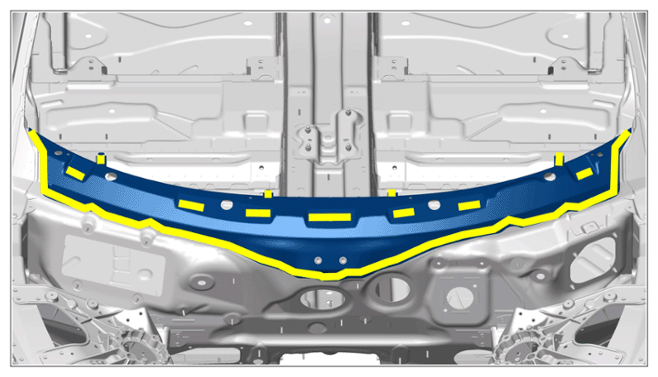

Heat bonding areas using > V.A.G 1416 - Hot-Air Blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
Remove cowl panel.
