Removing A-Pillar Reinforcement (Section)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

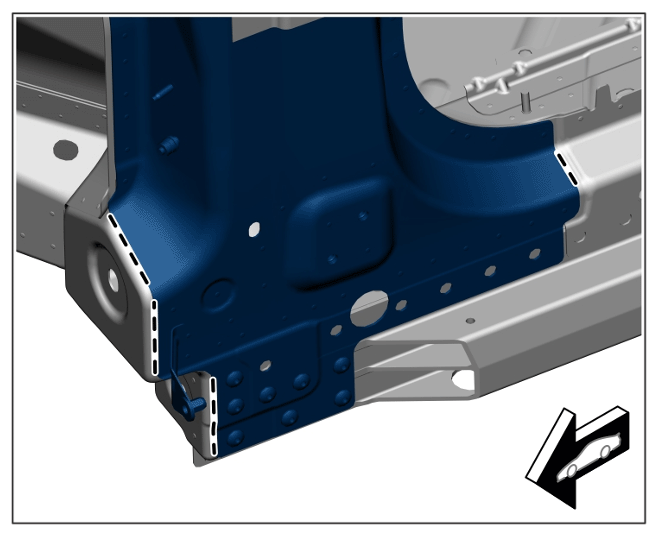

Separate welded seams.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seams

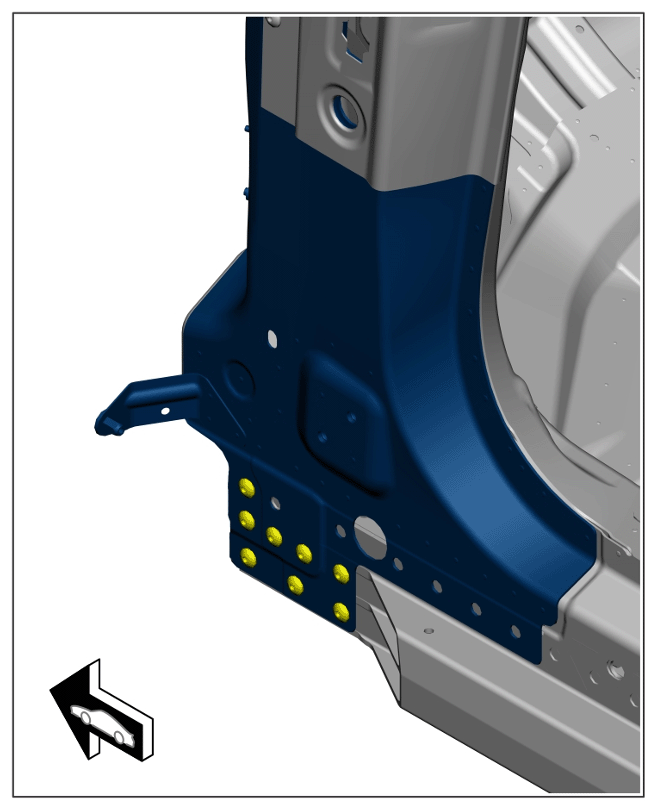

Unscrew self-tapping screws.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screws

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

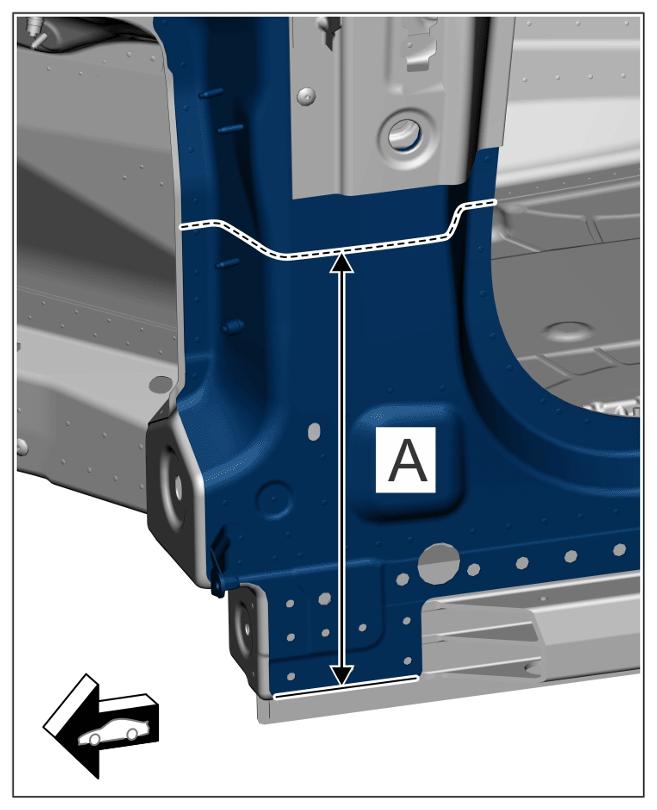

Mark and cut at dimension -A - . > Distance from lower edge of A-pillar reinforcement 347 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cut

Information

Only drill through one plate thickness on the spotwelds. Do not damage the component underneath.

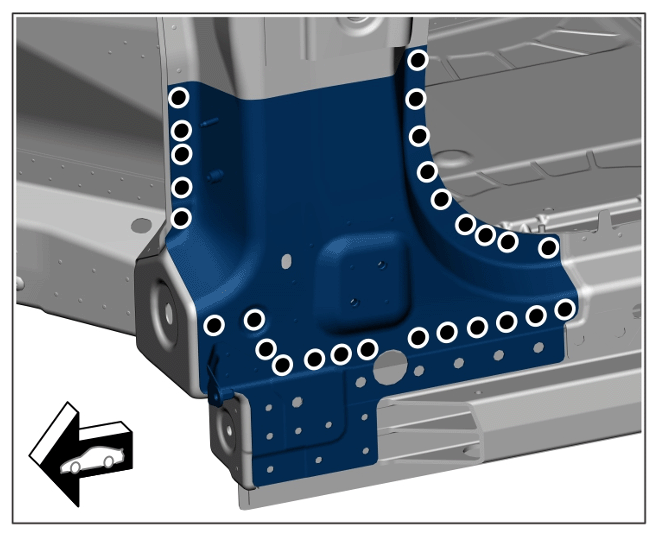

Drill out spotwelds.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spotwelds

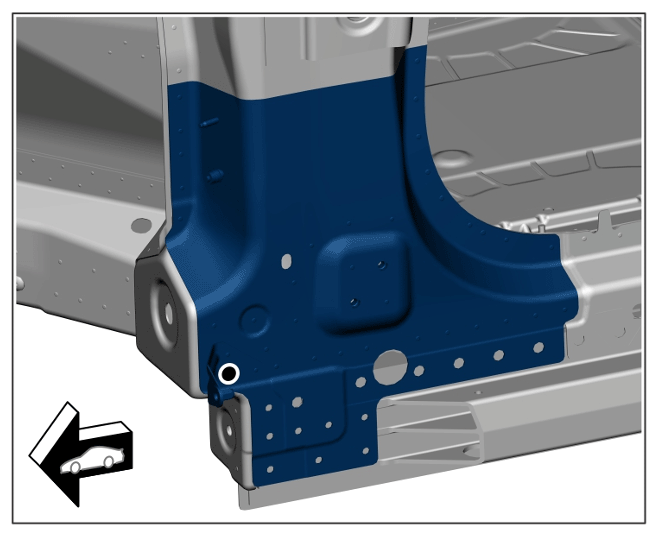

Drill out spotweld through two plate thicknesses.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spotweld

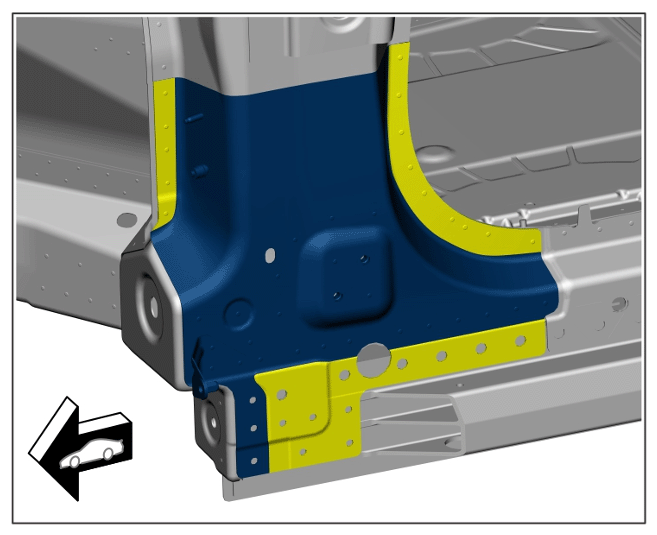

Heat the marked bonding areas using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
Remove A-pillar reinforcement (section).
