Installing A-Pillar Reinforcement (Section)

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

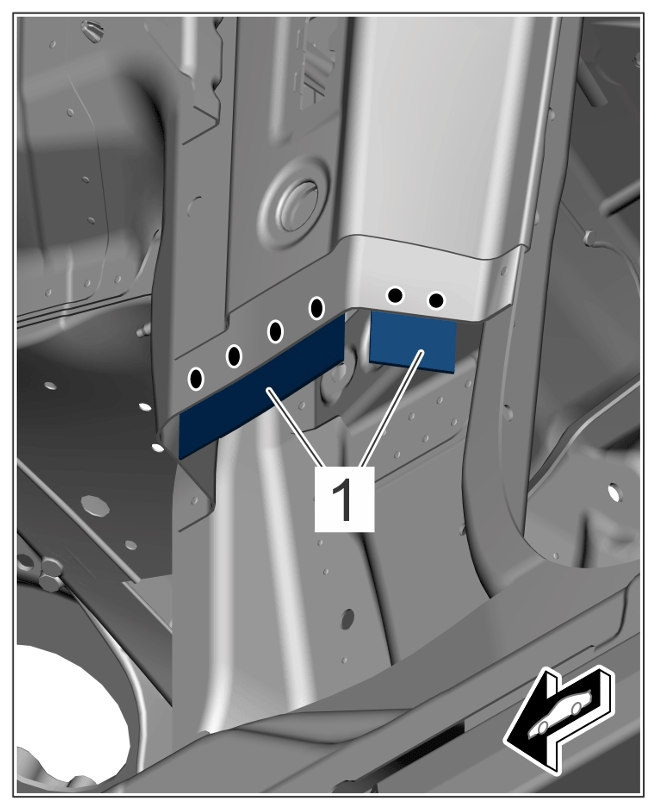

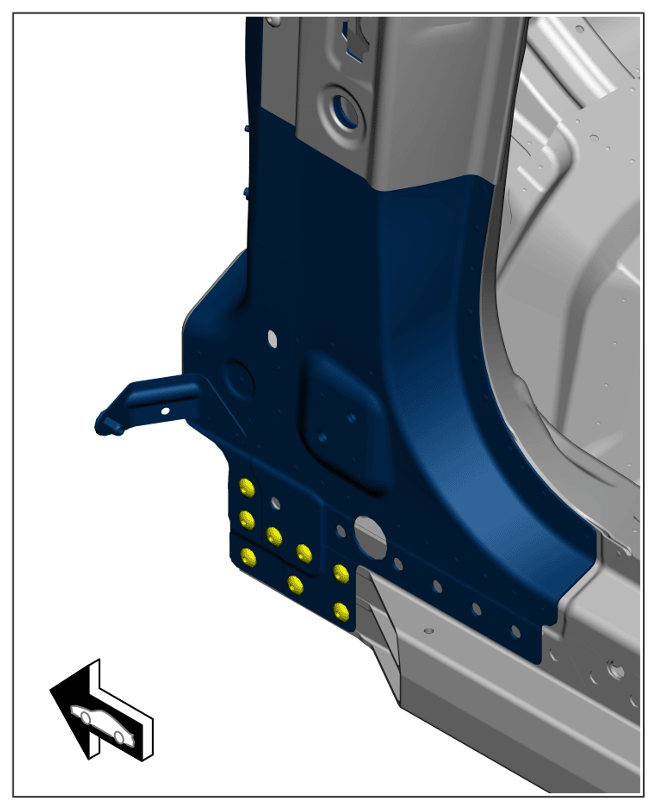

1. Position reinforcement plates -1-  centrally from inside to the body in the area of the A-pillar reinforcement and pin them.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Welding pins

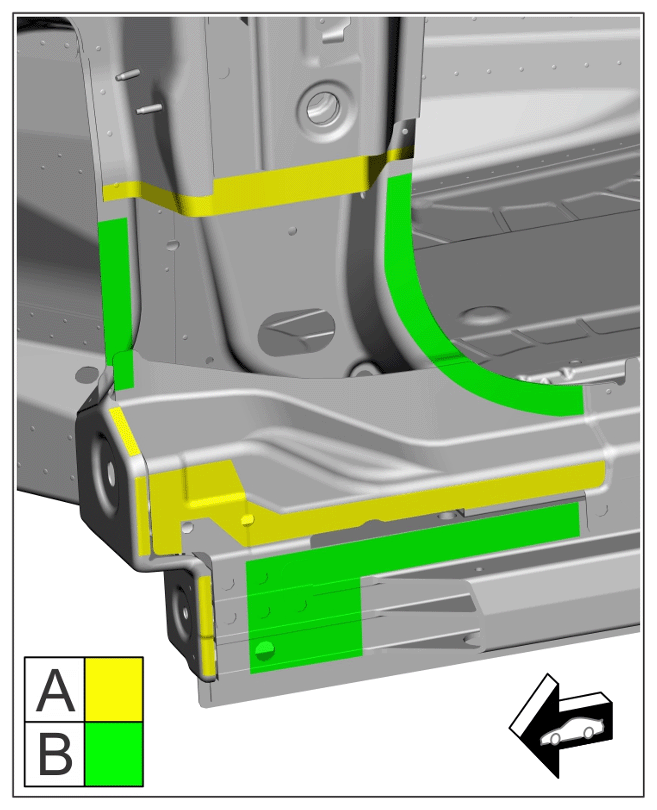

2. Apply adhesive to entire bonding area -B -  of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

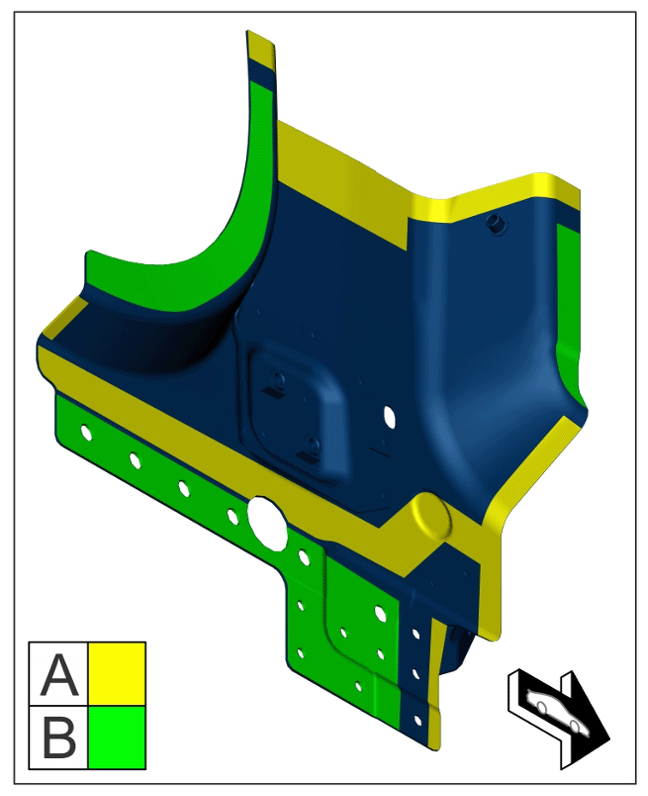

3. Apply adhesive to entire bonding area -B -  of the A-pillar reinforcement (section).

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding areas

   1. 3.1  Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

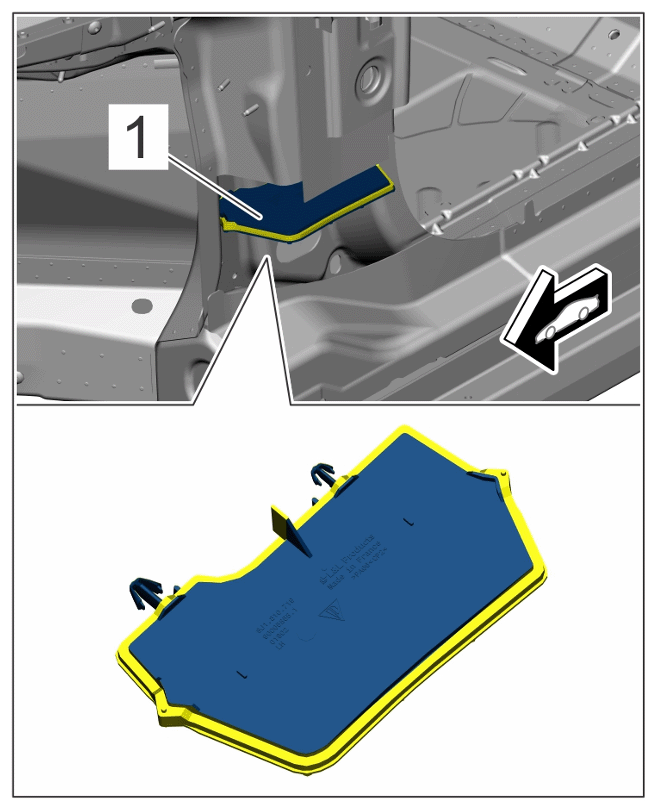

4. Apply body foam filler all the way around the bulkhead part -1-  in the marked area and clip bulkhead part into the body.

   > 5X00IN22 Working with body foam filler

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Body foam filler

5. Install A-pillar reinforcement (section) and fix in position.

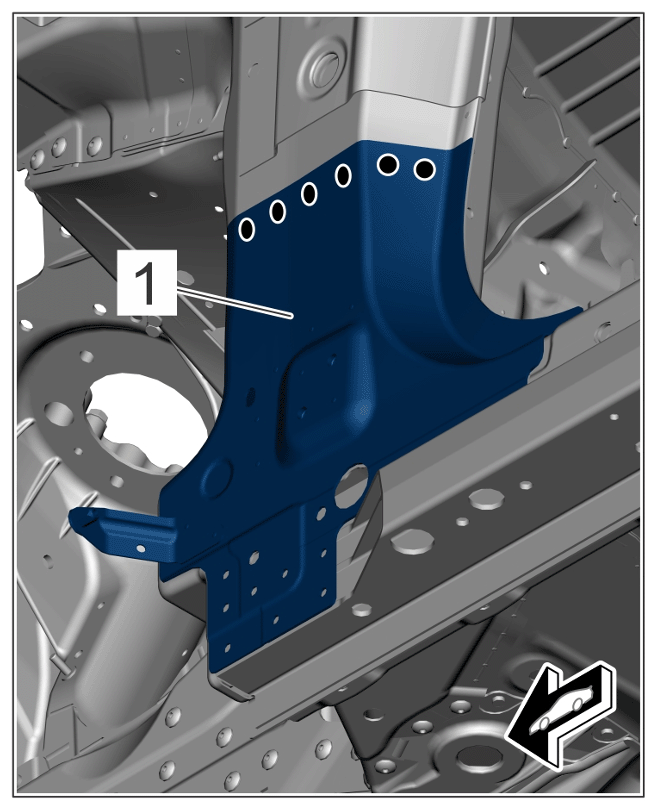

6. Pin A-pillar reinforcement (section) -1-  to reinforcement plates.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Welding pins

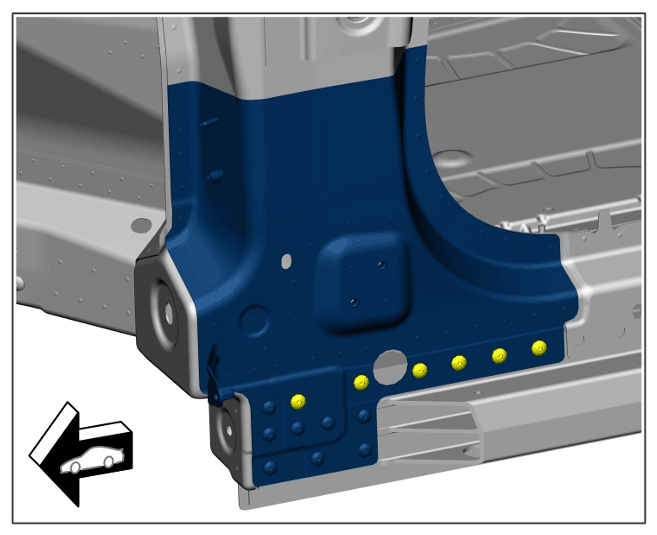

7. Screw in and tighten self-tapping screws.

   > 5X00IN24 SETTING SELF-TAPPING SCREWS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Self-tapping screws

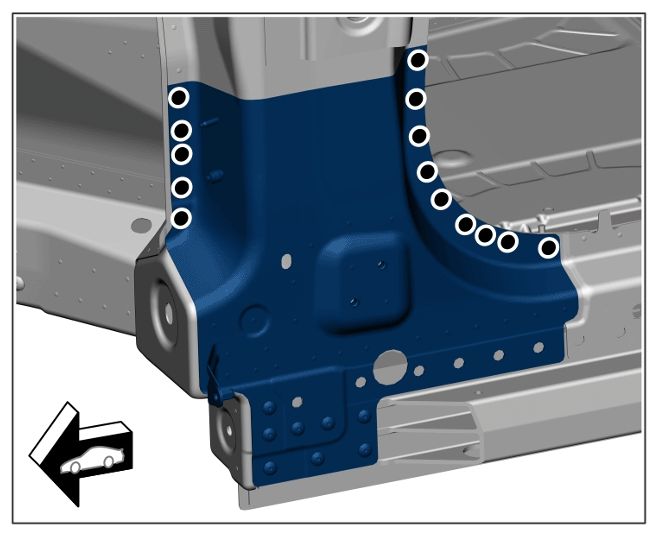

8. Resistance spot-weld the A-pillar reinforcement (section).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Resistance spot-welding

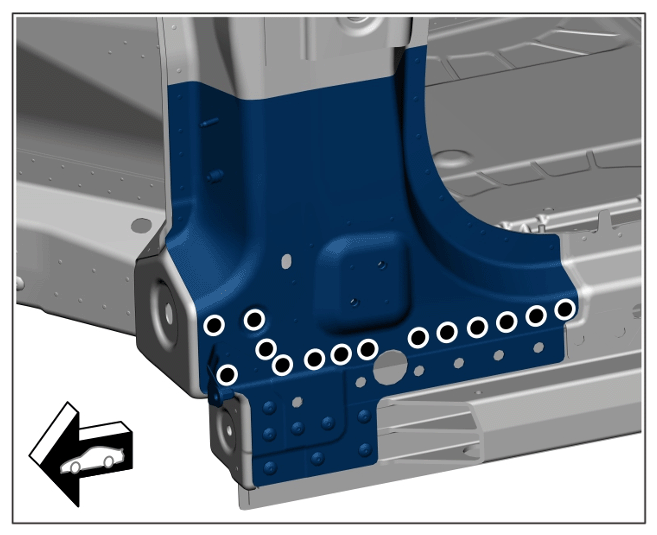

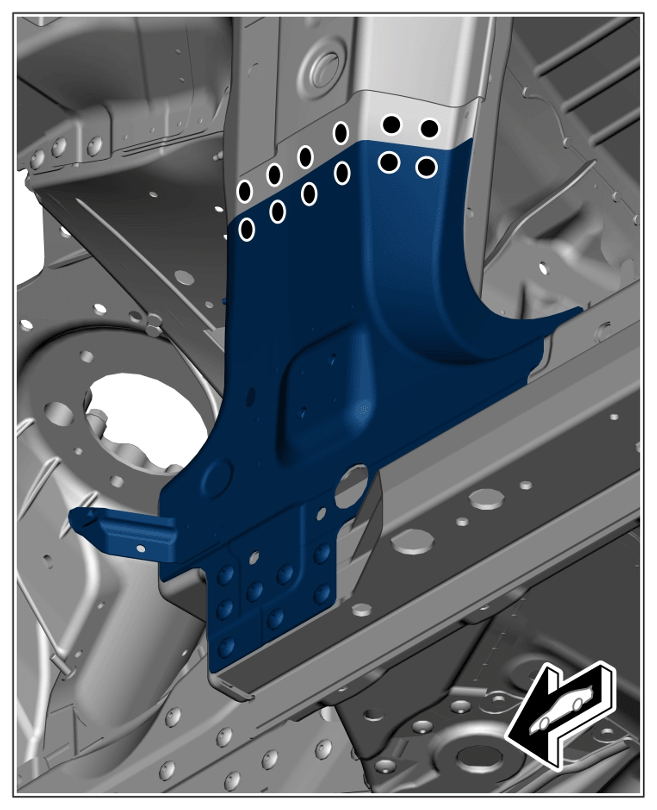

9. Plug-weld A-pillar reinforcement (section).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Plug-welding

10. Plug-weld reinforcement plates to body and A-pillar reinforcement (section).

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Plug-welding

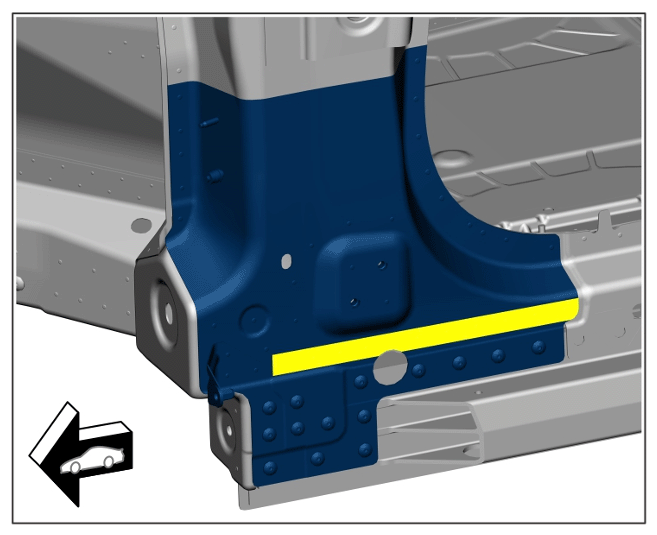

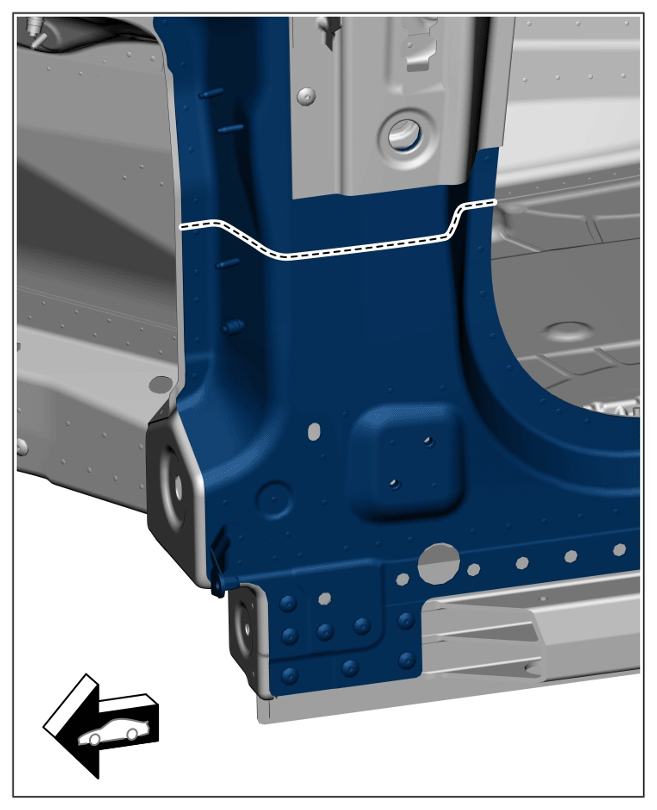

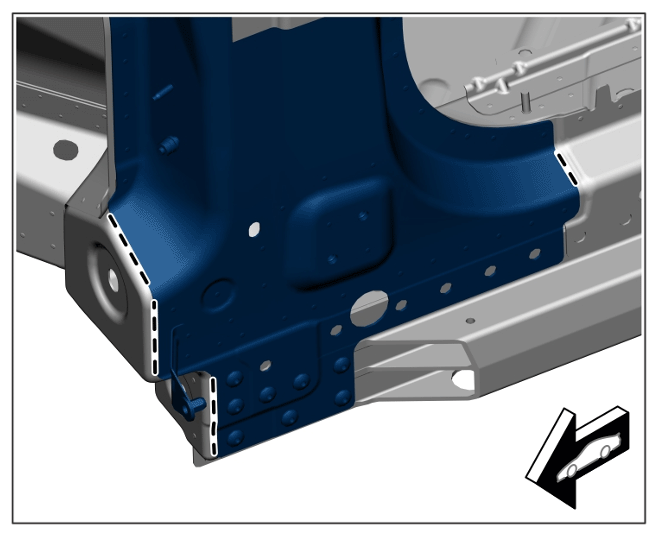

11. Apply a full steel weld to the A-pillar reinforcement (section).

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Weld seam cut

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Welded seams

12. Screw in self-tapping screws on the outer side member until the adhesive has hardened.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Self-tapping screws on outer side member

13. Check that the marked area is flat and that the outer side member can lie flat. Grind them level if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Level contact surface
