Removing The Side Member (Inner) Reinforcement Section
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Information
Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

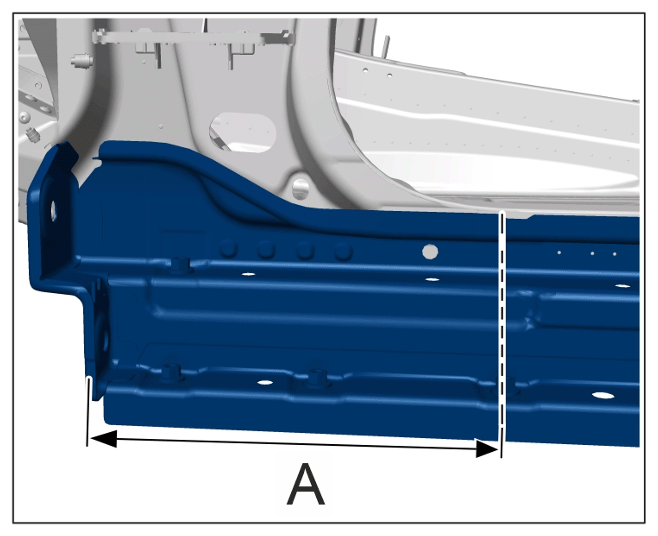

- Mark and make cut -A-
. > Distance 415 mm
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Cut
- Loosen the side member (inner) reinforcement section.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

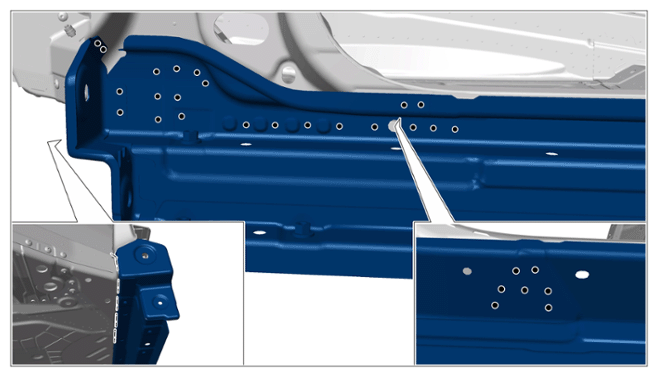

Steel welding
- 2.1
Drill out spotwelds using > V.A.G 1731 - pneumatic spotweld remover, Vario Drill WS 90
.
- 2.2
Grind down welded seams.
- Remove the side member (inner) reinforcement section.
