Removing The A-Pillar (Inner) Reinforcement

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Loosen A-pillar (inner) reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Steel welding
1. 1.1 Drill out spotwelds using > V.A.G 1731 - pneumatic spotweld remover, Vario Drill WS 90 .

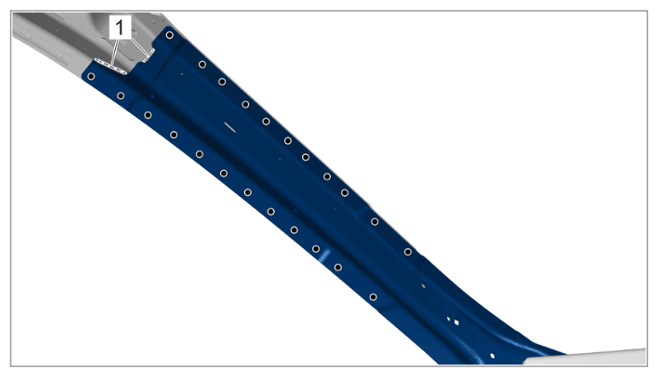

2. 1.2 Grind down welded seams -1- .

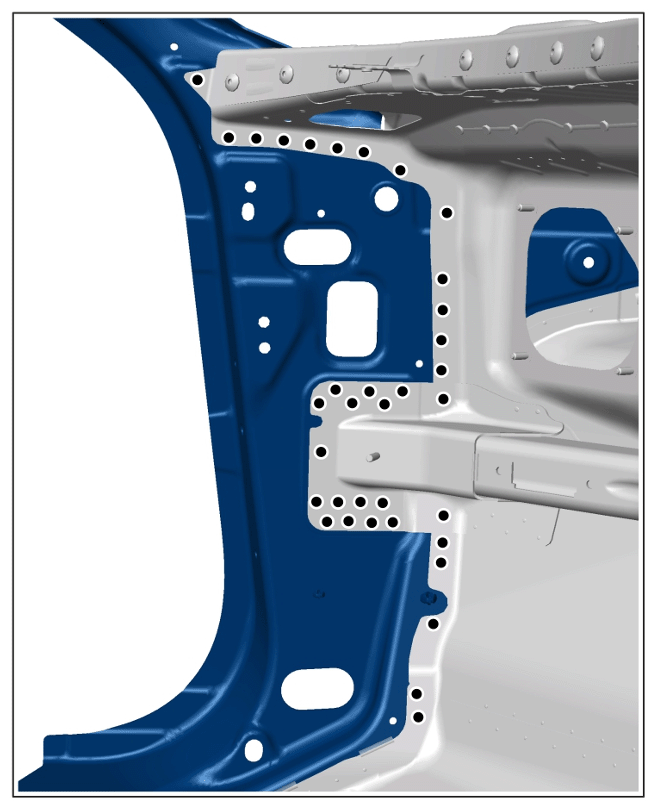

Drill out spotwelds using > V.A.G 1731 - pneumatic spotweld remover, Vario Drill WS 90 .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spotwelds

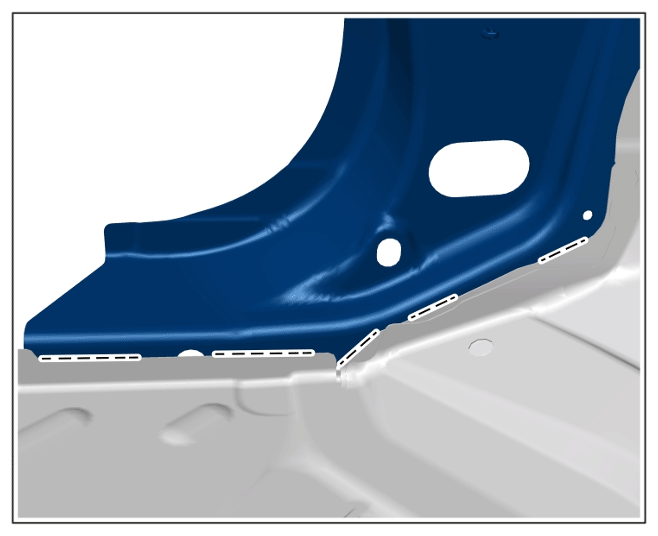

Grind down welded seams.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seams
Loosen A-pillar (inner) reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Punch rivets

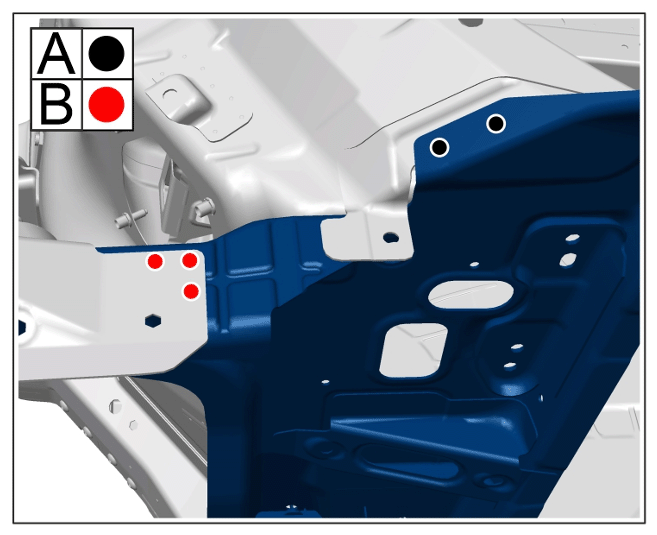

1. 4.1 Drill out spotwelds -A- using > V.A.G 1731 - pneumatic spotweld remover, Vario Drill WS 90 .
2. 4.2 Remove punch rivets -B- using > VAS 852 001 - dent removal unit and > VAS 6790 - compact booster .
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

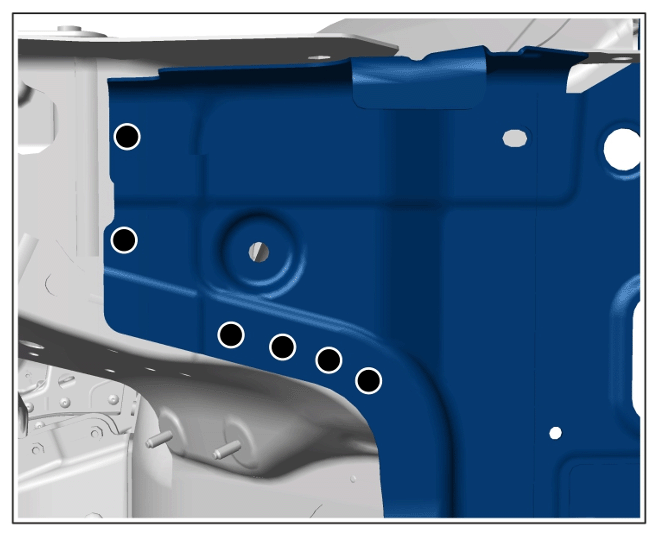

Remove punch rivets using > VAS 852 001 - body dent removal system, aluminium and > VAS 6790 - compact booster .
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Punch rivets

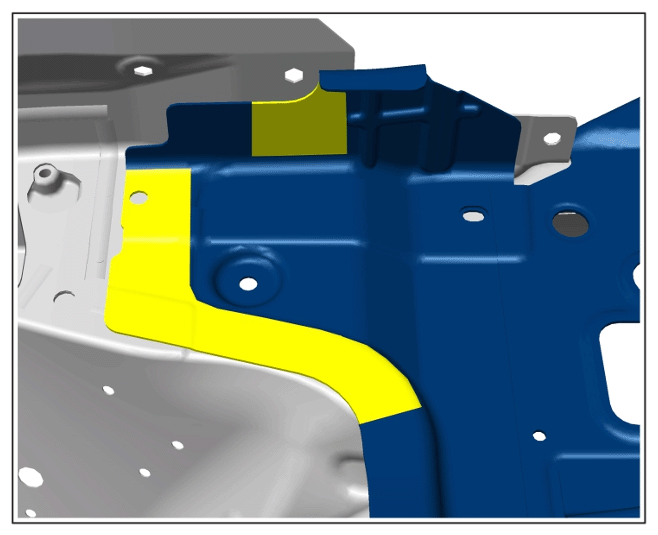

Heat bonding areas using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
Remove A-pillar (inner) reinforcement.
