Installing Reinforcement
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
- Fit reinforcement and check that it fits perfectly.

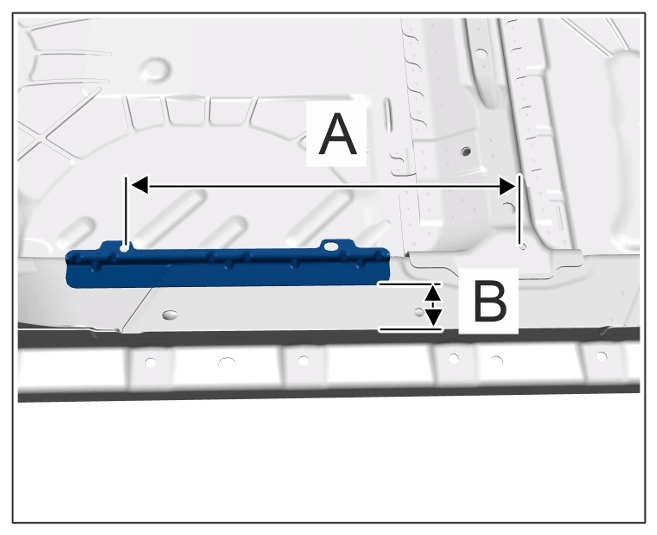

- Position reinforcement.
> Distance 402 mm
and > Distance 56 mm
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Position

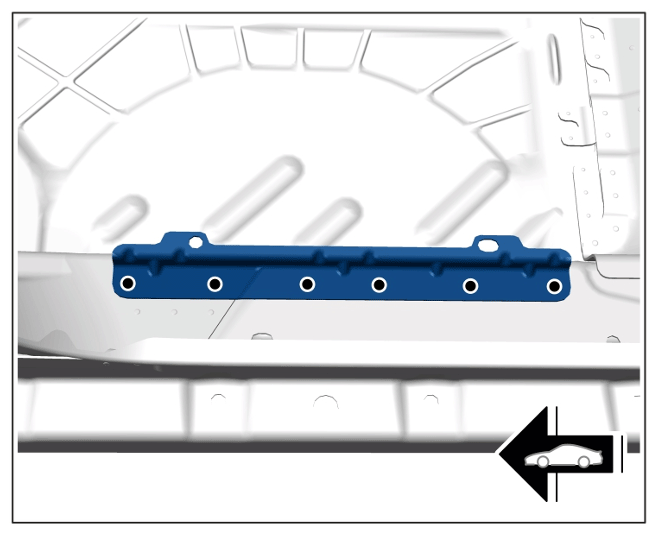

- Steel plug-weld reinforcement.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Steel plug-weld
