Removing A-Pillar Reinforcement

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

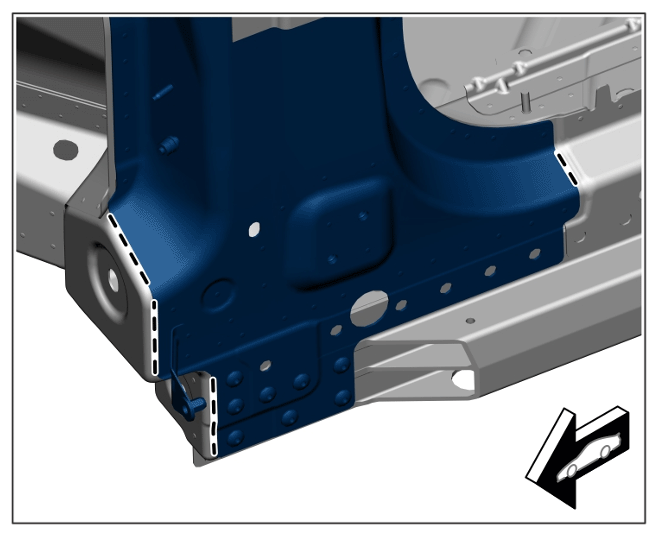

Separate welded seams.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seams

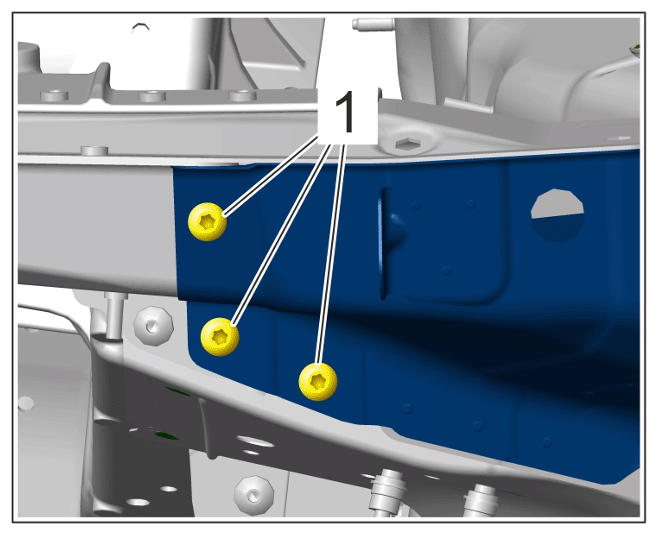

Unscrew self-tapping screws.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screws

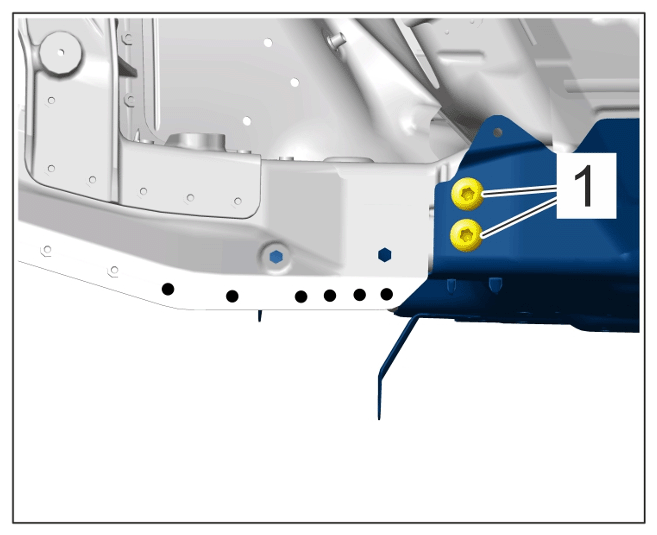

Unscrew self-tapping screws -1- .
> 5X00IN24 SETTING SELF-TAPPING SCREWS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screws
Loosen A-pillar reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

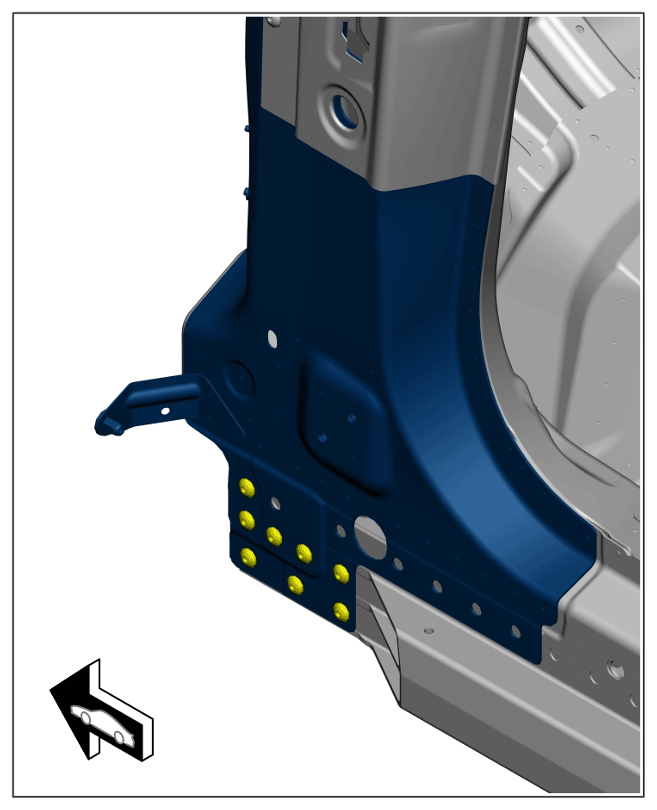

Joints
1. 4.1 Loosen friction element welded joints.
  > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT
2. 4.2 Unscrew self-tapping screws -1- .
  > 5X00IN24 SETTING SELF-TAPPING SCREWS
Information

Only drill through one plate thickness on the spotwelds. Do not damage the component underneath.

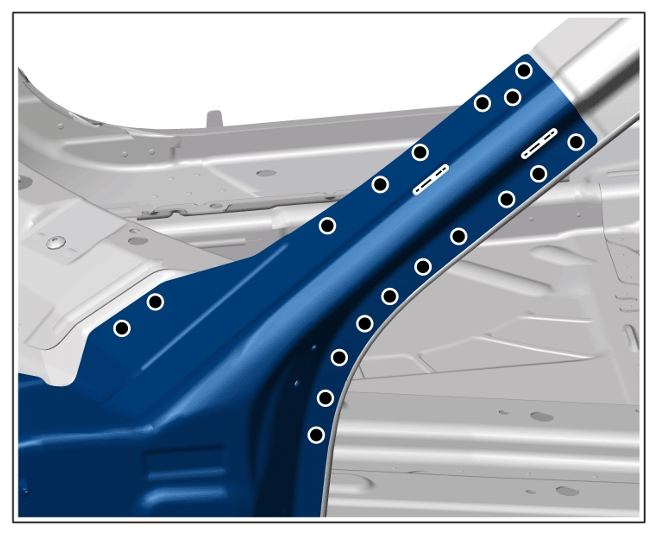

Drill out spot welds using > VAS 882 001 - spot-weld remover .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spotwelds

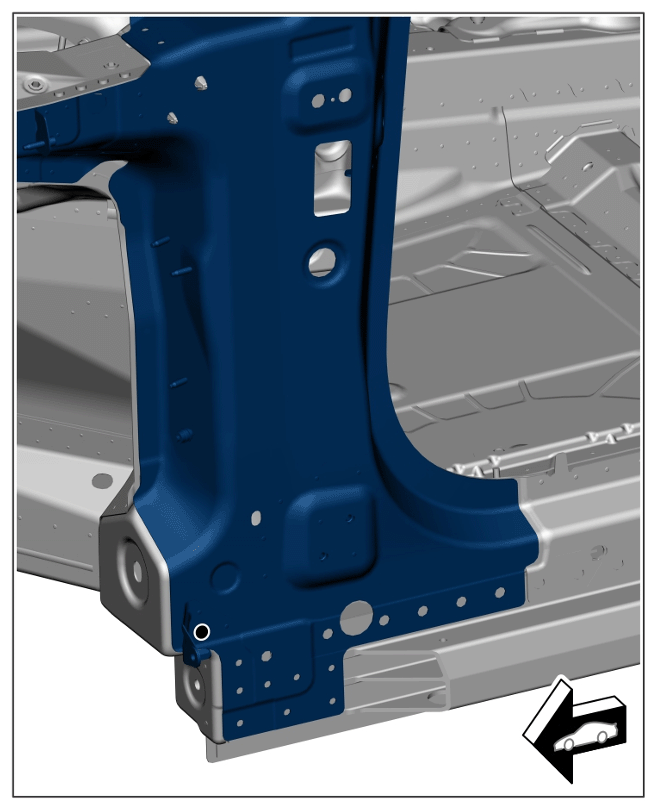

Drill out spotweld through two plate thicknesses.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spotweld
Loosen A-pillar reinforcement.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seams

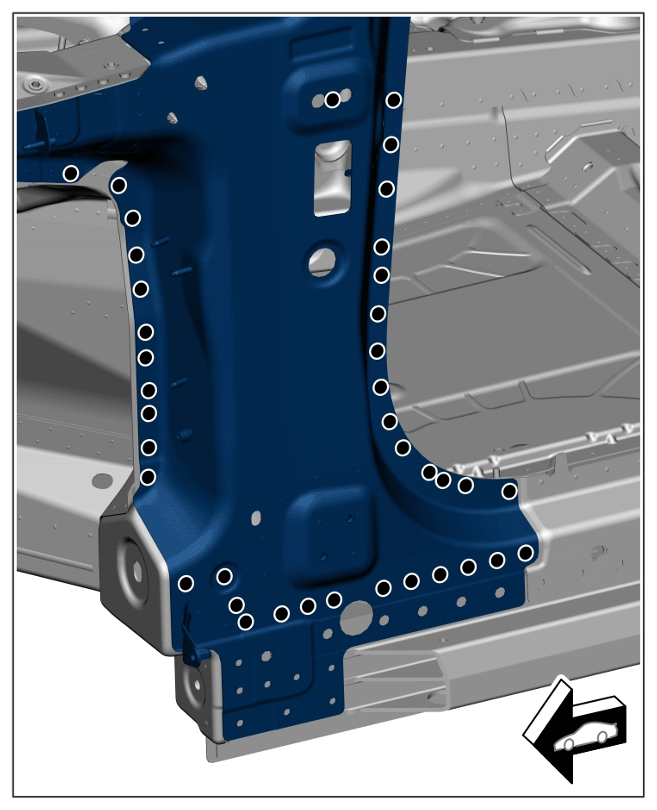

1. 7.1 Grind down welded seams.
  Information

  Only drill through one plate thickness on the spotwelds. Do not damage the component underneath.
2. 7.2 Drill out spotwelds using > VAS 882 001 - spot-weld remover .

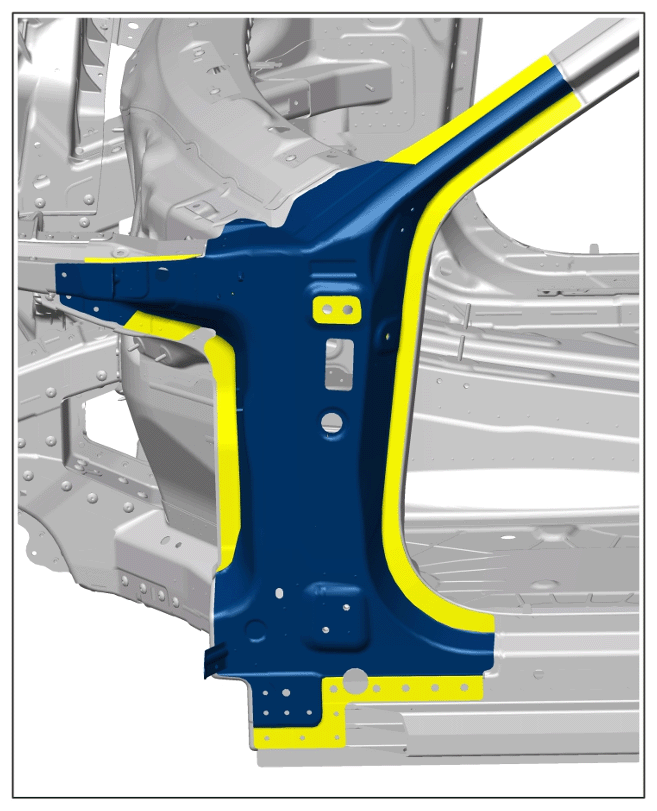

Heat bonding areas using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas
Remove A-pillar reinforcement.
