Removing Wing Rail (Section)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

The wing rail (section) need only be replaced if the outer side member (front section) or the A-pillar must be replaced.

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

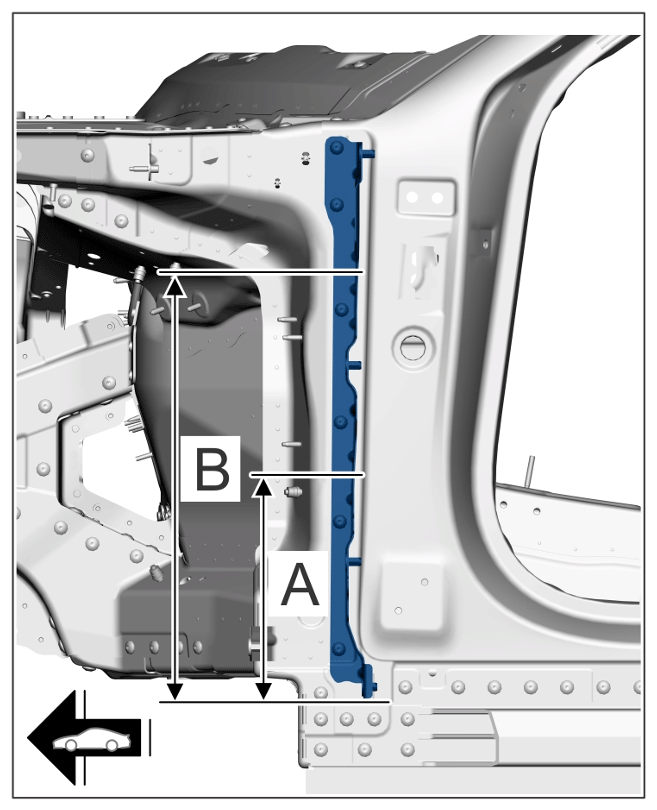

Mark and make cuts -A - and -B - . > Distance from bottom edge of side part 230 mm > Distance from bottom edge of side part 450 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cuts
Unscrew self-tapping screws.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screws

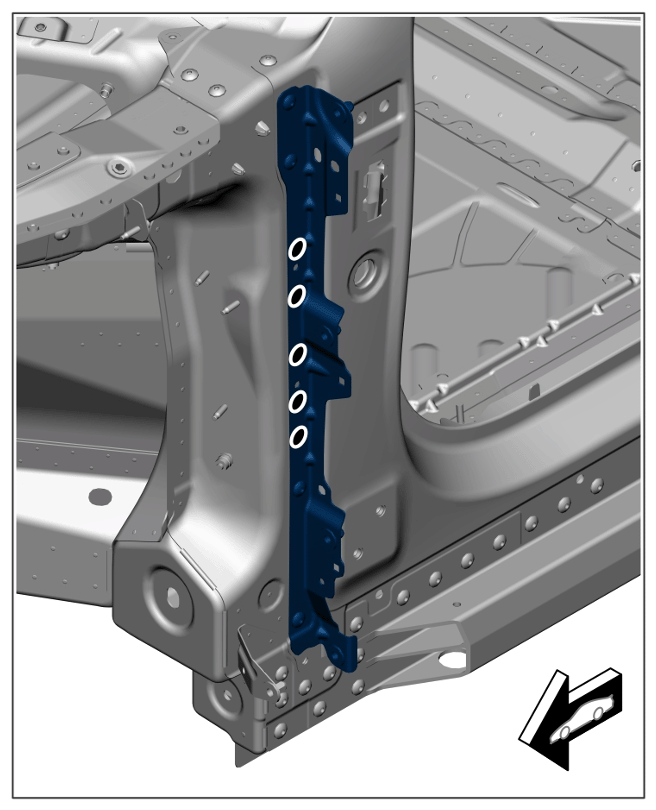

Drill out penetrated joints.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clinch point

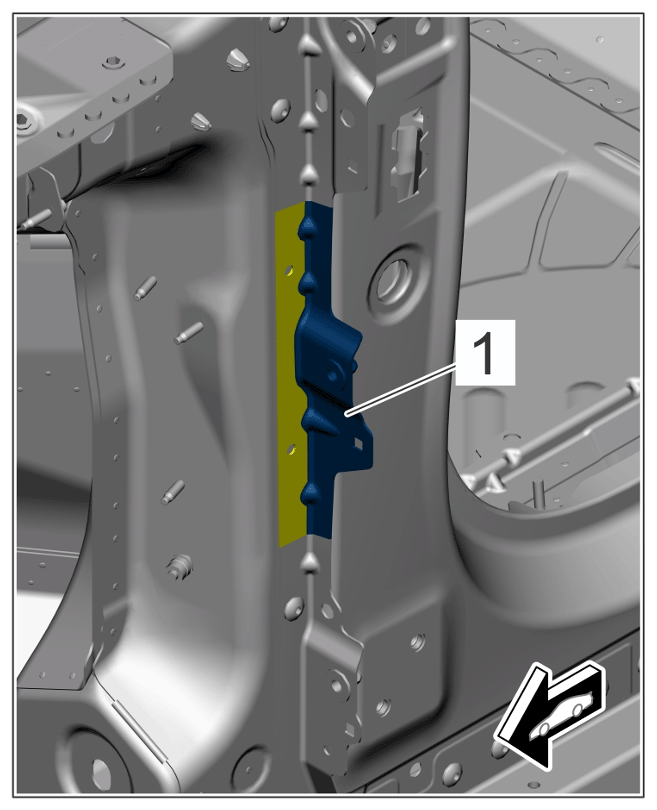

Heat bonding area using > V.A.G 1416 - hot-air blower and remove wing rail (section) -1- between the cuts.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
