Removing A-Pillar

Information

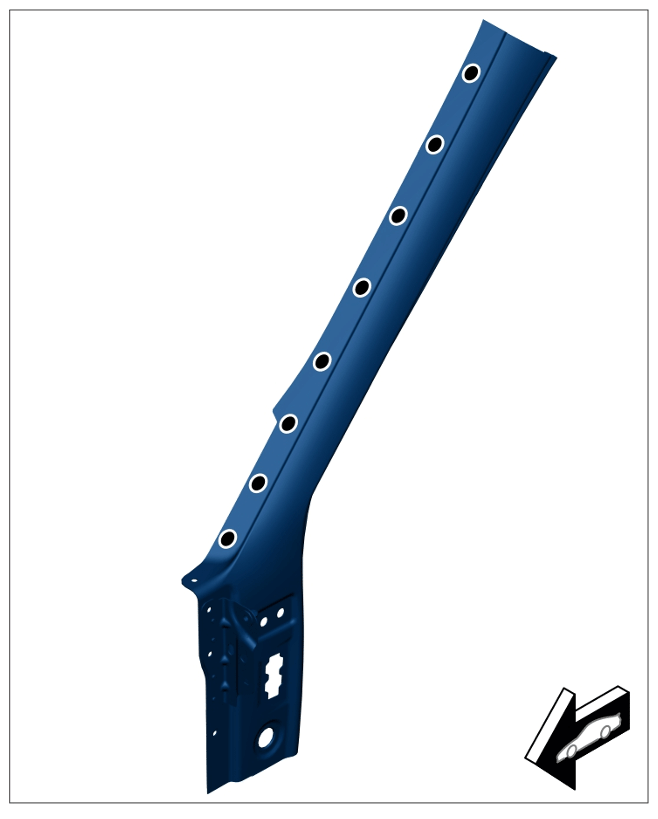

Mark cuts B and C  in accordance with the new part. Make sure to leave an overlap of approx. 30 mm with respect to the body.

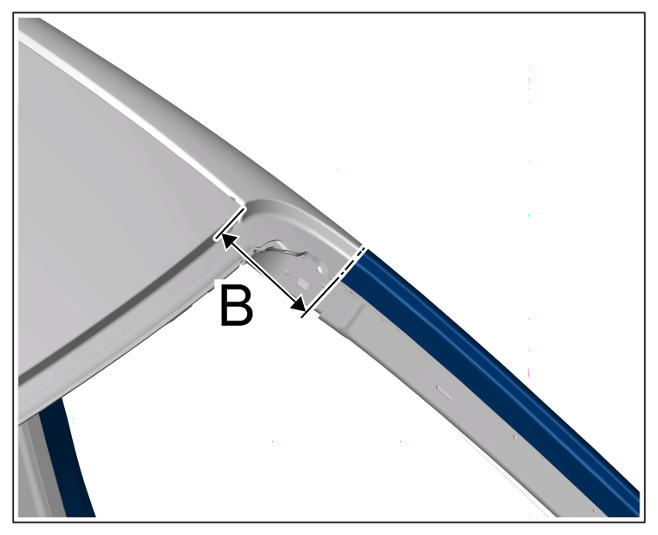

1. Mark and make cuts -B -  . > Distance 90 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cut B

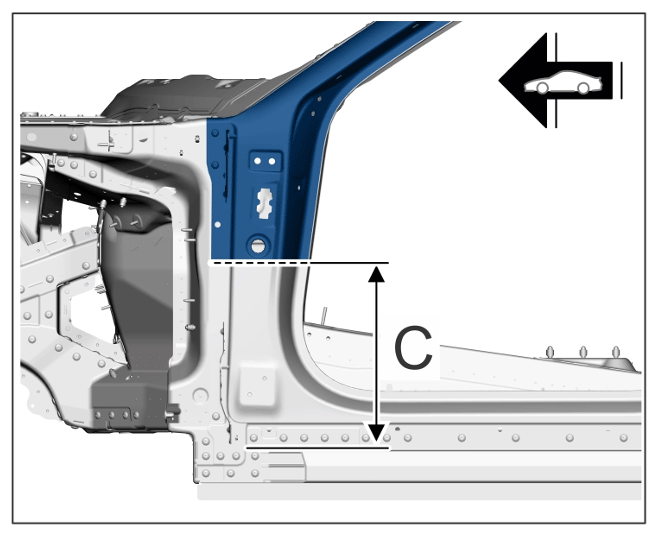

2. Mark and make cut -C -  > Distance from bottom edge of side part 340 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cut C

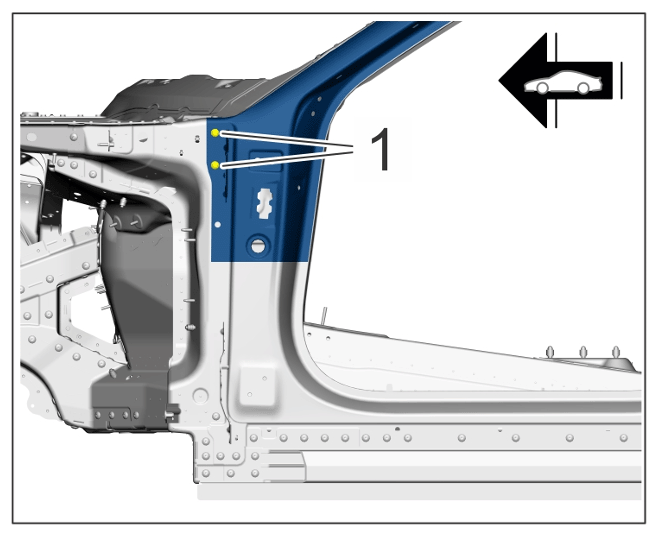

3. Unscrew self-tapping screws -1-  .

   > 5X00IN24 SETTING SELF-TAPPING SCREWS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Self-tapping screws

4. Loosen friction element welded joints.

   > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Friction element welded joints

5. Loosen folded edges.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

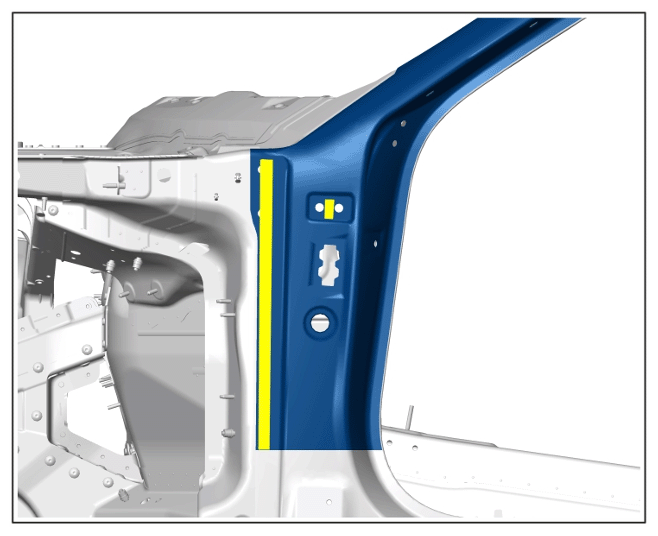

   Folded edges

   1. 5.1  Heat bonding areas using > V.A.G 1416 - hot-air blower  .
   2. 5.2  Bend up folded edges in the front door aperture using > VAS 6635 - crimping pliers set, 4-piece  .

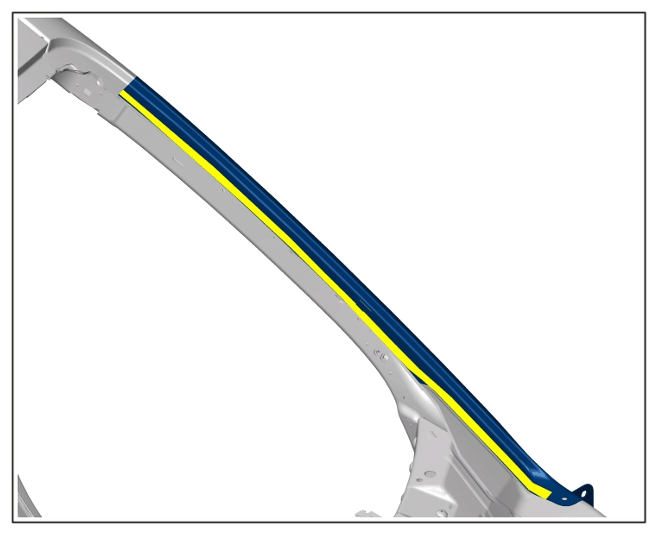

6. Heat bonding areas using > V.A.G 1416 - hot-air blower  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Upper bonding area

7. Heat bonding areas using > V.A.G 1416 - hot-air blower  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

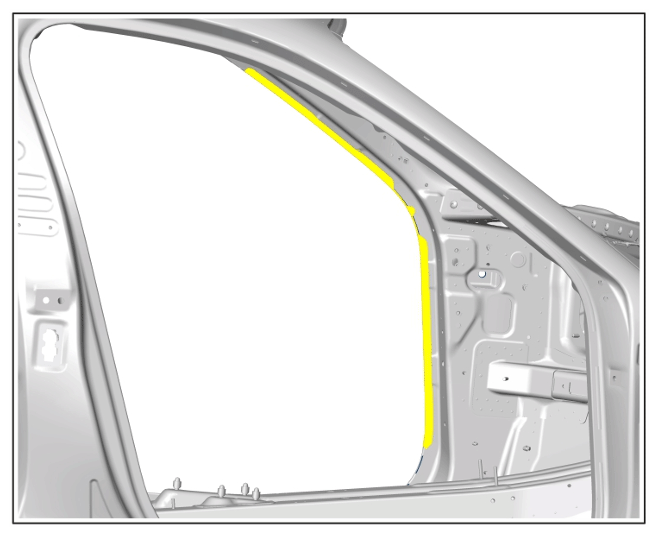

   Lower bonding area

8. Remove A-pillar.
