Preparing Wing Rail (Section) For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

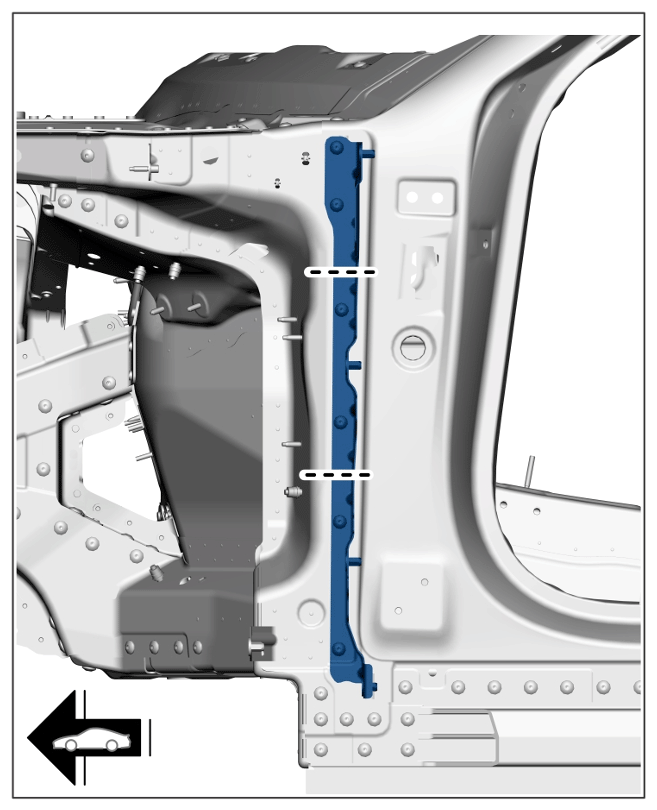

Mark and make cuts on the new wing rail. Use the remaining pieces on the body side as a guide.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cuts
Fit and secure the wing rail (section) to the body.

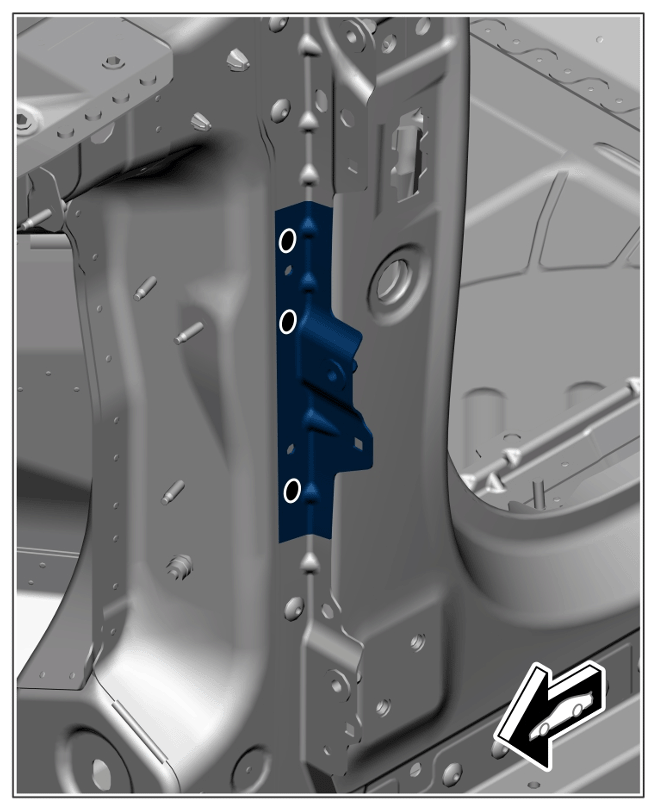

Drill holes for rivets slightly offset to the original penetrated joints using > diameter 6.6 mm through all sheetmetal plates.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bore
Remove wing rail (section).

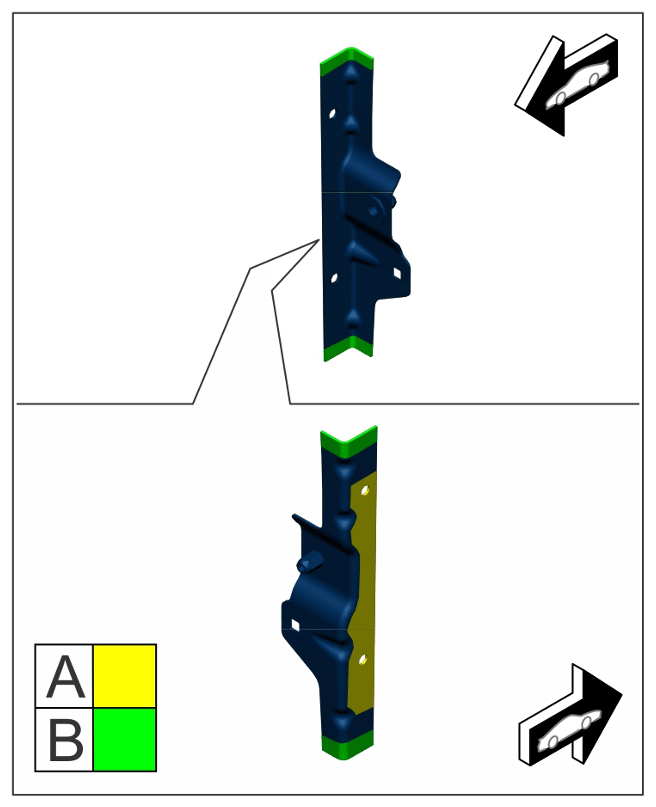

Prepare marked connection areas for joining.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas

A	Bonding and riveting. > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
B	Apply full aluminium weld. > 5X00IN10 WELDING ALUMINIUM
