Preparing Connection Area Of The Body For Installing Wing Rail (Section)
WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

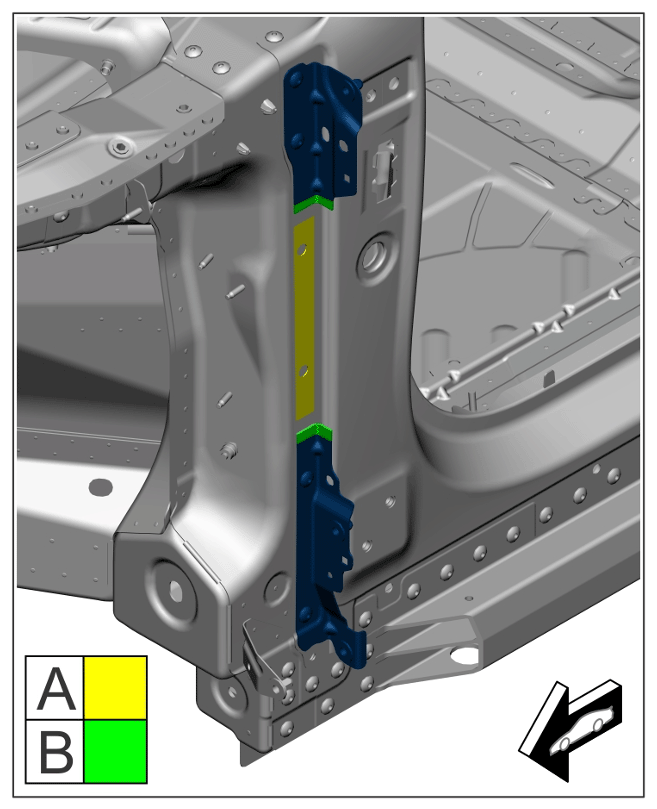

- Prepare marked connection areas for joining.
Bonding area
| A | Bonding and riveting. > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00 |
| B | Apply full aluminium weld. > 5X00IN10 WELDING ALUMINIUM |
