Preparing A-Pillar For Installation

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Remove wing rail (section) from A-pillar.

   Information

   Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

   1. 1.1  Mark and make cut.

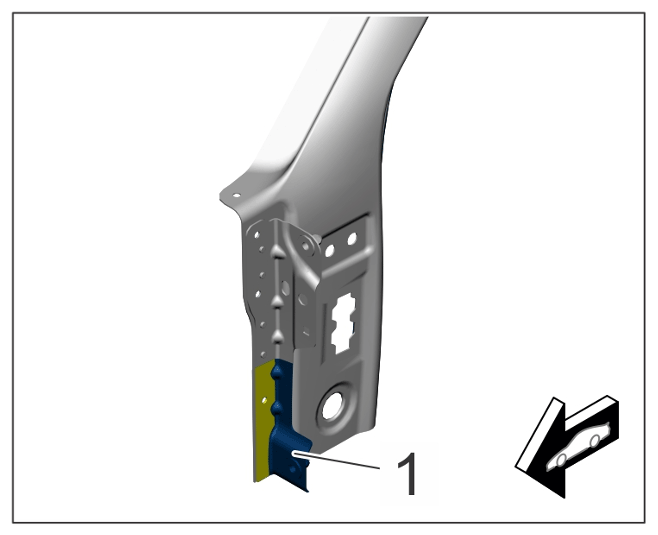

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cut

   2. 1.2  Drill out penetrated joints.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Penetrated joints

   3. 1.3  Heat bonding areas with > V.A.G 1416 - hot-air blower  and remove wing rail (section) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

2. Fit in A-pillar.

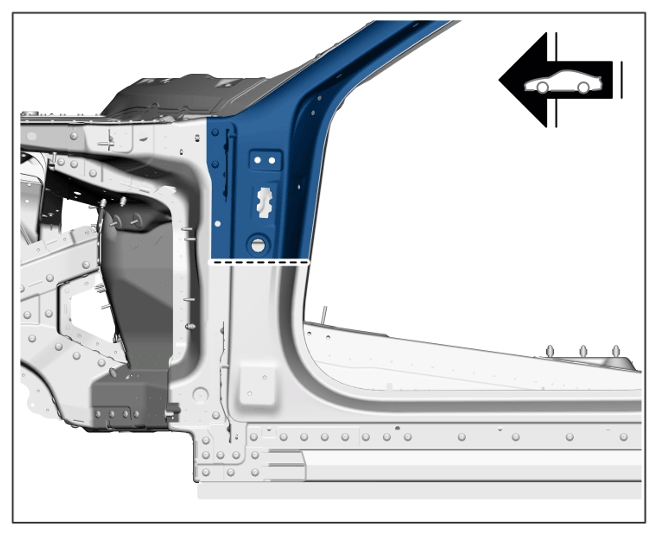

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cuts

   1. 2.1  Cut the A-pillar at the transition point to the body leaving an overlap.
   2. 2.2  Fit in A-pillar and secure it to the body.

      > 5X00IN GAP DIMENSIONS

   3. 2.3  Make cuts through the A-pillar and body in the overlap areas.
3. Remove A-pillar.
4. Cut sheetmetal insert used as a welding backing strip for the weld areas from the old A-pillar.
5. Drill holes for flow-form welding rivets.

   > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT

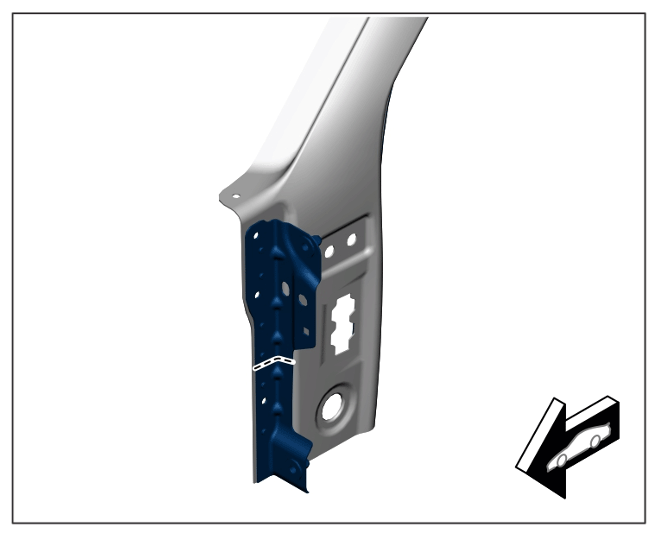

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Flow-form welding rivets

6. Prepare A-pillar for bonding.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

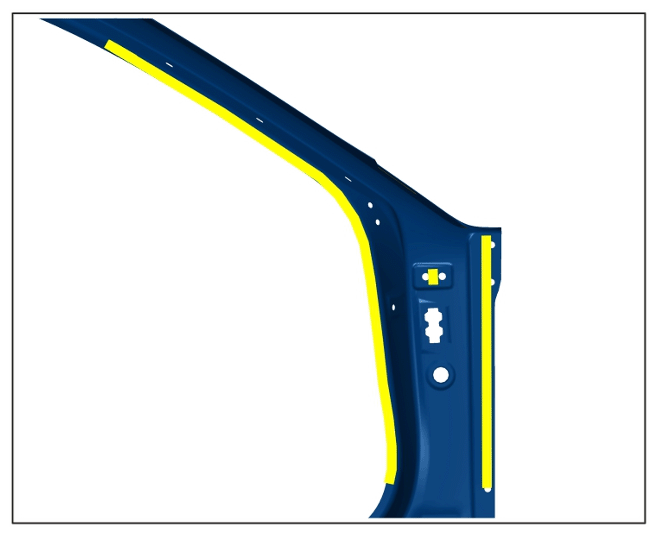

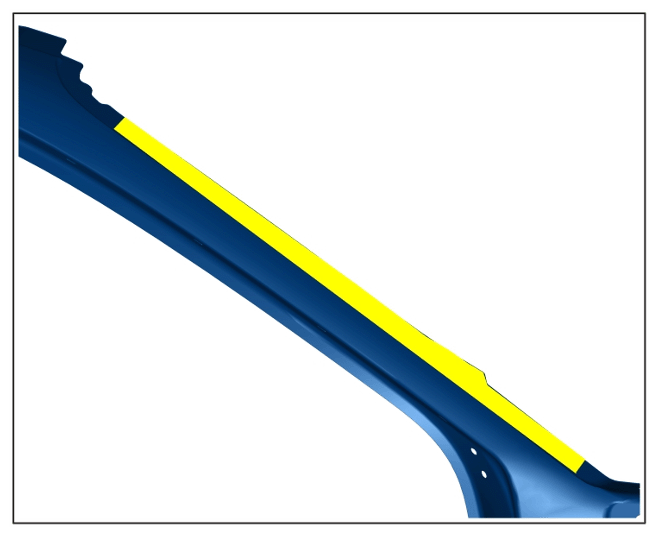

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area on inner A-pillar

7. Prepare marked area for flow-form welding and bonding.

   > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT

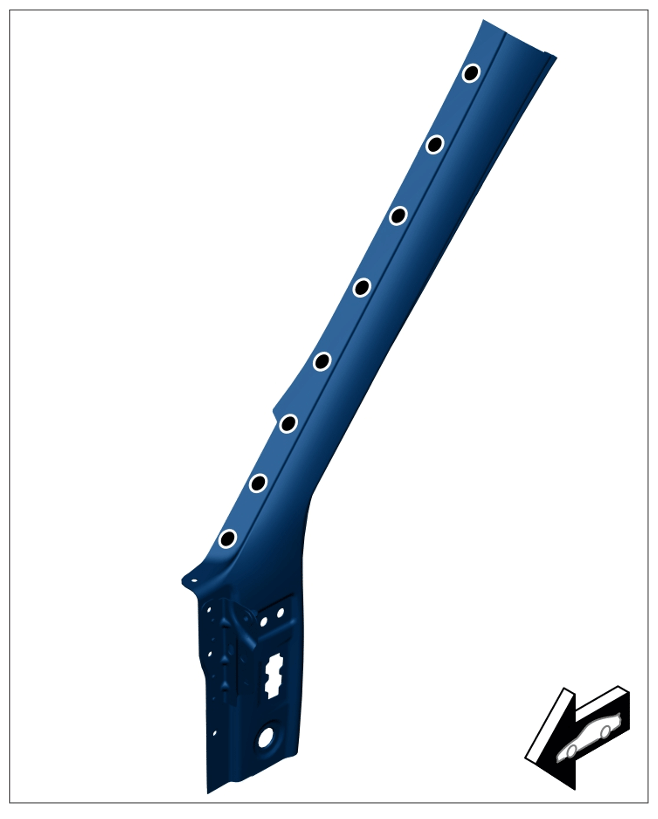

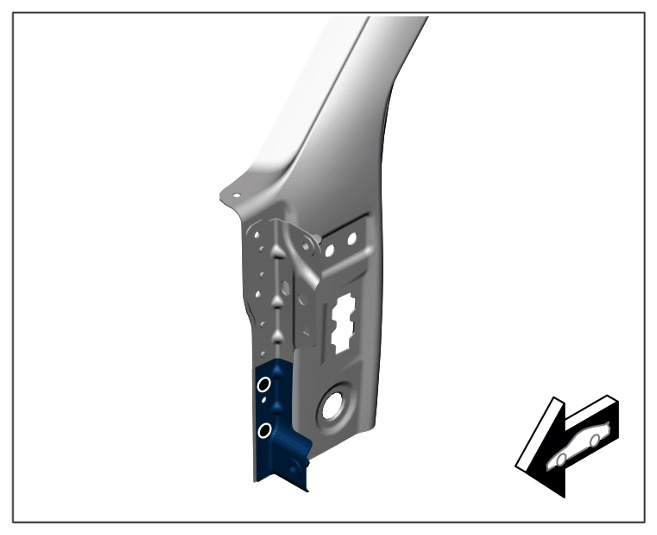

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding and rivet area

8. Prepare connection areas for applying a full aluminium weld.

   > 5X00IN10 WELDING ALUMINIUM

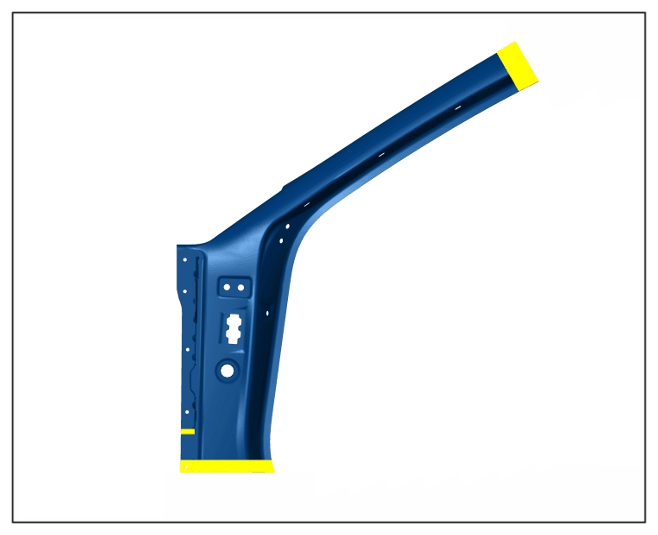

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas
