Installing A-Pillar

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

1. Tack on sheetmetal insert used as a welding backing strip on the body.

   > 5X00IN10 WELDING ALUMINIUM

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

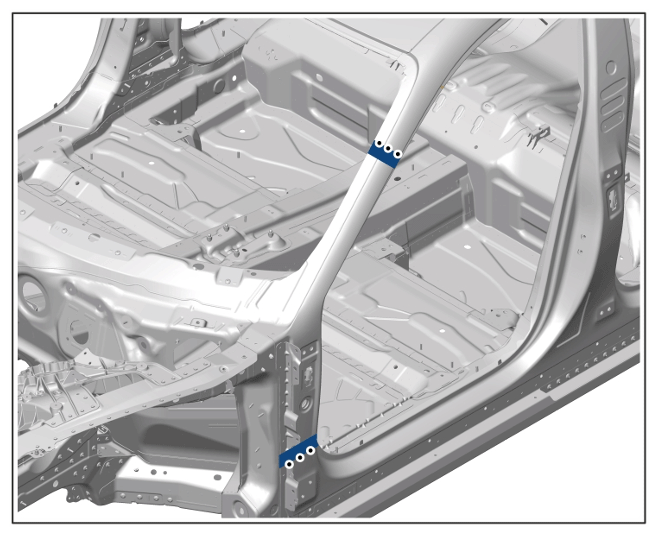

   Sheetmetal insert

2. Install A-pillar, check that it fits perfectly and secure it.
3. Weld flow-form welding rivets through bores on the body.

   > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Friction element welded joints

4. Remove A-pillar.

   Information

   • Apply adhesive evenly over the entire bonding surface.
5. Apply adhesive on bonding areas of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   A-pillar

   Information

   • Apply adhesive evenly over the entire bonding surface.
6. Apply adhesive on bonding areas of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

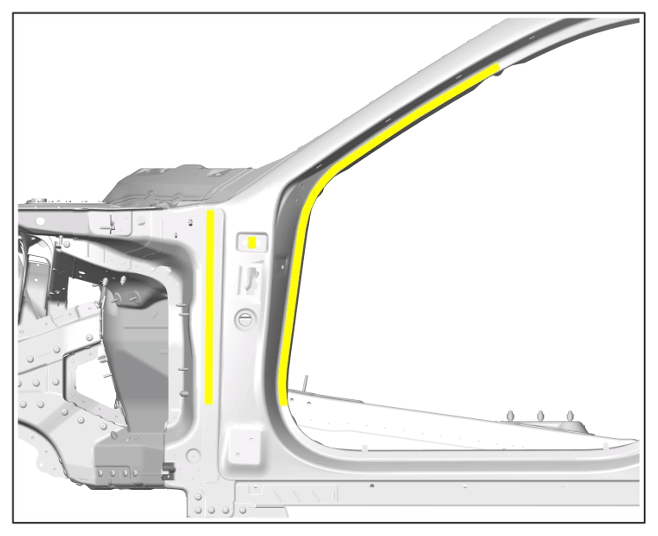

   Bonding areas

   Information

   • Apply adhesive evenly over the entire bonding surface.
7. Apply adhesive on A-pillar.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

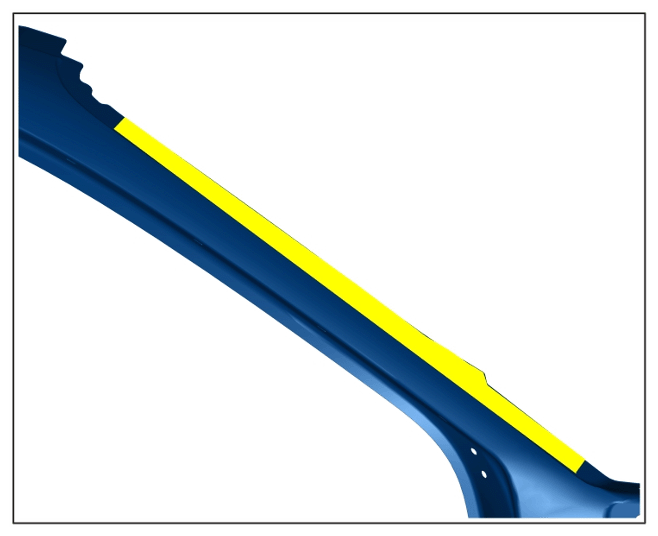

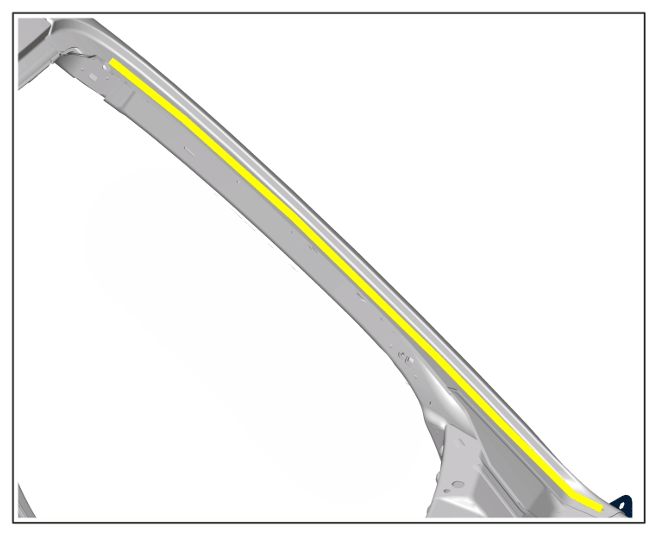

   Bonding area

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

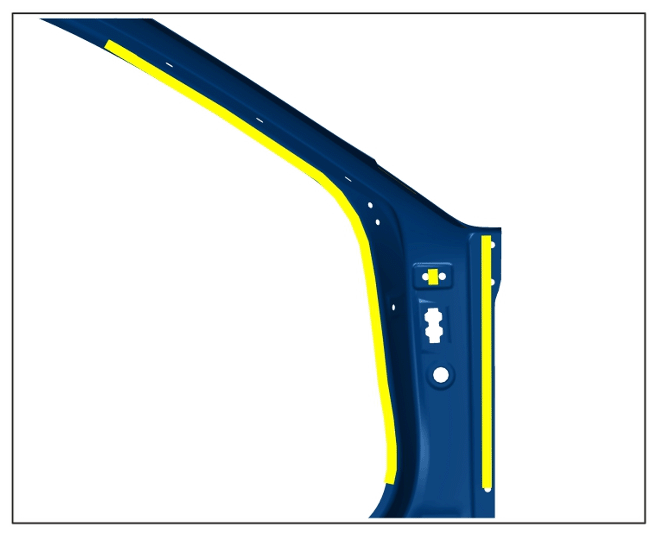

   Bonding area

   1. 7.1  Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

8. Install A-pillar.
9. Press flow-form welding rivets.

   > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

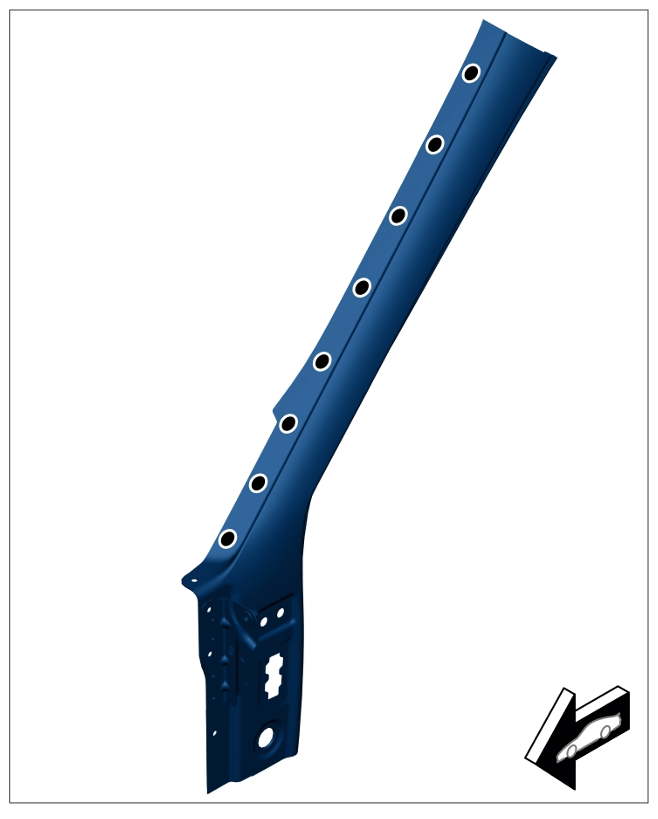

   Flow-form welding rivets

10. Screw in self-tapping screws -1-  .

    > 5X00IN24 SETTING SELF-TAPPING SCREWS

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

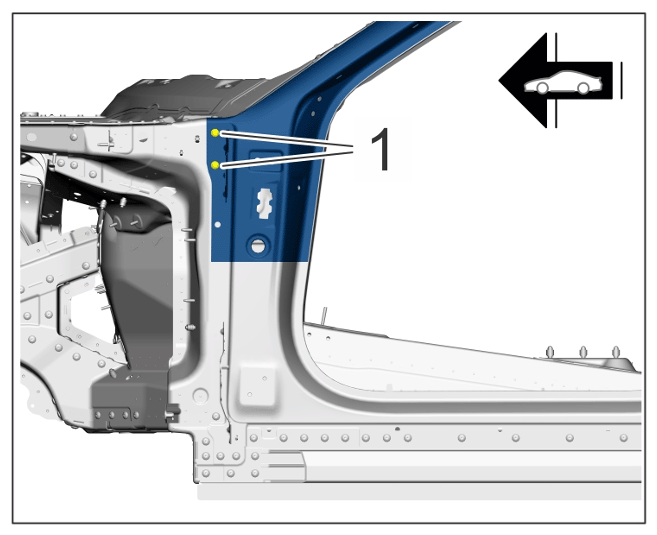

    Self-tapping screws

11. Apply full aluminium weld on A-pillar.

    > Welding aluminium

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

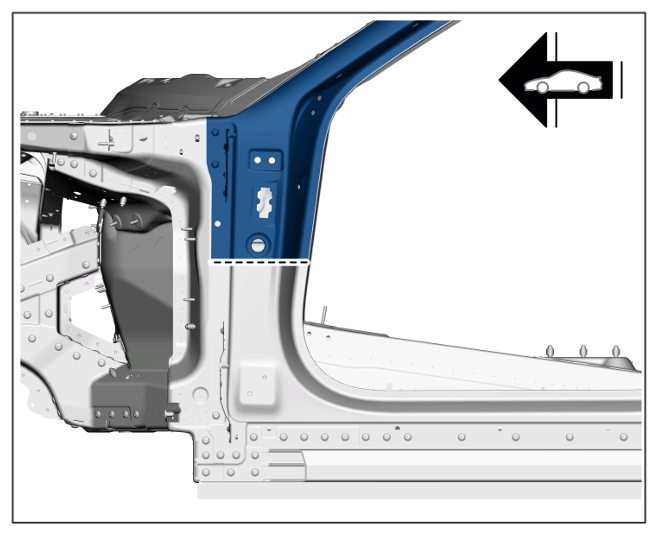

    Welding area

12. Bend over folded edges in the front door aperture using > VAS 6635 - crimping pliers set, 4-piece  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

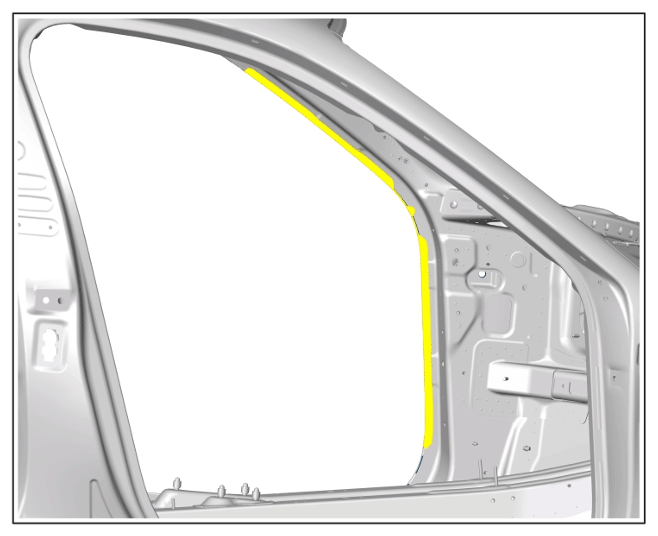

Folded edges
