Removing Rear Cross Member (Bottom Part)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

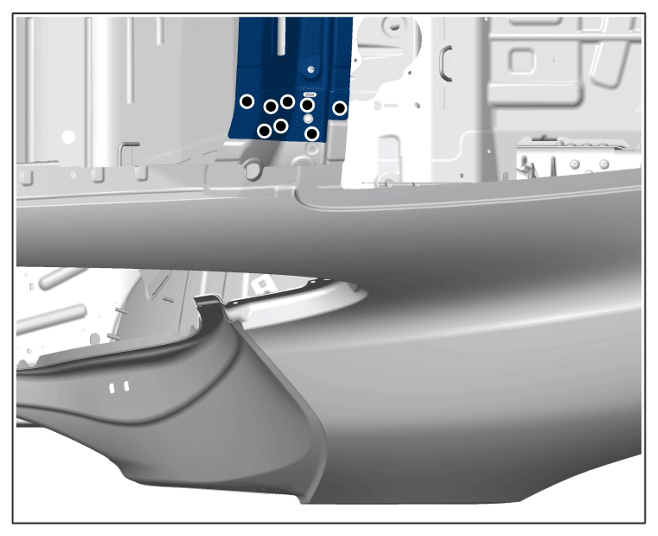

Remove punch rivets using > VAS 852 001 - dent removal unit and > VAS 6790 - compact booster .
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Punch rivets

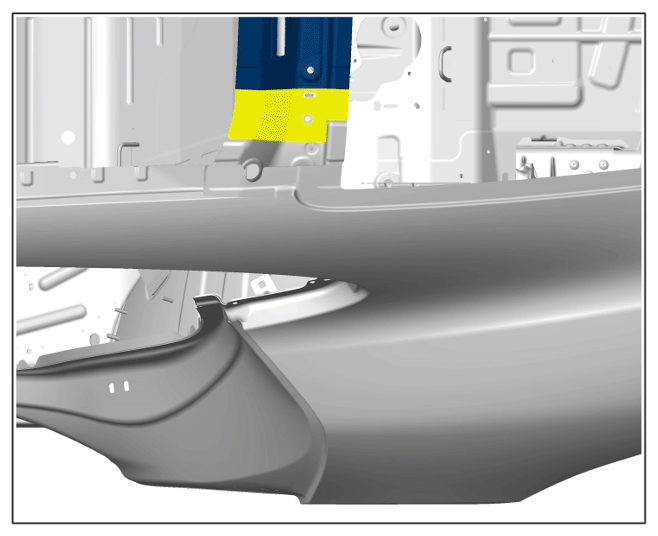

Heat bonding area using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
Remove rear cross member (bottom half).
