Removing Outer Side Panel Section

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Remove punch rivet using > VAS 852 001 - dent removal unit, aluminium and > VAS 6790 - compact booster .
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

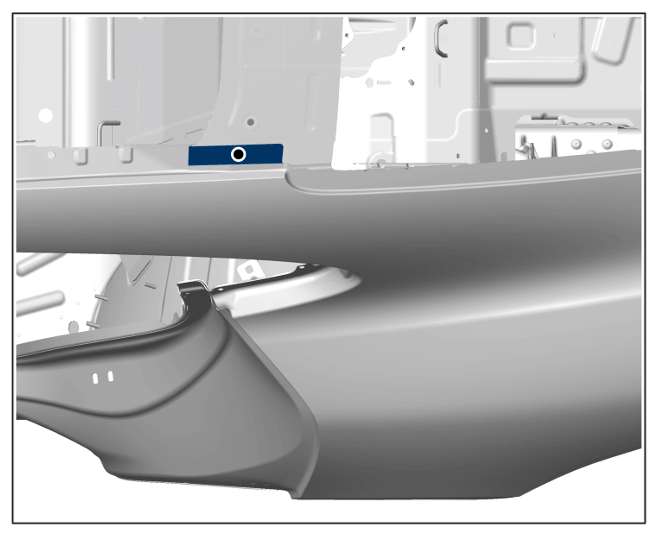

Punch rivet

Information

Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

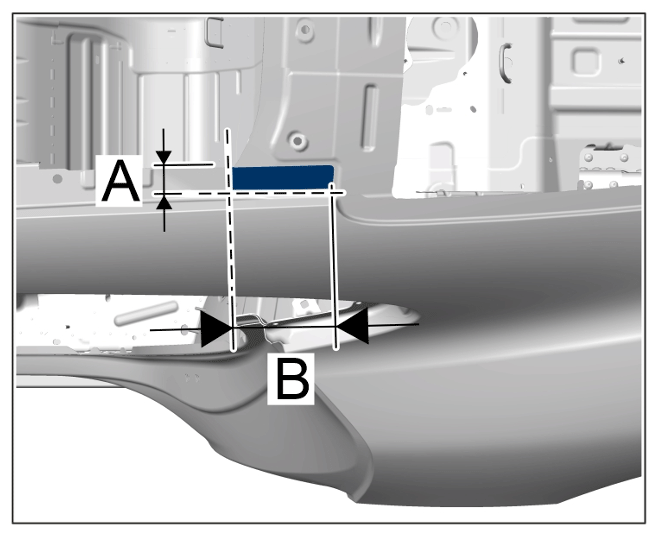

Mark and make cuts -A- and -B- .
> Distance 30 mm

> Distance 123 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Separation points
Remove outer side panel section.
