Installing Outer Side Panel Section

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

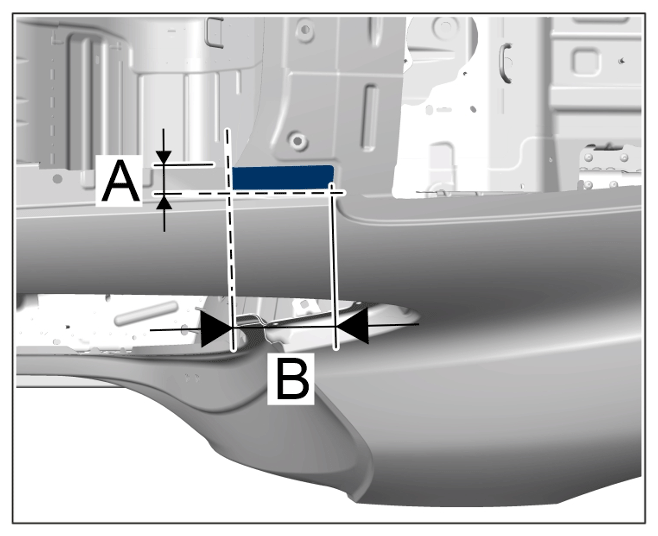

Check that the outer side panel fits perfectly and fasten it to the body.
Apply a full aluminium weld to the outer side panel section.
> 5X00IN10 WELDING ALUMINIUM

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Applying full aluminium weld

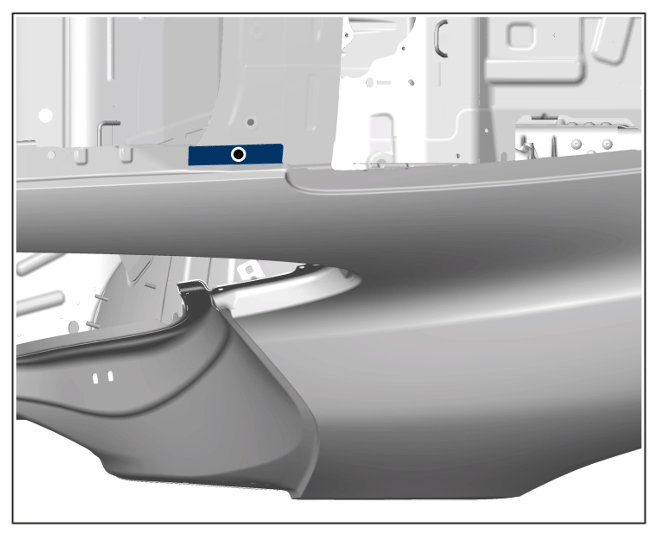

Rivet in outer side panel section.
> BLIND RIVET 999.190.228.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rivet
