Removing Roof Reinforcement

Information

• Some of the repair illustrations show only one side of the vehicle or a similar component.
• Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

1. Remove punch rivets using > VAS 852 001 - dent removal unit  and > VAS 6790 - compact booster  .

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   The number of rivets varies between the Saloon and Cross Turismo.

   1. 1.1 Punch rivets on Saloon.

      Remove punch rivets.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

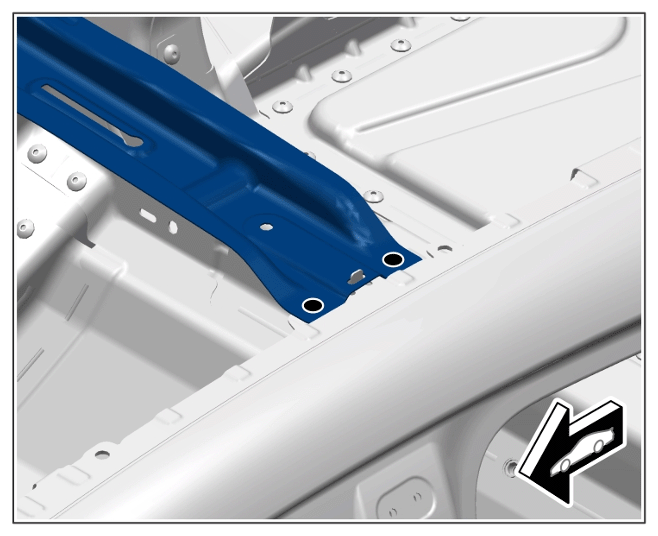

      Punch rivets on Saloon

   2. 1.2 Punch rivets on Cross Turismo.

      Remove punch rivets.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

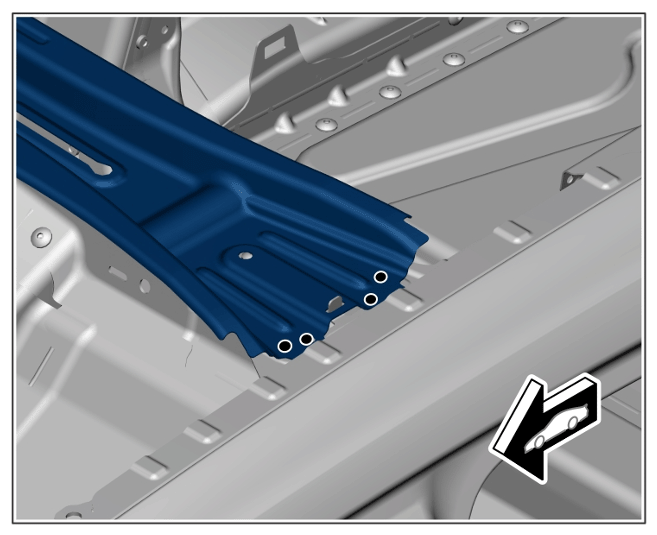

   Punch rivets on Cross Turismo

2. Make a rough cut through the roof reinforcement.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rough cut

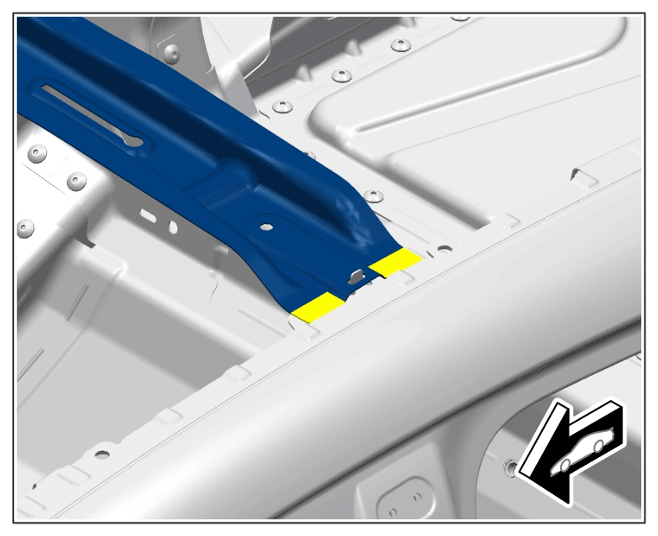

3. Heat the marked bonding areas using > V.A.G 1416 - hot-air blower  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area

4. Remove the two roof reinforcement parts.
