Removing Top Half Of Roof Cross Member At The Front

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

  1. Drill out spotwelds using > VAS 882 001 - Spot-weld remover  .

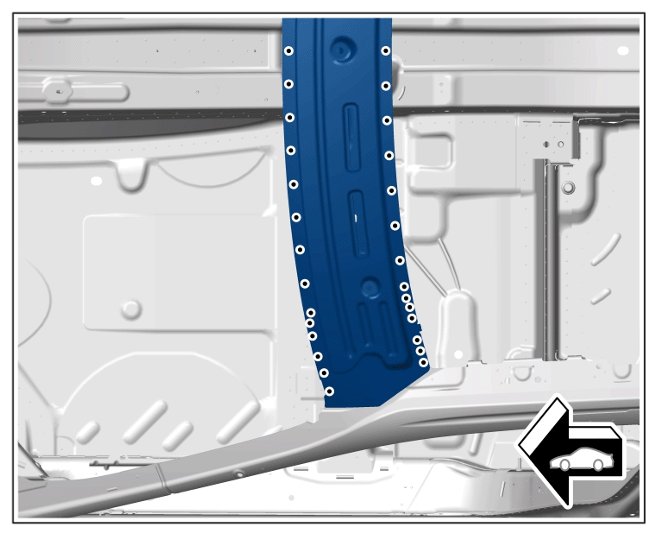

    G15560781Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spotwelds

  2. Heat bonding area using > V.A.G 1416 - Hot-Air Blower  .

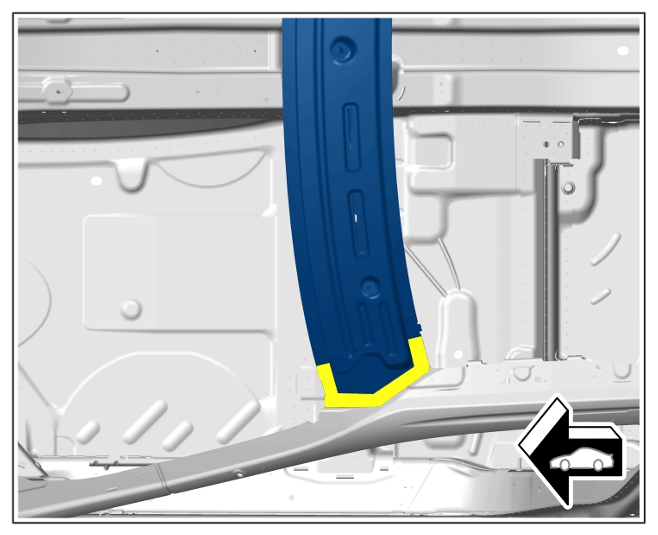

    G15560782Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Bonding area

  3. Remove top half of roof cross member at the front.
