Installing Top Half Of Roof Cross Member At The Front

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

Apply adhesive evenly over the entire bonding surface.

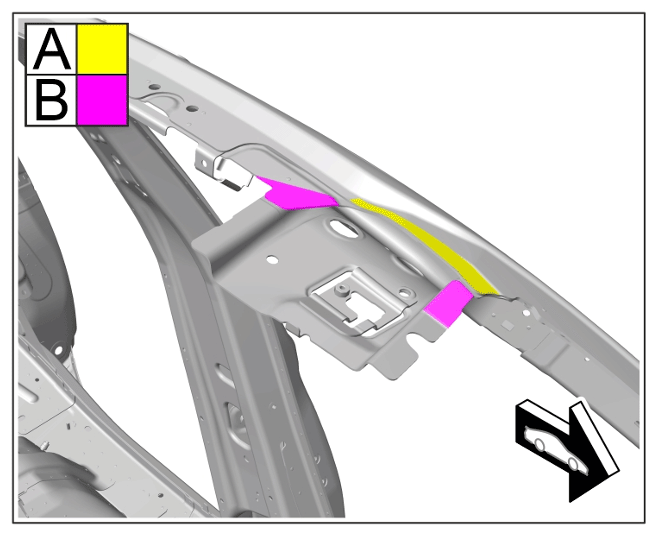

Apply adhesive on bonding area -A- of the body.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area

Information
- Apply adhesive evenly over the entire bonding surface.

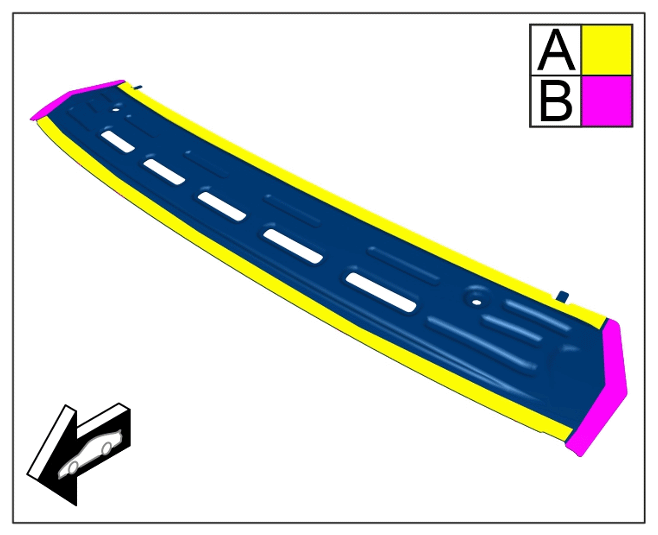

Apply adhesive on bonding area -B- .
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding area
1. 2.1 Also apply a bead of adhesive all around the bonding surface.
  > Application depth 3 mm

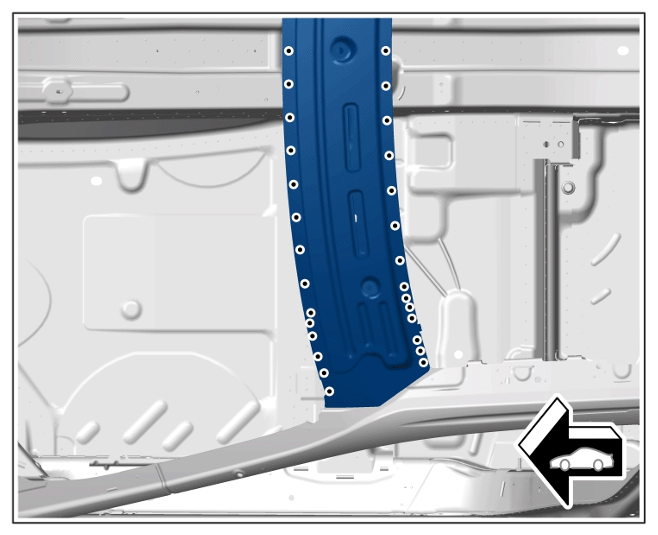

Resistance spot-weld top half of roof cross member at the front.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Resistance spot-welding
