Installing Outer Roof Pillar Section

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Some of the repair illustrations show only one side of the vehicle or a similar component.
Naturally, some steps also have to be performed on the opposite side of the vehicle as well.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Tack on sheetmetal insert used as welding backing strip on the body.
> 5X00IN10 WELDING ALUMINIUM

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

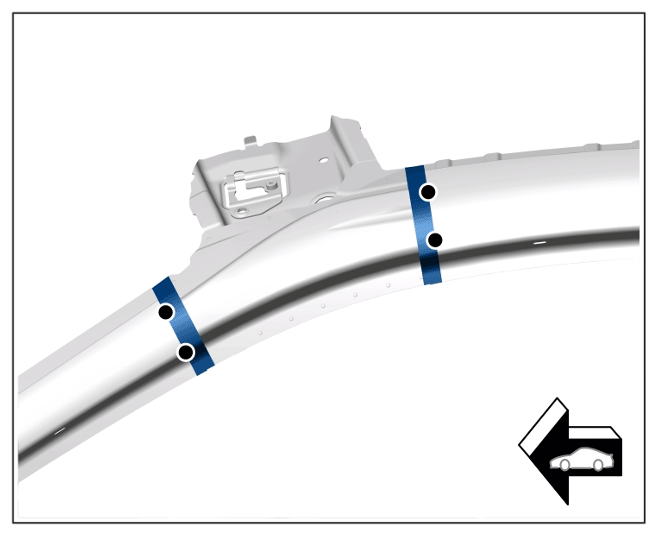

Welding backing strip
Install outer roof pillar section and check that it fits perfectly.
> 5X00IN GAP DIMENSIONS
Weld flow-form welding rivet -A- through bore on the body.
> 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

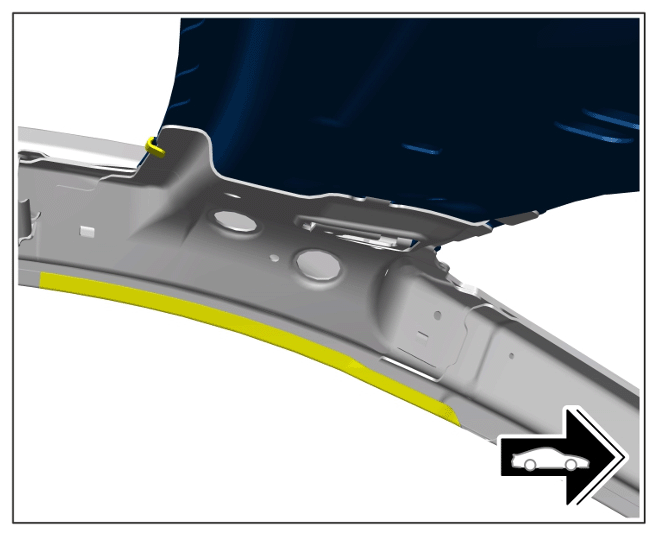

Flow-form welding rivet
Remove outer roof pillar section.
Information
- Apply adhesive evenly over the entire bonding surface.
Apply adhesive on bonding areas -A- of the body.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 0, 5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

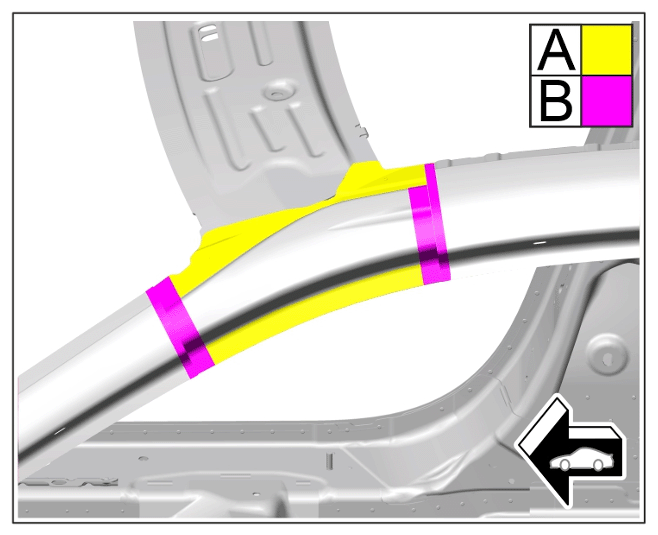

Bonding areas

Information
- Apply adhesive evenly over the entire bonding surface.
Apply adhesive on bonding areas -A- of outer roof pillar section.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

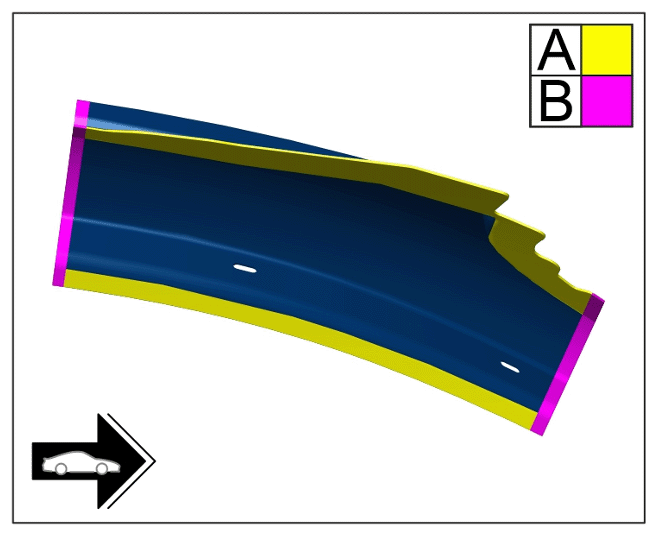

Bonding areas
1. 6.1 Also apply a bead of adhesive all around the bonding surface.
  > Application depth 3 mm
Rivet in outer roof pillar section.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

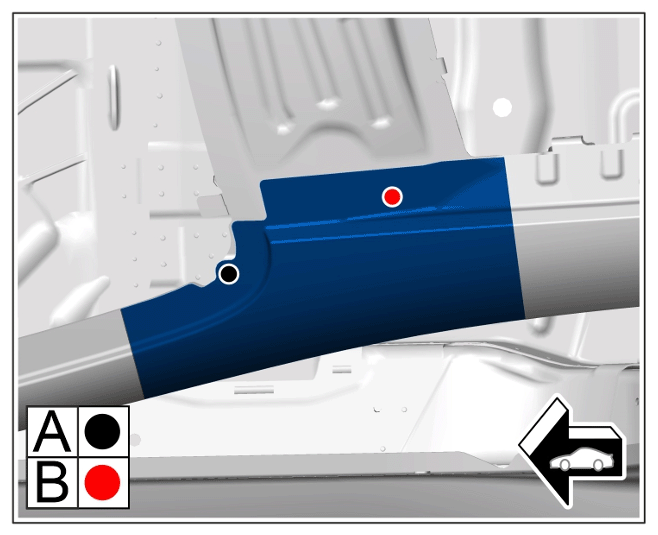

Joint connections
1. 7.1 Press flow-form welding rivet -A- .
  > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT
2. 7.2 -B- > BLIND RIVET 999.190.228.01
Apply a full aluminium weld to the outer roof pillar section.
> 5X00IN10 WELDING ALUMINIUM

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

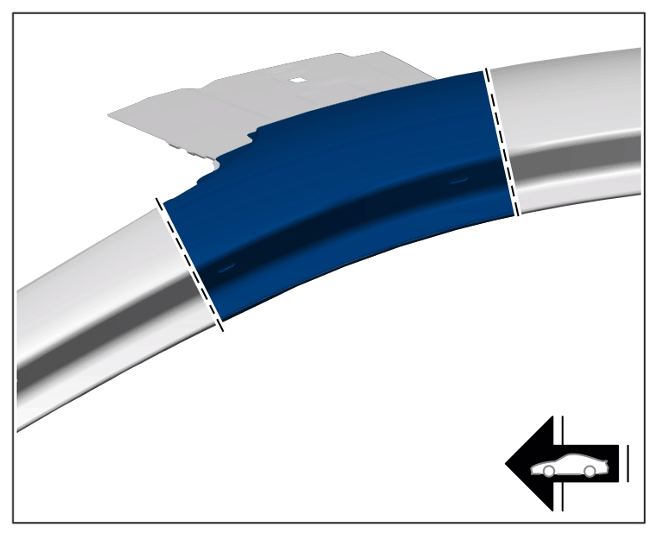

Applying full aluminium weld
Fold over seams using > VAS 6635 - Crimping pliers set, 4-piece .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seams
