Section 2 (Collision - 51 Body Center/Roof/Frame (Y1A))
>>
5107 Front Roof Cross Member
>>
WM, 510755 Replacing Front Roof Cross Member
>>
Installation Position
Installation Position
WARNING:
This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

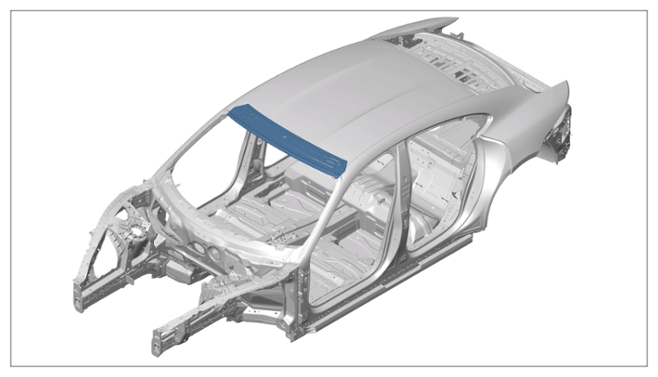

Fig 1: Front Roof Cross Member Component Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation position
