Installing Roof Pillar (Inner Reinforcement)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Install roof pillar (inner reinforcement) and check that it fits perfectly.
Information
- Apply adhesive evenly over the entire bonding surface.

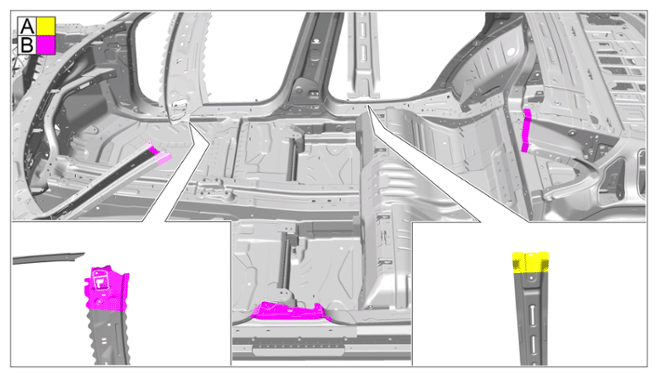

Apply adhesive on bonding areas -LHD vehicle - of the body.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

> Application depth 0.5 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas

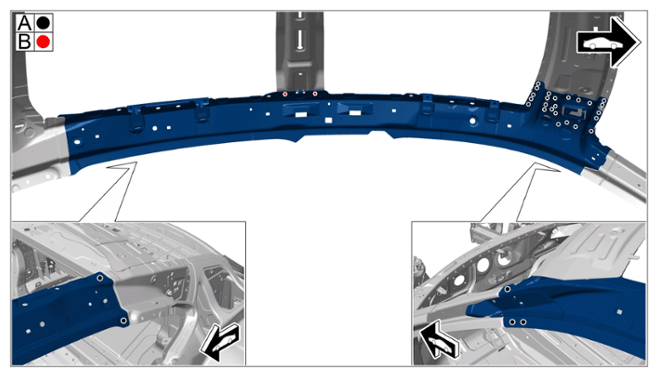

Resistance spot-weld the roof pillar (inner reinforcement) to -LHD vehicle - using steel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Joint connections

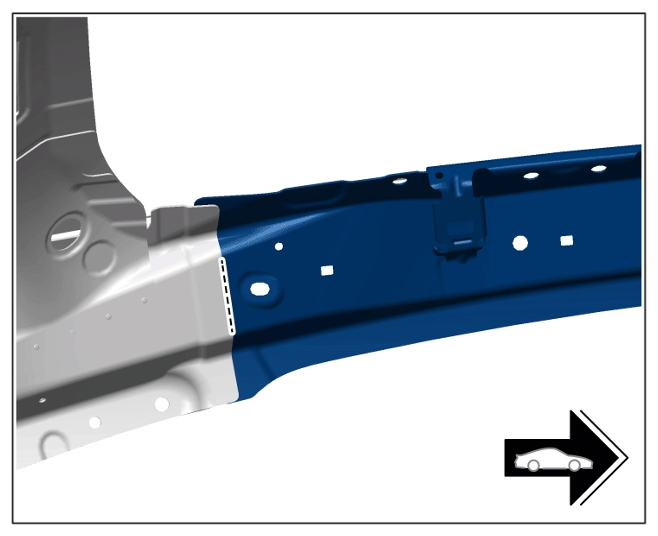

Rivet in roof pillar (inner reinforcement).
> BLIND RIVET 999.190.229.01

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Blind rivets

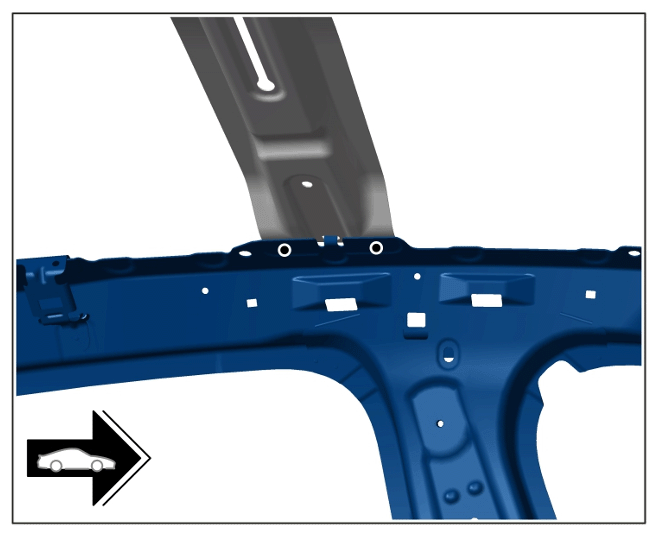

Apply a full steel weld to the roof pillar (inner reinforcement).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

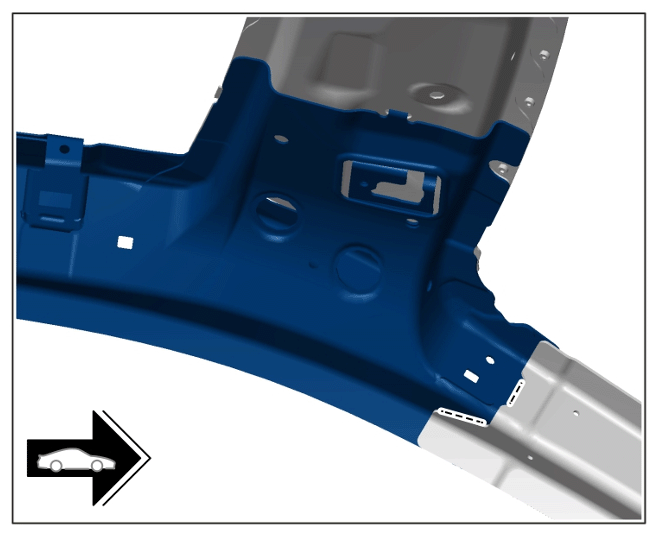

Welded seam

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seams
