Preparing Connection Areas Of The Body For Installing The Roof Rail (Outer Reinforcement)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Align contact surfaces and connections of the body.
De-burr connection points and prepare them for joining.
Prepare connection areas of the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

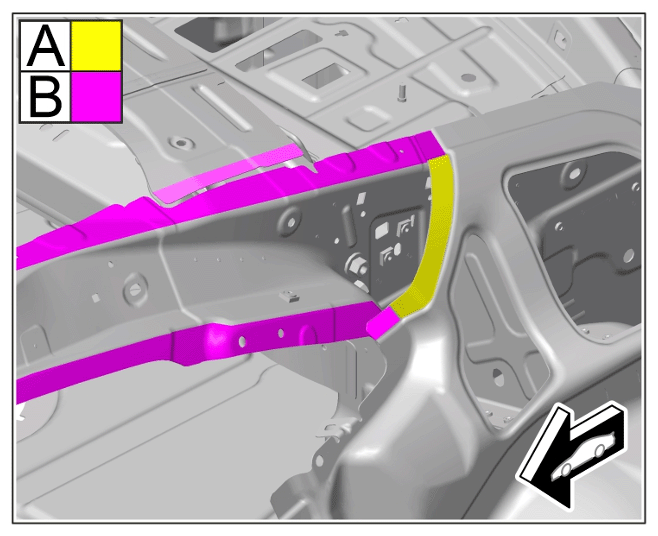

Connection areas
1. 3.1 Prepare marked connection area -A- of body for full steel welding.
2. 3.2 Prepare marked connection areas -B- of the body for bonding and resistance spot-welding.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
Prepare connection areas of the body.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

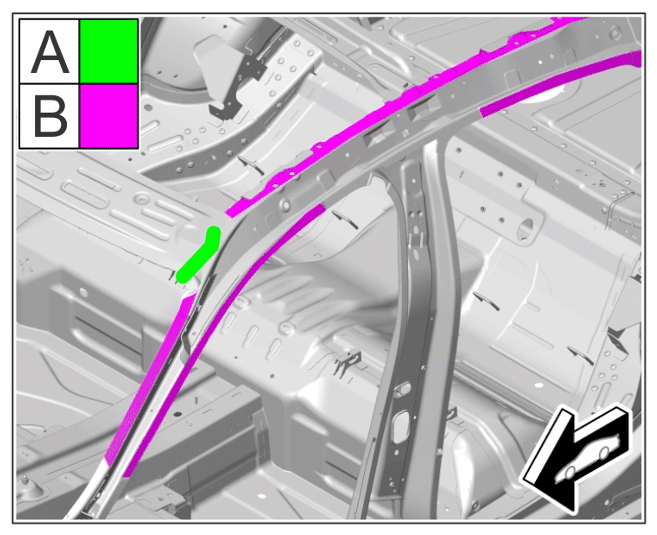

Connection areas
1. 4.1 Prepare marked areas -A- for gluing and riveting.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
2. 4.2 Prepare marked areas -B- for bonding and resistance spot welding.
  > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00
