Preparing Connection Areas Of Body For Installing Outer Roof Pillar

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Align contact surfaces and connections of the body.
> 5X00IN61 WORK SEQUENCE FOR ACCIDENT REPAIRS
De-burr connection points and prepare them for joining.
Prepare the marked areas for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

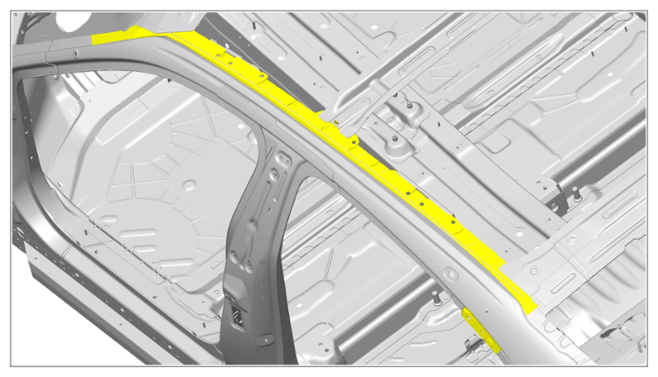

Bonding area on body
Prepare the connection surfaces in the marked areas for full seam aluminium welding.
> 5X00IN10 WELDING ALUMINIUM

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

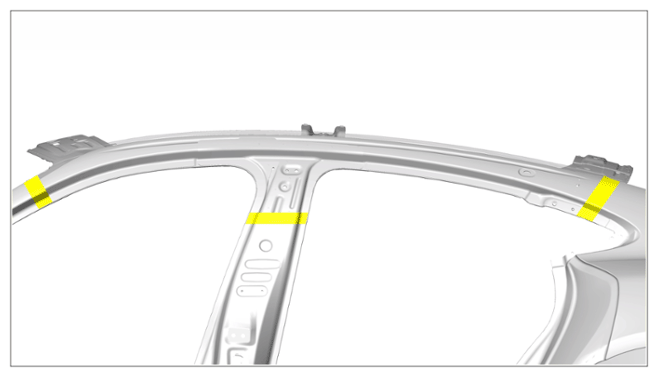

Welding area on body
