Installing Outer Roof Pillar

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

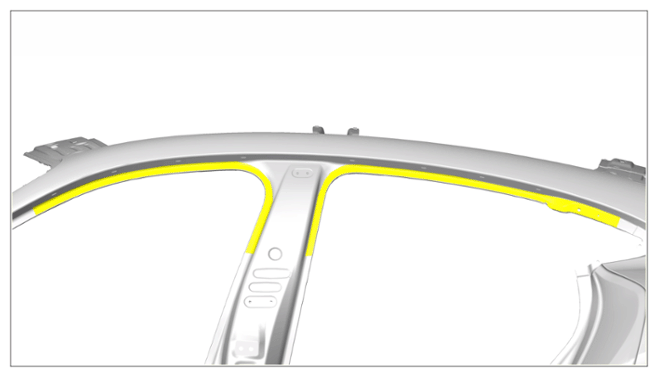

1. Tack on sheetmetal insert used as welding backing strip on the body.

   > 5X00IN10 WELDING ALUMINIUM

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

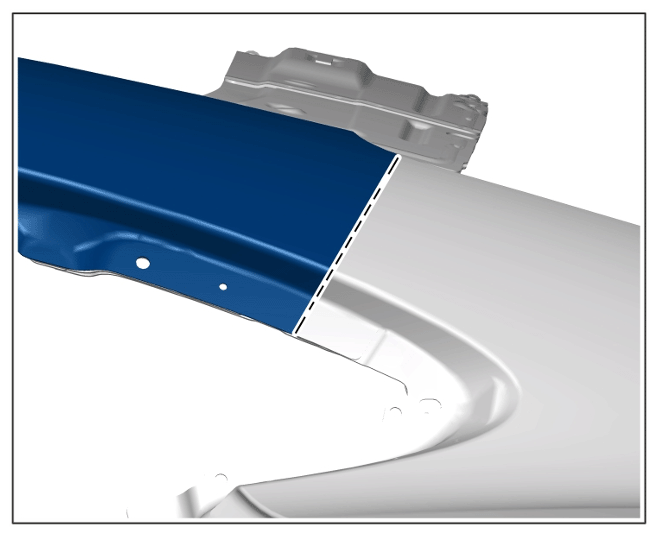

   Sheetmetal insert

2. Install outer roof pillar, check that it fits perfectly and secure it.

   > 5X00IN GAP DIMENSIONS

3. Weld flow-form welding rivets through bores on the body.

   > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT

   > RIVET 9A7.008.606.00

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

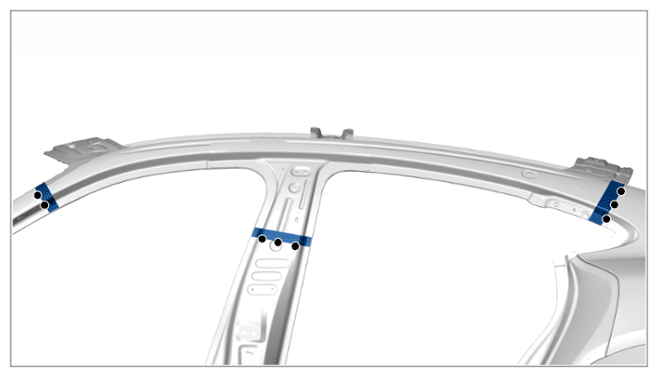

   Friction element welded joint

4. Remove outer roof pillar.

   Information

   • Apply adhesive evenly over the entire bonding surface.
5. Apply adhesive on the joint area of the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

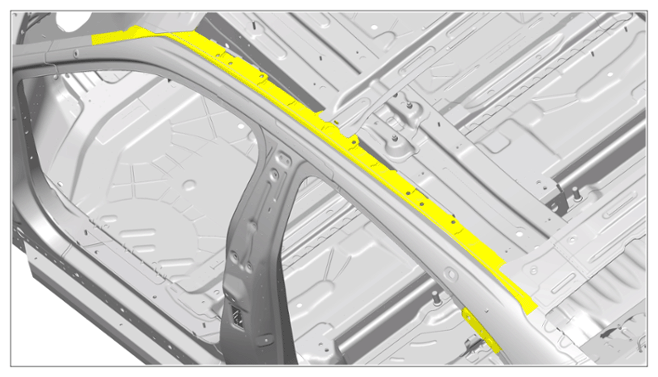

   Bonding area on body

6. Apply adhesive on outer roof pillar.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

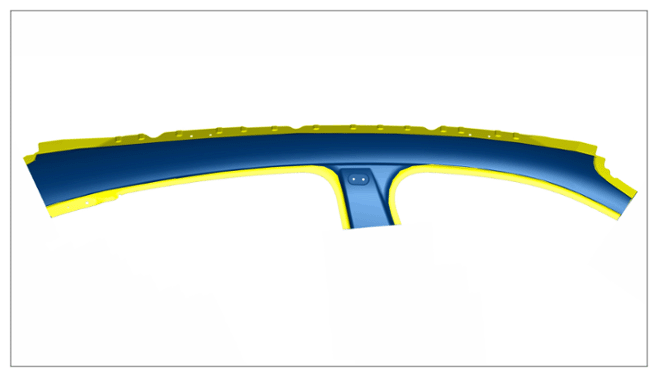

   Outer roof pillar bonding area

   1. 6.1  Also apply a bead of adhesive all around the bonding surface.

      > Application depth 3 mm

7. Secure outer roof pillar.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

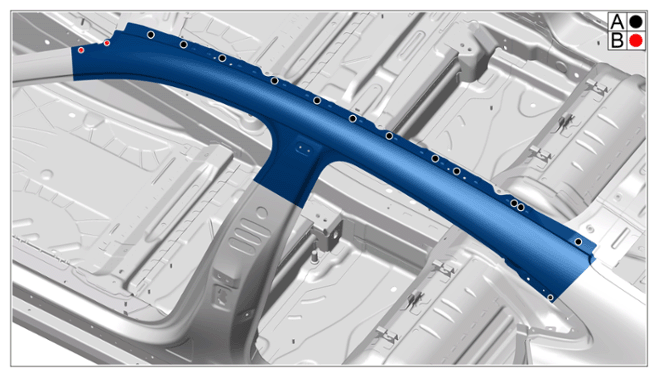

   Rivet area

   1. 7.1  Rivet in flow-form rivets -A-  .

      > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

      > Flow-form rivet 97A.008.473.00

   2. 7.2  Press flow-form welding rivets -B-  .

      > 5X00IN29 REPLACING FRICTION ELEMENT WELDED JOINT

8. Apply full aluminium weld to outer roof pillar.

   > 5X00IN10 WELDING ALUMINIUM

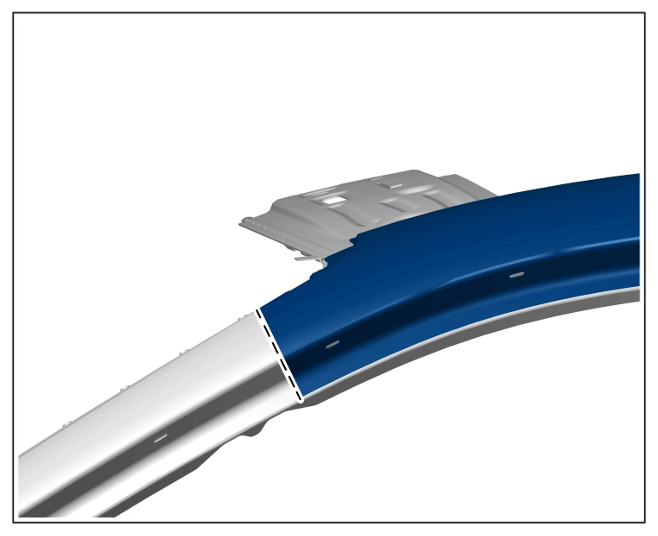

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Welding range

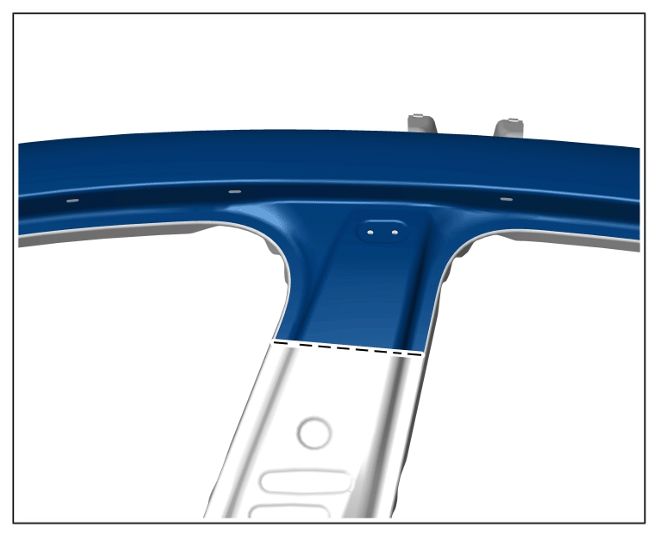

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Welding range

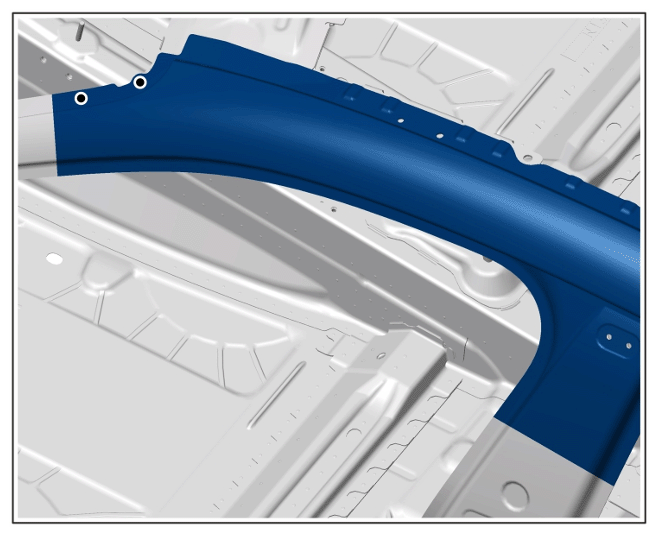

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Welding range

9. Bend over edges in the door aperture using > VAS 6635 - Crimping pliers set, 4-piece  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding and seam areas
