Removing Roof

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

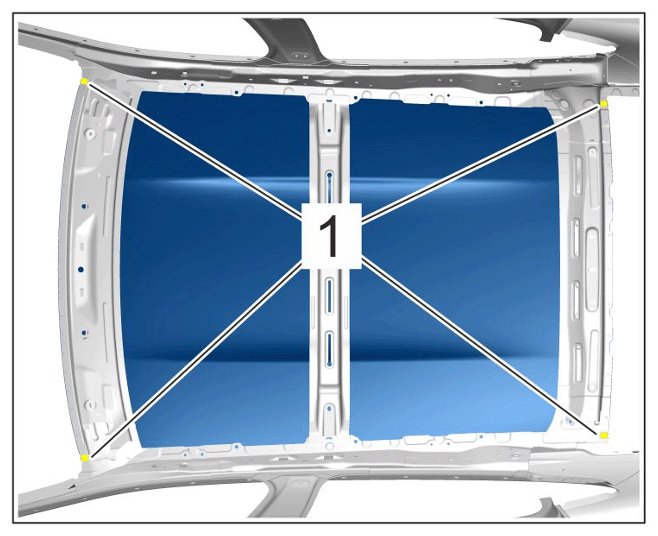

Remove punch rivets using > VAS 6790 - compact booster .
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

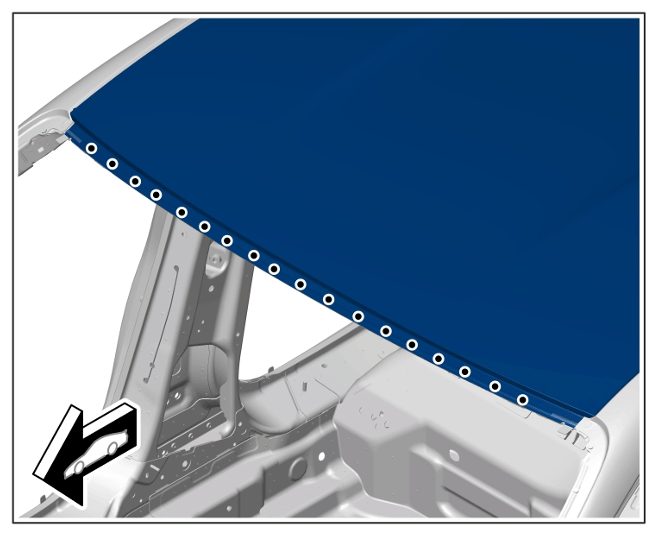

Front of roof

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

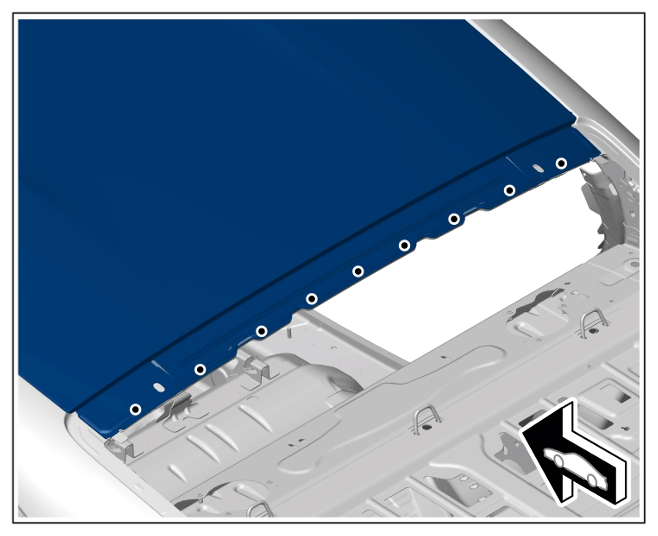

Rear of roof
Bend up seams -1- using > VAS 6635 - 4-piece crimping pliers set .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seams

Information

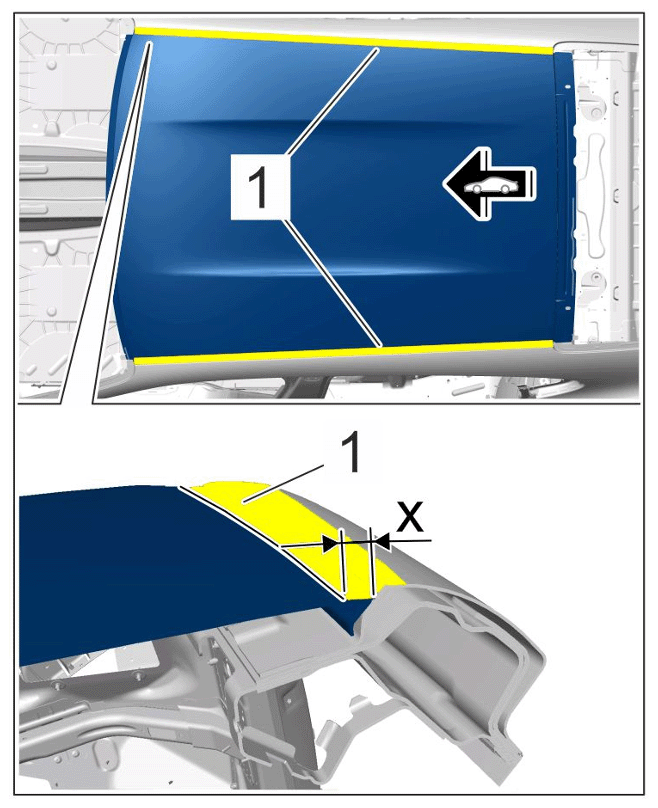

Adhesive tape serves as cut line.
Stick on adhesive tape -1- along the edge of the roof on both sides at dimension -X - . > Distance 5 mm + 2 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Roof

Information
- Only cut through the top plate. Make sure not to damage the plate underneath when doing this.
Make cut on both sides.

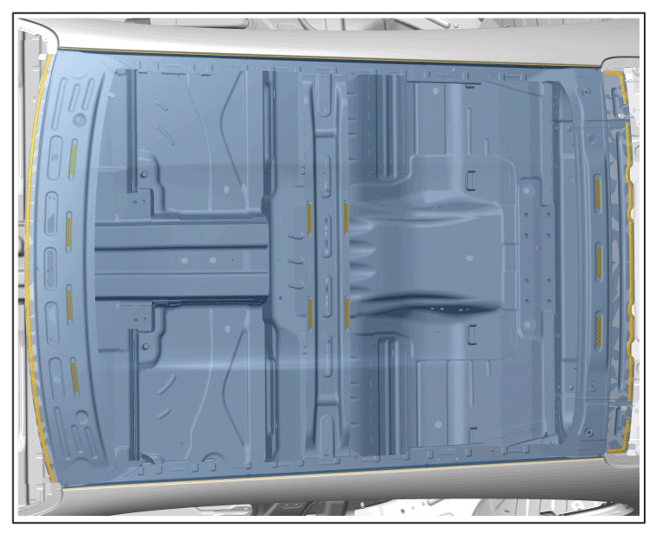

Heat bonding areas using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Connection areas

Information

The help of another person is required.
Remove the roof.
Information

During separation make sure that the components beneath are not damaged.

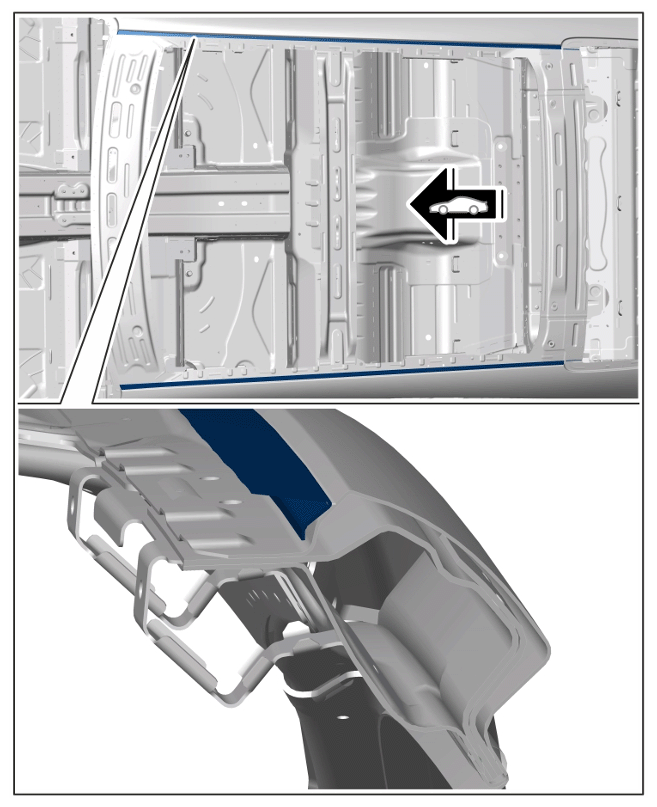

Remove remaining pieces of roof.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remaining pieces of roof
1. 7.1 Grind off remaining pieces of roof from the side panels.
2. 7.2 Remove remaining pieces of roof.
