Preparing Roof For Installation

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Prepare marked areas for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

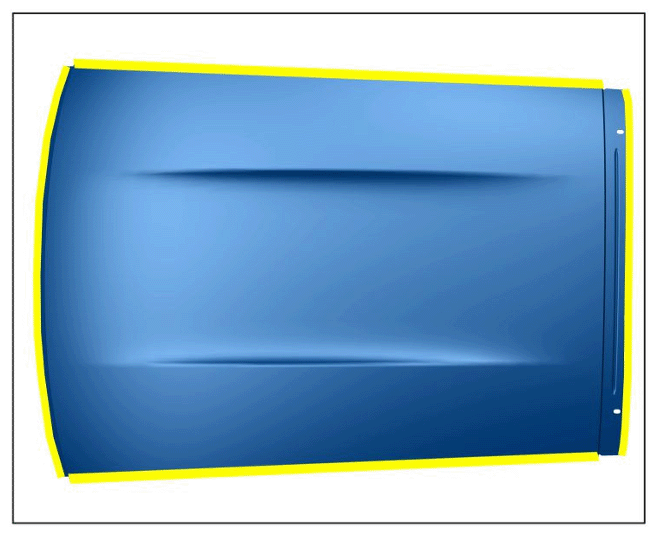

Bonding areas
Prepare marked areas for bonding with window adhesive.
> 6X00IN Working with Porsche 2-component window adhesive

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

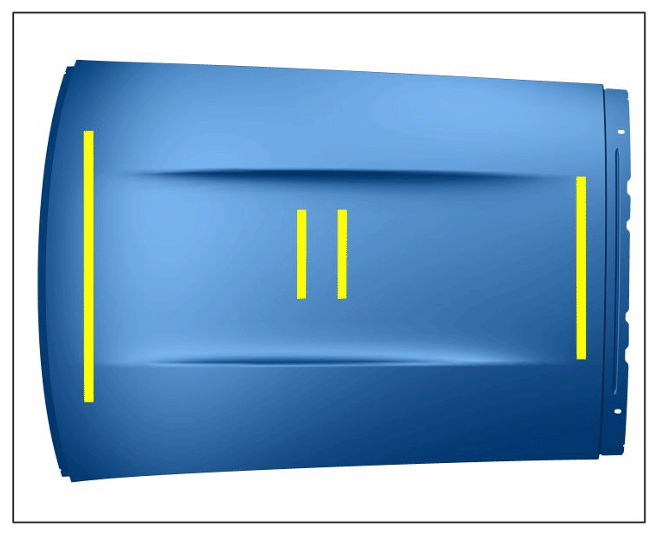

Window adhesive

Information

The help of another person is required.
Fit in roof and secure it to the body.
Punch holes for flow-form rivets.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

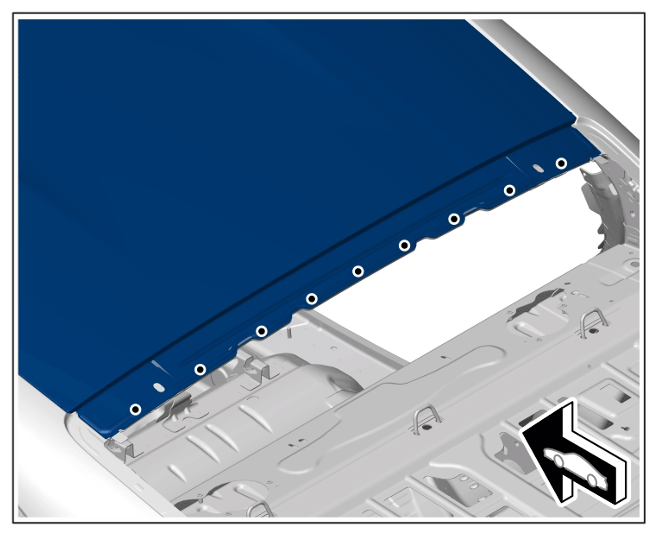

Rear of roof
Punch holes for flow-form rivets.
> 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

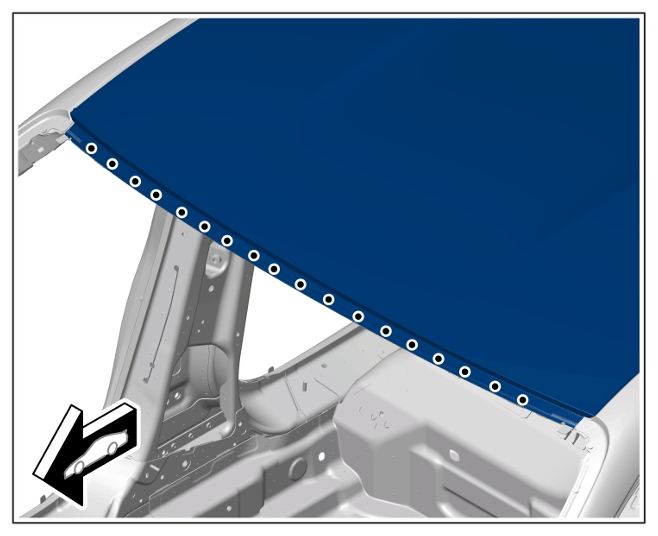

Front of roof

Information

The help of another person is required.
Remove the roof.
