Preparing Connection Areas Of The Body For Installing The Roof

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

De-burr connection points and prepare them for joining.
Prepare marked areas for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

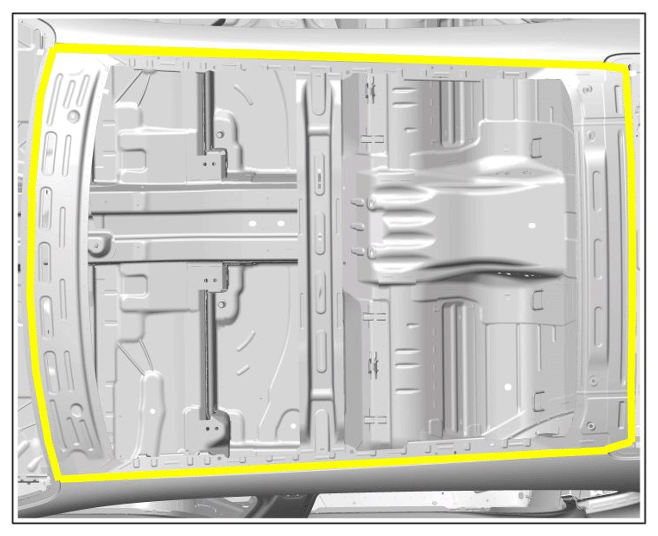

Bonding area
Prepare marked areas for bonding using Porsche 2-component window adhesive.
> 6X00IN Working with Porsche 2-component window adhesive

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

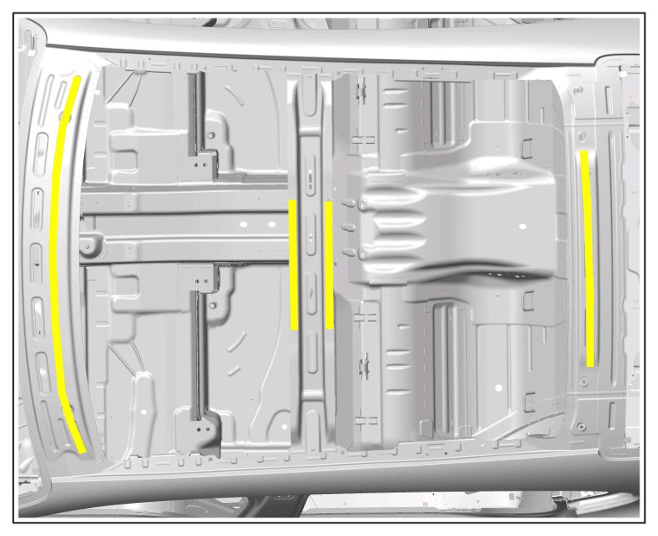

Bonding area of body
