Installing Roof

Information

• Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
• The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
• Do not begin bonding work until all materials and tools necessary for later repair work are available.

Information

The help of another person is required.

1. Install roof and check that it fits perfectly.

   Information

   The help of another person is required.

2. Remove the roof.

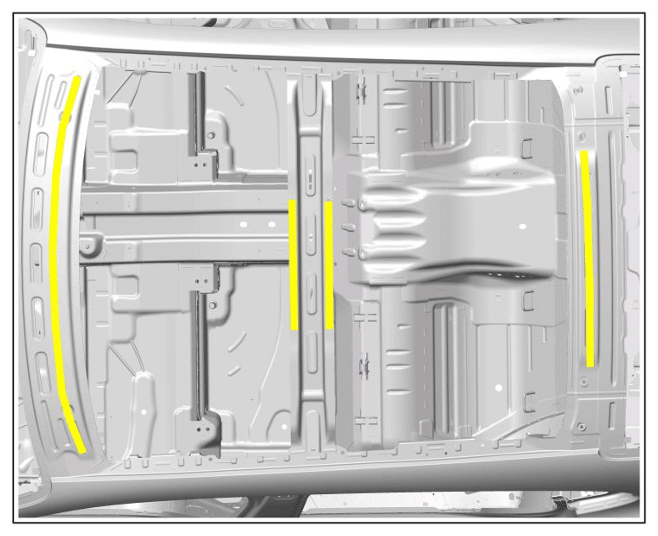

3. Apply Porsche 2-component window adhesive as a bead of adhesive on the joint area of the body.

   > 6X00IN Working with Porsche 2-component window adhesive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bonding area of body

4. Apply structural adhesive evenly on the roof.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 0.5 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

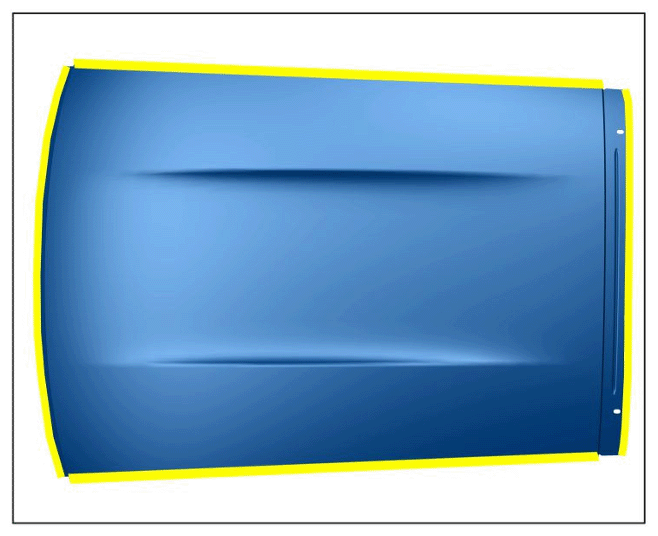

   Bonding areas

5. Apply structural adhesive evenly on the body.

   > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

   > Application depth 3 mm

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

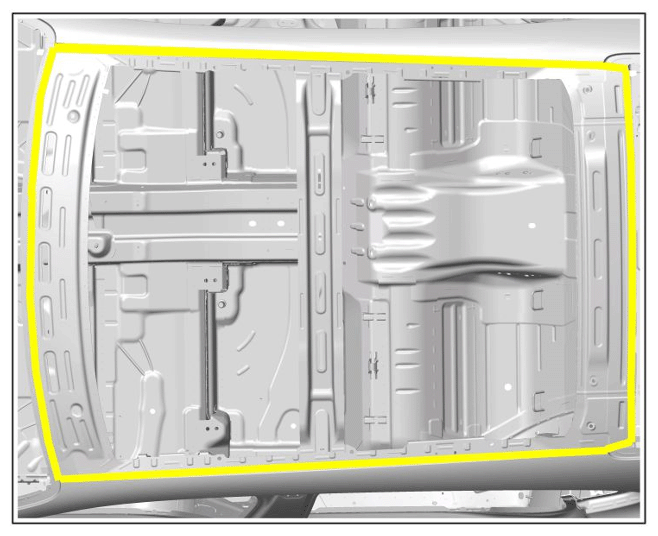

   Bonding area

   Information

   The help of another person is required.

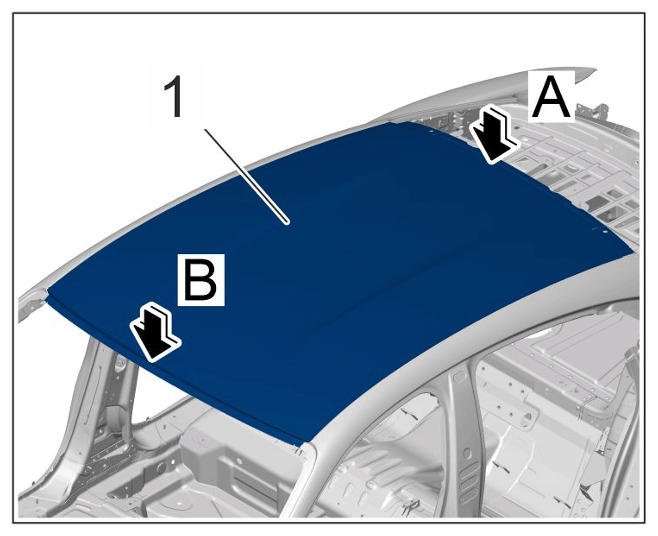

6. Position roof -1-  on the rear roof frame -arrow A-  and swivel it forward -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Roof

   Information

   Have this work carried out by an assistant whilst at the same time starting with the joining work.

7. Clean surface of roof in the side panel area.
   1. 7.1  Remove most of the excess adhesive using a plastic spatula or cloth.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

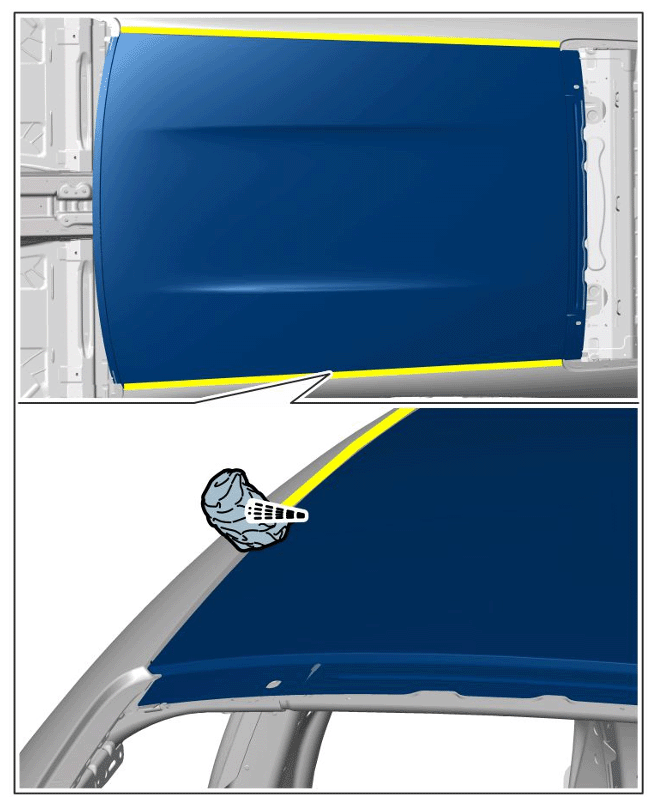

      Roof

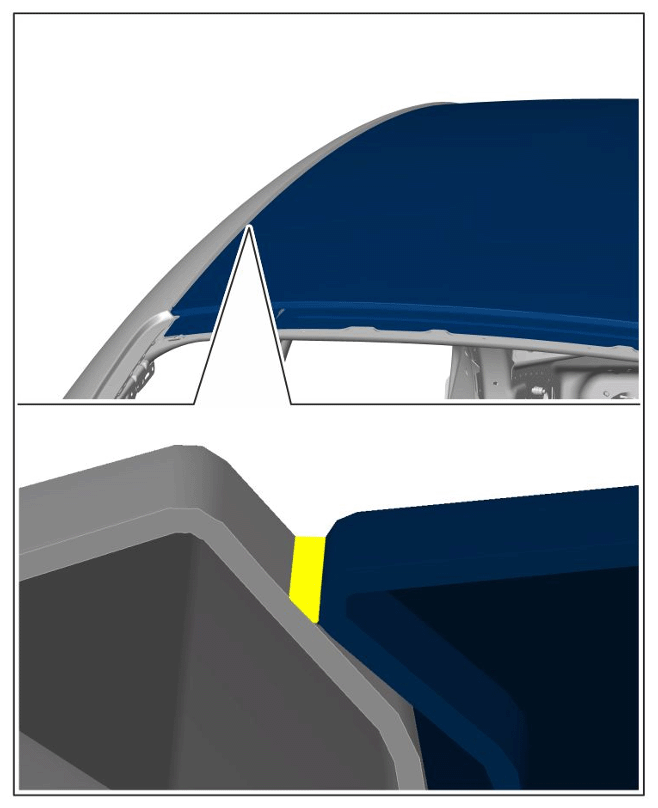

   2. 7.2  Finish cleaning visible surfaces with a cloth soaked in cleaning solution (acetone).

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Roof

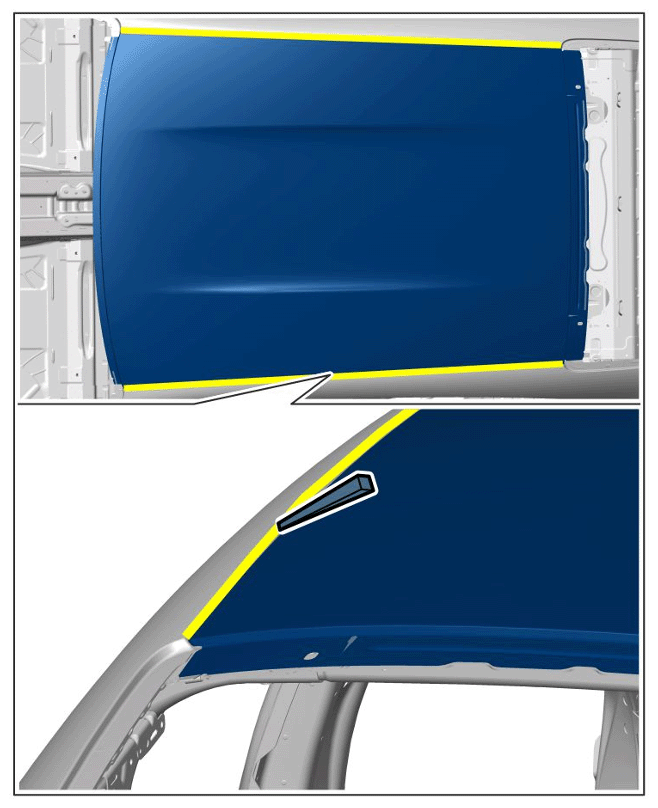

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bead

8. Rivet in the roof using > RIVET 9A7.008.607.00  .

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

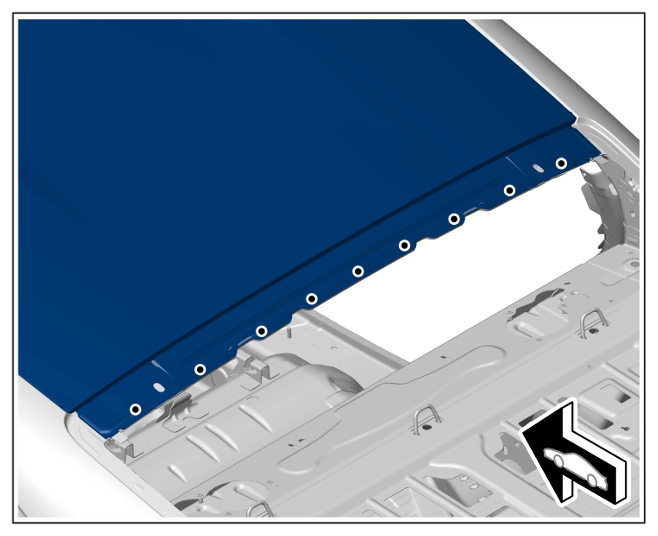

   Rear of roof

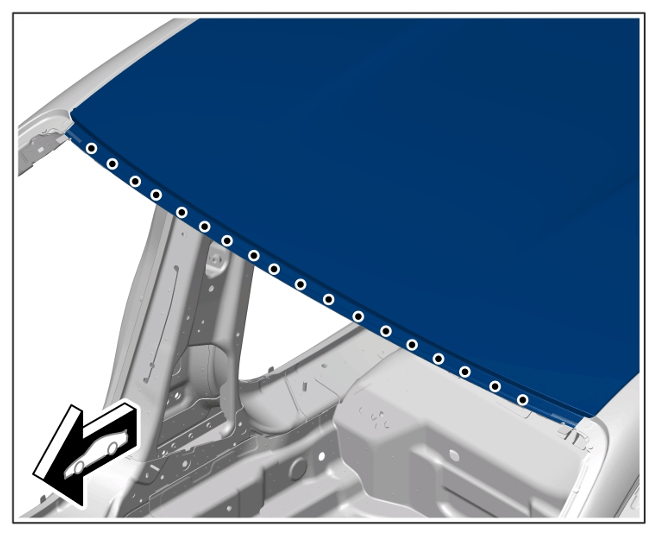

9. Rivet in the roof using > RIVET 9A7.008.473.00  .

   > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front of roof

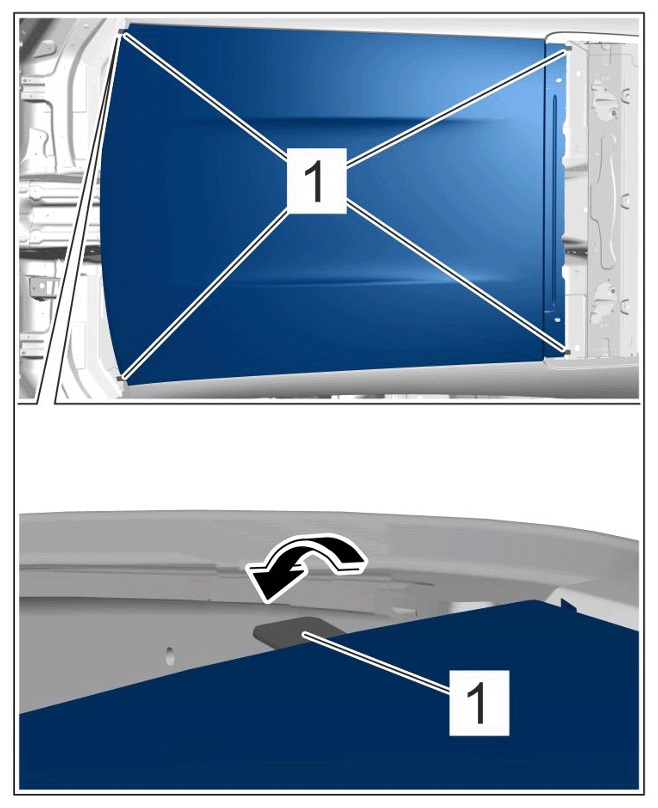

10. Bend fold flanges -1-  over by hand -arrow-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fold flange
