WM, 509555 Replacing Front End: Tools

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.
Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G15560391Courtesy of PORSCHE CARS NORTH AMERICA, INC.

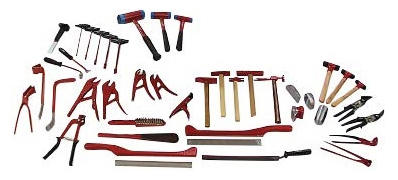

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G15560392Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G15560393Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring and straightening system General workshop equipment > VAS 811 017
G15560394Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G15560395Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6755
G15560396Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6545A
G15560397Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6530A
G15560398Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 821 101
G15560399Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G15560400Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G15560401Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G15560402Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G15560403Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G15560404Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G15560405Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G15560406Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G15560407Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compact Booster Vehicle-specific workshop equipment > VAS 6790
G15560408Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G15560409Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G15560410Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G15560411Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G15560412Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G15560413Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G15560414Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/2
G15560415Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/28
G15560416Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G15560417Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G15560418Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spot-weld remover General workshop equipment > VAS 882 001
G15560419Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G15560420Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G15560421Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6780
G15560422Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6598A
G15560423Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G15560424Courtesy of PORSCHE CARS NORTH AMERICA, INC.
100° countersink Vehicle-specific workshop equipment > VAS 6957
G15560425Courtesy of PORSCHE CARS NORTH AMERICA, INC.
FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G15560426Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G15560427Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G15560428Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compressed-air gun General workshop equipment > VAS 6648
G15560429Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G15560430Courtesy of PORSCHE CARS NORTH AMERICA, INC.

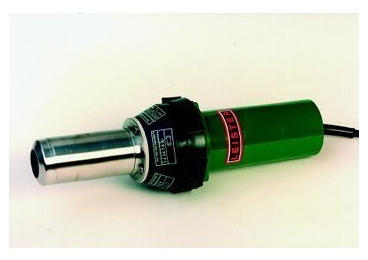

Hot-air blower General workshop equipment > V.A.G 1416
G15560431Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G15560432Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G15560433Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G15560434Courtesy of PORSCHE CARS NORTH AMERICA, INC.
