Installing Cowl Panel Cover

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

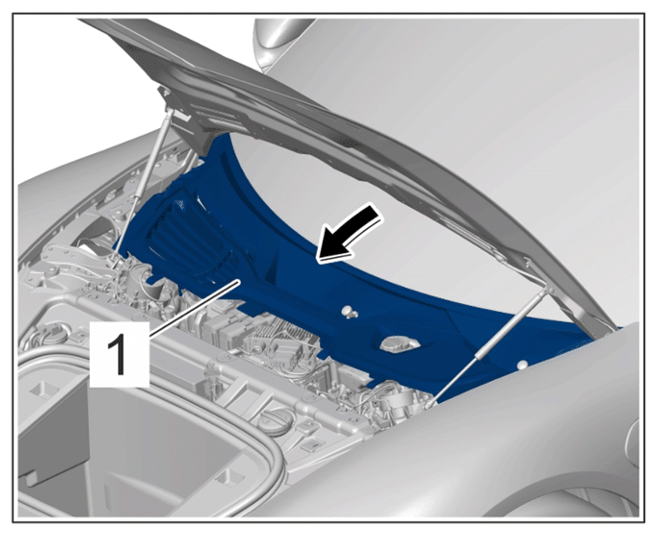

  1. Insert cowl panel cover -1-  into the plenum panel from above -arrow-  .
    G15560388Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cowl panel cover

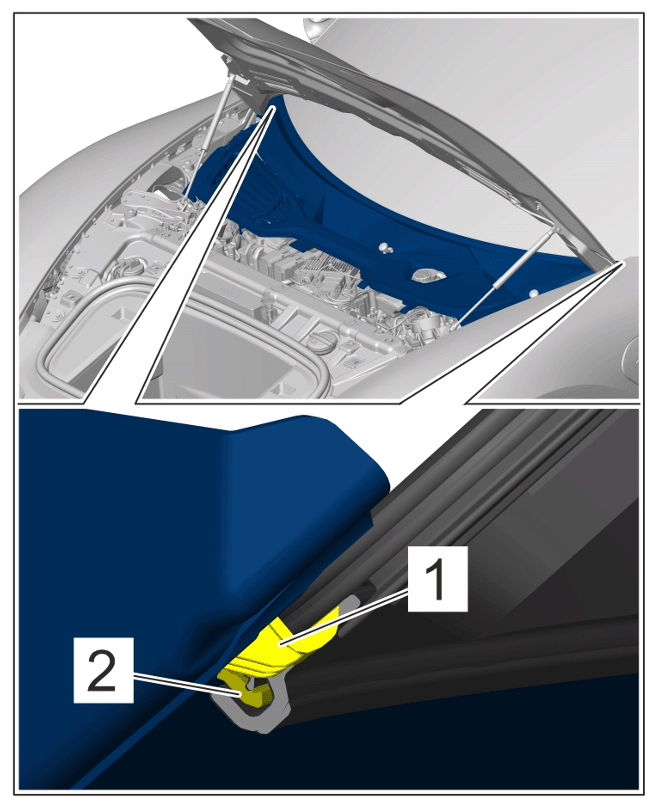

  2. Insert guide hooks -1-  at the left and right and clip cowl panel cover -2-  into the sealing strip all the way around.
    G15560389Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cowl panel cover

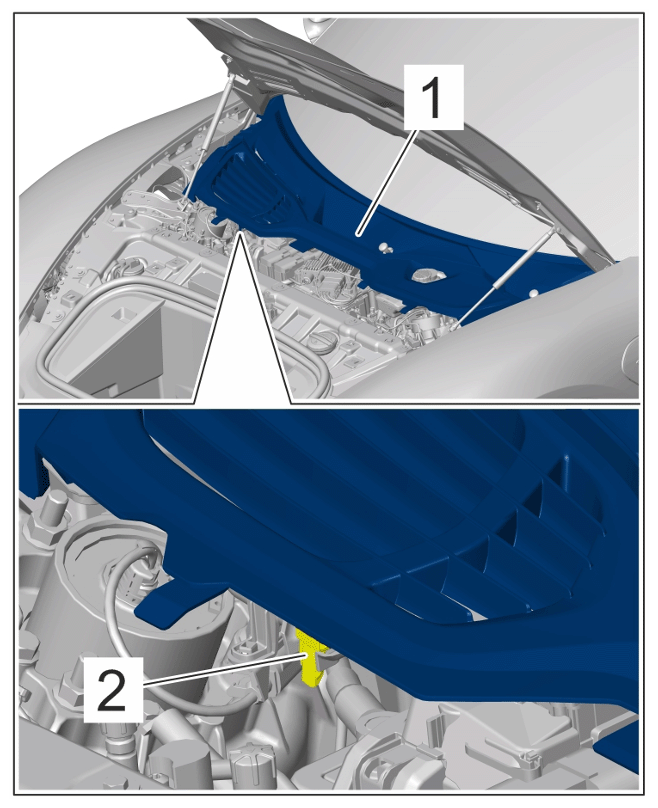

  3. Align cowl panel cover -1-  using positioning pin -2-  and clip it in.
    G15560390Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cowl panel cover
