Removing Front Side Member (Front Section)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

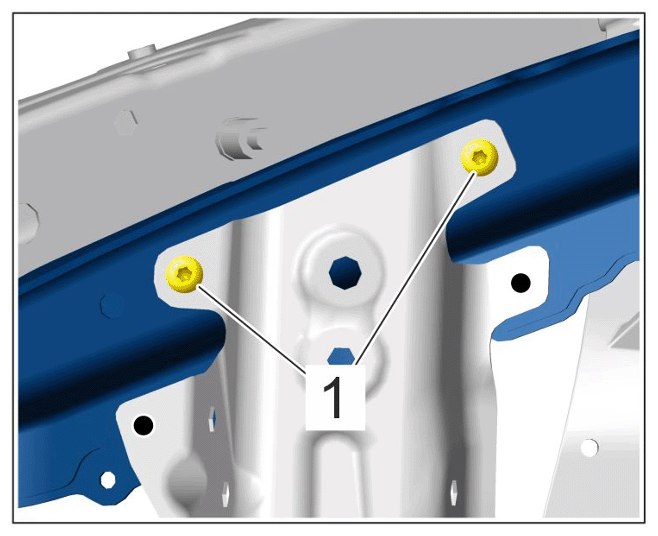

Unscrew self-tapping screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Self-tapping screw

Information

Since the replacement side member section has a tolerance of ± 1.5 mm in length, the cut on the vehicle may have to be adjusted.

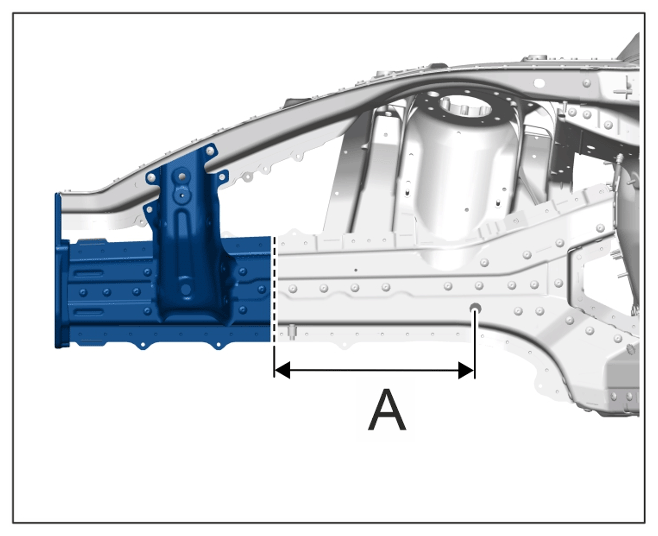

Mark and make cut -A - > Distance 326 mm .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cut

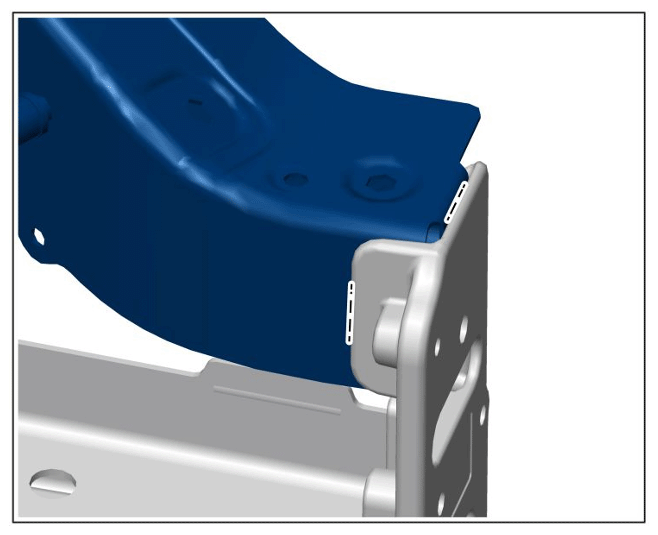

Grind down welded seams.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Welded seams
Loosen front side member (front section).

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front side member (front section)

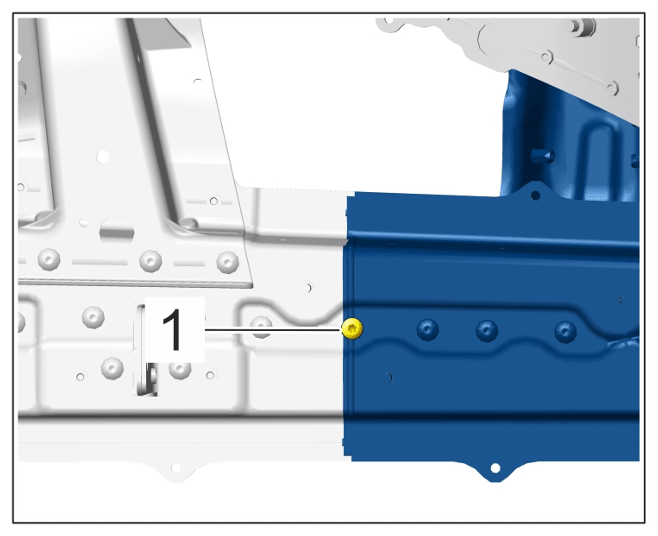

1. 4.1 Unscrew self-tapping screws -1- .
2. 4.2 Remove punch rivets using > VAS 852 001 - body dent removal system, aluminium and > VAS 6790 - compact booster .
  > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS
Heat bonding areas using > V.A.G 1416 - hot-air blower .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bonding areas on support
Remove front side member (front section).
