Preparing Connection Areas Of The Body For Installing The Front Side Member (Front Section)

WARNING: This page is about a different car, the 2023 Porsche Taycan and 2022 Porsche Taycan. However, it is still accessible from the selected car via links, so may be relevant.

Align the sealing surfaces and connections of the body.
De-burr connection points and prepare them for joining.
Drill bores on the longitudinal member. > Diameter 8 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

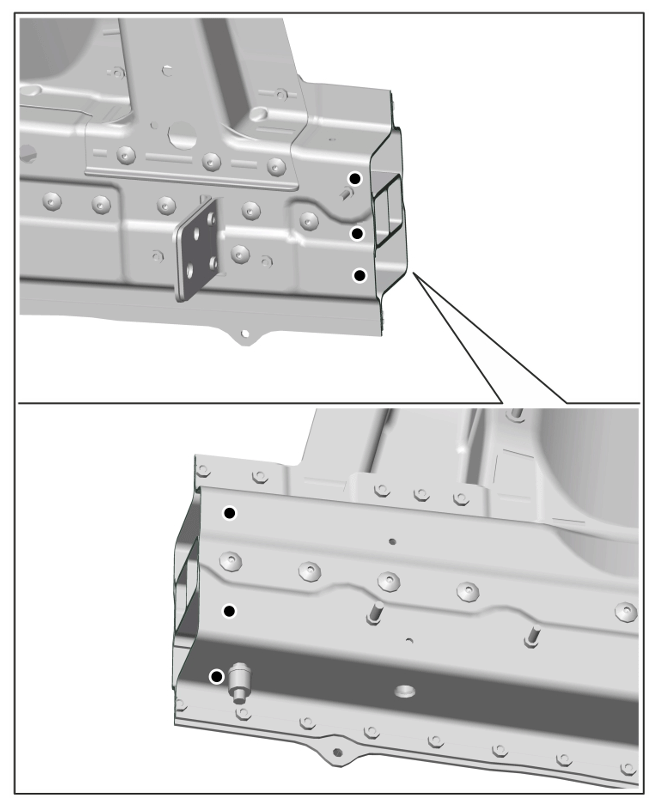

Bore holes
Prepare marked areas for bonding.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

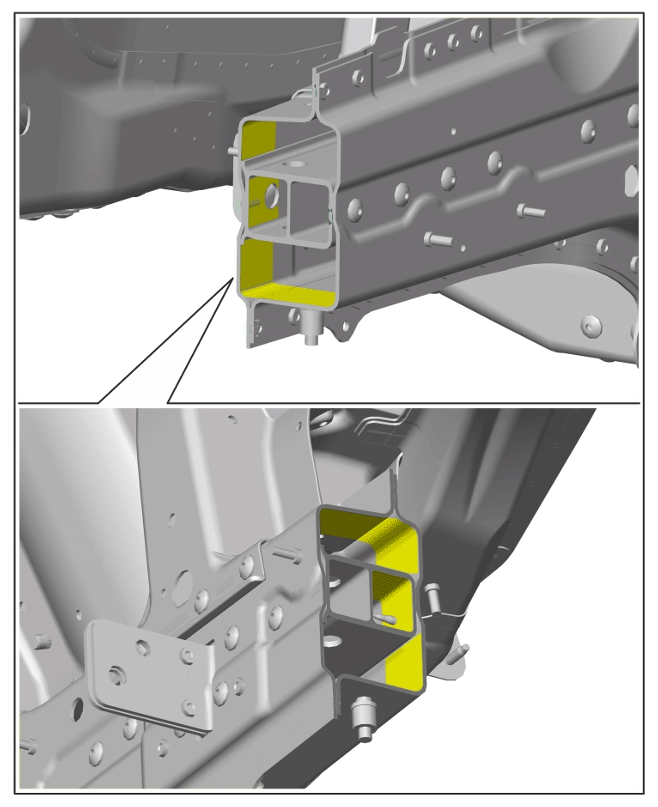

Inner bonding areas
Prepare (front part of) longitudinal member for wheel housing upper section for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

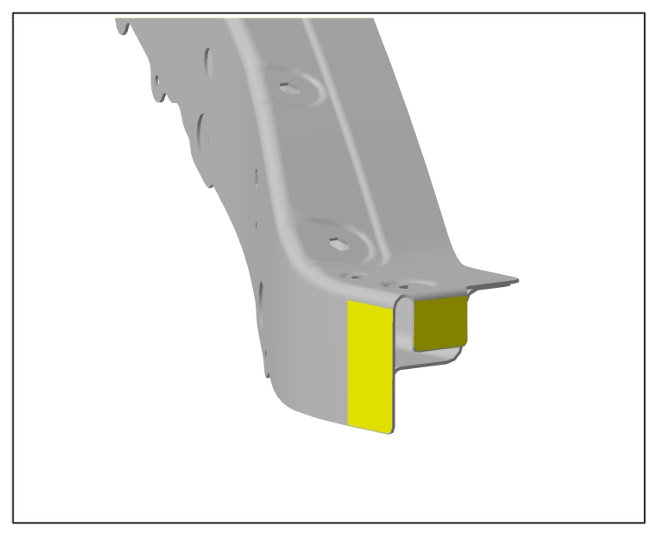

Front bonding areas
Prepare (front part of) longitudinal member for wheel housing upper section for bonding and riveting.
> 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE PAH.071.781.00

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

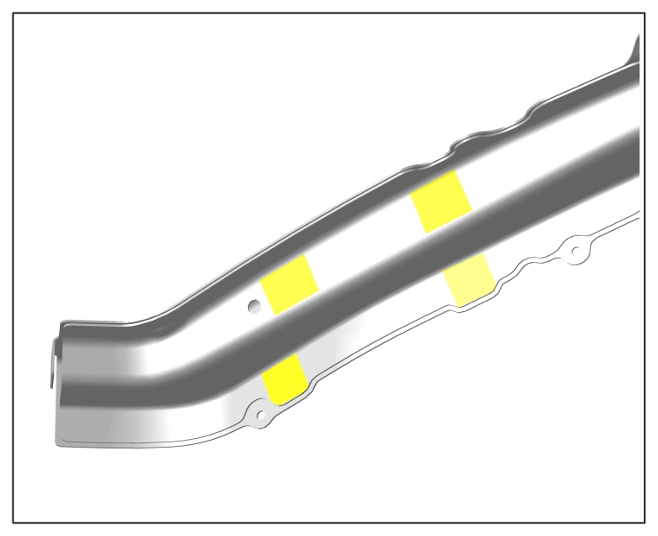

Centre bonding areas
